#include <ace_target_pe.h>

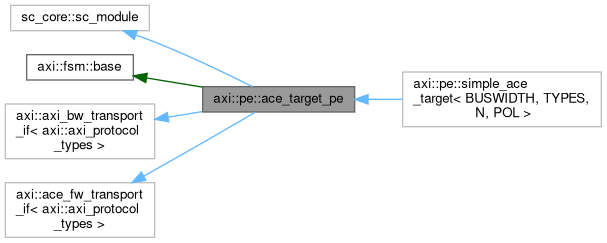

Inheritance diagram for axi::pe::ace_target_pe:

[legend]

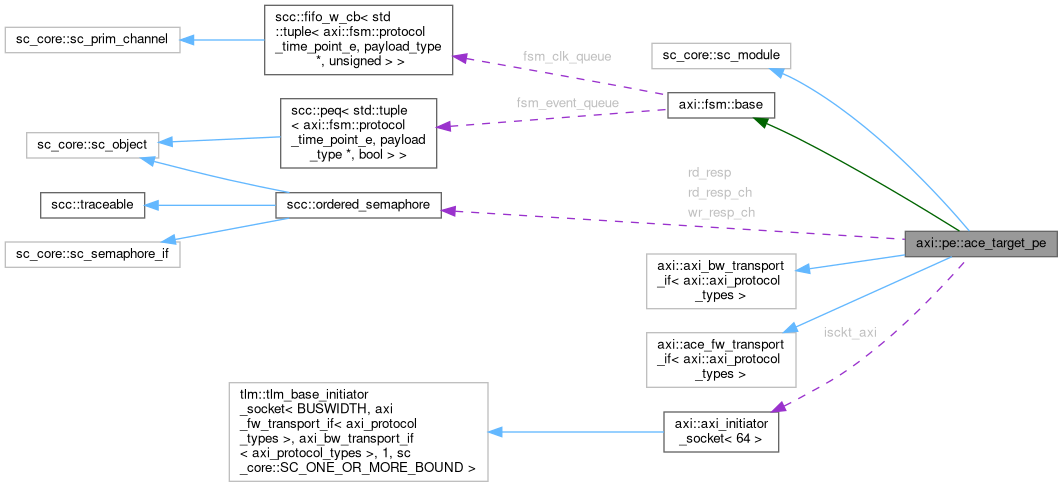

Collaboration diagram for axi::pe::ace_target_pe:

[legend]

Classes
struct	bw_intor_impl

Public Types
using	payload_type = axi::axi_protocol_types::tlm_payload_type
using	phase_type = axi::axi_protocol_types::tlm_phase_type

Public Member Functions
void	b_transport (payload_type &trans, sc_core::sc_time &t) override
tlm::tlm_sync_enum	nb_transport_fw (payload_type &trans, phase_type &phase, sc_core::sc_time &t) override
bool	get_direct_mem_ptr (payload_type &trans, tlm::tlm_dmi &dmi_data) override
unsigned int	transport_dbg (payload_type &trans) override
void	set_operation_cb (std::function< unsigned(payload_type &trans)> cb)
	Set the operation callback function.
void	operation_resp (payload_type &trans, unsigned clk_delay=0)
bool	is_active ()
const sc_core::sc_event &	tx_finish_event ()
tlm::tlm_sync_enum	nb_transport_bw (payload_type &trans, phase_type &phase, sc_core::sc_time &t) override
void	invalidate_direct_mem_ptr (sc_dt::uint64 start_range, sc_dt::uint64 end_range) override
	ace_target_pe (const sc_core::sc_module_name &nm, size_t transfer_width)
void	set_bw_interface (axi::axi_bw_transport_if< axi_protocol_types > *ifs)
void	snoop (payload_type &trans)

Public Attributes
sc_core::sc_in< bool >	clk_i {"clk_i"}
axi::axi_initiator_socket< 64 >	isckt_axi {"isckt_axi"}
sc_core::sc_port< tlm::scc::pe::intor_fw_nb, 1, sc_core::SC_ZERO_OR_MORE_BOUND >	fw_o {"fw_o"}
sc_core::sc_export< tlm::scc::pe::intor_bw_nb >	bw_i {"bw_i"}
cci::cci_param< int >	rd_resp_delay {"rd_resp_delay", 0}
	the latency between read request and response phase. Will be overwritten by the return of the callback function (if registered) -> RIV
cci::cci_param< int >	wr_resp_delay {"wr_resp_delay", 0}
	the latency between write request and response phase. Will be overwritten by the return of the callback function (if registered) -> BV

Protected Member Functions
	ace_target_pe (ace_target_pe const &)=delete
	ace_target_pe (ace_target_pe &&)=delete
ace_target_pe &	operator= (ace_target_pe const &)=delete
ace_target_pe &	operator= (ace_target_pe &&)=delete
void	end_of_elaboration () override
void	start_of_simulation () override
void	fsm_clk_method ()
fsm::fsm_handle *	create_fsm_handle () override
void	setup_callbacks (fsm::fsm_handle *) override
unsigned	operations_callback (payload_type &trans)
void	nb_fw (payload_type &trans, const phase_type &phase)
Protected Member Functions inherited from axi::fsm::base
	base (size_t transfer_width, bool coherent=false, axi::fsm::protocol_time_point_e wr_start=axi::fsm::RequestPhaseBeg)
	the constructor
virtual	~base ()
	the destructor
tlm::tlm_sync_enum	nb_fw (payload_type &trans, phase_type const &phase, sc_core::sc_time &t)
	triggers the FSM based on TLM phases in the forward path. Should be called from np_transport_fw of the respective derived class
tlm::tlm_sync_enum	nb_bw (payload_type &trans, phase_type const &phase, sc_core::sc_time &t)
	triggers the FSM based on TLM phases in the backward path. Should be called from np_transport_bw of the respective derived class
axi::fsm::fsm_handle *	find_or_create (payload_type *gp=nullptr, bool ace=false)
	retrieve the FSM handle based on the transaction passed. If non exist one will be created
void	process_fsm_event ()
	processes the fsm_event_queue and triggers FSM aligned
void	process_fsm_clk_queue ()
	processes the fsm_clk_queue and triggers the FSM accordingly. Should be registered as rising-edge clock callback
void	schedule (axi::fsm::protocol_time_point_e e, tlm::scc::tlm_gp_shared_ptr &gp, unsigned cycles)
	processes the fsm_sched_queue and propagates events to fsm_clk_queue. Should be registered as falling-edge clock callback
void	schedule (axi::fsm::protocol_time_point_e e, payload_type *gp, unsigned cycles)
void	schedule (axi::fsm::protocol_time_point_e e, tlm::scc::tlm_gp_shared_ptr &gp, sc_core::sc_time delay, bool syncronize=false)
	processes the fsm_sched_queue and propagates events to fsm_clk_queue. Should be registered as falling-edge clock callback
void	schedule (axi::fsm::protocol_time_point_e e, payload_type *gp, sc_core::sc_time delay, bool syncronize=false)
void	react (axi::fsm::protocol_time_point_e event, tlm::scc::tlm_gp_shared_ptr &trans)
	triggers the FSM with event and given transaction
void	react (axi::fsm::protocol_time_point_e event, payload_type *trans)
void	react (axi::fsm::protocol_time_point_e, axi::fsm::fsm_handle *)

Protected Attributes
axi::axi_bw_transport_if< axi_protocol_types > *	socket_bw {nullptr}
std::function< unsigned(payload_type &trans)>	operation_cb
sc_core::sc_fifo< payload_type * >	rd_resp_fifo {1}
sc_core::sc_fifo< payload_type * >	wr_resp_fifo {1}
sc_core::sc_fifo< std::tuple< fsm::fsm_handle *, axi::fsm::protocol_time_point_e > >	wr_resp_beat_fifo {128}
sc_core::sc_fifo< std::tuple< fsm::fsm_handle *, axi::fsm::protocol_time_point_e > >	rd_resp_beat_fifo {128}
scc::ordered_semaphore	rd_resp {1}
scc::ordered_semaphore	wr_resp_ch {1}
scc::ordered_semaphore	rd_resp_ch {1}
sc_core::sc_clock *	clk_if {nullptr}
std::unique_ptr< bw_intor_impl >	bw_intor
std::array< unsigned, 3 >	outstanding_cnt {{0, 0, 0}}
tlm_utils::peq_with_cb_and_phase< ace_target_pe >	fw_peq {this, &ace_target_pe::nb_fw}
std::unordered_set< unsigned >	active_rdresp_id
Protected Attributes inherited from axi::fsm::base
::scc::peq< std::tuple< axi::fsm::protocol_time_point_e, payload_type *, bool > >	fsm_event_queue
::scc::fifo_w_cb< std::tuple< axi::fsm::protocol_time_point_e, payload_type *, unsigned > >	fsm_clk_queue
sc_core::sc_process_handle	fsm_clk_queue_hndl
size_t	transfer_width_in_bytes
const axi::fsm::protocol_time_point_e	wr_start
const bool	coherent
std::unordered_map< payload_type , axi::fsm::fsm_handle >	active_fsm
std::deque< axi::fsm::fsm_handle * >	idle_fsm
std::vector< std::unique_ptr< axi::fsm::fsm_handle > >	allocated_fsm
std::string	instance_name
sc_core::sc_event	finish_evt

Additional Inherited Members
Protected Types inherited from axi::fsm::base
using	payload_type = axi::axi_protocol_types::tlm_payload_type
	aliases used in the class
using	phase_type = axi::axi_protocol_types::tlm_phase_type

Detailed Description

the target protocol engine base class

Definition at line 41 of file ace_target_pe.h.

Member Typedef Documentation

◆ payload_type

using axi::pe::ace_target_pe::payload_type = axi::axi_protocol_types::tlm_payload_type

Definition at line 48 of file ace_target_pe.h.

◆ phase_type

using axi::pe::ace_target_pe::phase_type = axi::axi_protocol_types::tlm_phase_type

Definition at line 49 of file ace_target_pe.h.

Constructor & Destructor Documentation

◆ ace_target_pe()

ace_target_pe::ace_target_pe	(	const sc_core::sc_module_name &	nm,
		size_t	transfer_width )

explicit

the constructor. Protected as it should only be called by derived classes

Parameters

port
transfer_width

Definition at line 59 of file ace_target_pe.cpp.

Member Function Documentation

◆ b_transport()

void ace_target_pe::b_transport	(	payload_type &	trans,
		sc_core::sc_time &	t )

override

Definition at line 88 of file ace_target_pe.cpp.

◆ create_fsm_handle()

fsm_handle * ace_target_pe::create_fsm_handle ( )

overrideprotectedvirtual

See also: base::create_fsm_handle()

Implements axi::fsm::base.

Definition at line 121 of file ace_target_pe.cpp.

◆ end_of_elaboration()

void ace_target_pe::end_of_elaboration ( )

overrideprotected

Definition at line 75 of file ace_target_pe.cpp.

◆ fsm_clk_method()

void axi::pe::ace_target_pe::fsm_clk_method ( )

inlineprotected

Definition at line 145 of file ace_target_pe.h.

◆ get_direct_mem_ptr()

bool ace_target_pe::get_direct_mem_ptr	(	payload_type &	trans,
		tlm::tlm_dmi &	dmi_data )

override

Definition at line 114 of file ace_target_pe.cpp.

◆ invalidate_direct_mem_ptr()

void axi::pe::ace_target_pe::invalidate_direct_mem_ptr	(	sc_dt::uint64	start_range,
		sc_dt::uint64	end_range )

inlineoverride

Definition at line 114 of file ace_target_pe.h.

◆ is_active()

bool axi::pe::ace_target_pe::is_active ( )

inline

returns true if any transaction is still in flight

Returns

Definition at line 100 of file ace_target_pe.h.

◆ nb_fw()

void axi::pe::ace_target_pe::nb_fw	(	payload_type &	trans,
		const phase_type &	phase )

inlineprotected

Definition at line 169 of file ace_target_pe.h.

◆ nb_transport_bw()

tlm::tlm_sync_enum axi::pe::ace_target_pe::nb_transport_bw	(	payload_type &	trans,
		phase_type &	phase,
		sc_core::sc_time &	t )

inlineoverride

Definition at line 109 of file ace_target_pe.h.

◆ nb_transport_fw()

tlm_sync_enum ace_target_pe::nb_transport_fw	(	payload_type &	trans,
		phase_type &	phase,
		sc_core::sc_time &	t )

override

Definition at line 98 of file ace_target_pe.cpp.

◆ operation_resp()

void axi::pe::ace_target_pe::operation_resp	(	payload_type &	trans,
		unsigned	clk_delay = 0 )

start the response from an operation callback if latency is not set by the callback

Parameters

trans
sync

◆ set_bw_interface()

void axi::pe::ace_target_pe::set_bw_interface ( axi::axi_bw_transport_if< axi_protocol_types > * ifs )

inline

Definition at line 126 of file ace_target_pe.h.

◆ set_operation_cb()

void axi::pe::ace_target_pe::set_operation_cb ( std::function< unsigned(payload_type &trans)> cb )

inline

Set the operation callback function.

This callback is invoked once a transaction arrives. This function is not allowed to block and returns the latency of the operation i.e. the duration until the reponse phase starts

Todo: refine API

Parameters

cb	the callback function

Definition at line 87 of file ace_target_pe.h.

◆ setup_callbacks()

void ace_target_pe::setup_callbacks ( fsm::fsm_handle * fsm_hndl )

overrideprotectedvirtual

See also: base::setup_callbacks(fsm::fsm_handle*)

Implements axi::fsm::base.

Definition at line 123 of file ace_target_pe.cpp.

◆ snoop()

void ace_target_pe::snoop ( payload_type & trans )

Definition at line 180 of file ace_target_pe.cpp.

◆ start_of_simulation()

void ace_target_pe::start_of_simulation ( )

overrideprotected

Definition at line 77 of file ace_target_pe.cpp.

◆ transport_dbg()

unsigned int ace_target_pe::transport_dbg ( payload_type & trans )

override

Definition at line 119 of file ace_target_pe.cpp.

◆ tx_finish_event()

const sc_core::sc_event & axi::pe::ace_target_pe::tx_finish_event ( )

inline

get the event being notfied upon the finishing of a transaction

Returns: reference to sc_event

Definition at line 106 of file ace_target_pe.h.

Member Data Documentation

◆ active_rdresp_id

std::unordered_set<unsigned> axi::pe::ace_target_pe::active_rdresp_id

protected

Definition at line 174 of file ace_target_pe.h.

◆ bw_i

sc_core::sc_export<tlm::scc::pe::intor_bw_nb> axi::pe::ace_target_pe::bw_i {"bw_i"}

Definition at line 58 of file ace_target_pe.h.

◆ bw_intor

std::unique_ptr<bw_intor_impl> axi::pe::ace_target_pe::bw_intor

protected

Definition at line 166 of file ace_target_pe.h.

◆ clk_i

sc_core::sc_in<bool> axi::pe::ace_target_pe::clk_i {"clk_i"}

Definition at line 51 of file ace_target_pe.h.

◆ clk_if

sc_core::sc_clock* axi::pe::ace_target_pe::clk_if {nullptr}

protected

Definition at line 165 of file ace_target_pe.h.

◆ fw_o

sc_core::sc_port<tlm::scc::pe::intor_fw_nb, 1, sc_core::SC_ZERO_OR_MORE_BOUND> axi::pe::ace_target_pe::fw_o {"fw_o"}

Definition at line 56 of file ace_target_pe.h.

◆ fw_peq

tlm_utils::peq_with_cb_and_phase<ace_target_pe> axi::pe::ace_target_pe::fw_peq {this, &ace_target_pe::nb_fw}

protected

Definition at line 173 of file ace_target_pe.h.

◆ isckt_axi

axi::axi_initiator_socket<64> axi::pe::ace_target_pe::isckt_axi {"isckt_axi"}

Definition at line 54 of file ace_target_pe.h.

◆ operation_cb

std::function<unsigned(payload_type& trans)> axi::pe::ace_target_pe::operation_cb

protected

Definition at line 158 of file ace_target_pe.h.

◆ outstanding_cnt

std::array<unsigned, 3> axi::pe::ace_target_pe::outstanding_cnt {{0, 0, 0}}

protected

Definition at line 167 of file ace_target_pe.h.

◆ rd_resp

scc::ordered_semaphore axi::pe::ace_target_pe::rd_resp {1}

protected

Definition at line 163 of file ace_target_pe.h.

◆ rd_resp_beat_fifo

sc_core::sc_fifo<std::tuple<fsm::fsm_handle*, axi::fsm::protocol_time_point_e> > axi::pe::ace_target_pe::rd_resp_beat_fifo {128}

protected

Definition at line 162 of file ace_target_pe.h.

◆ rd_resp_ch

scc::ordered_semaphore axi::pe::ace_target_pe::rd_resp_ch {1}

protected

Definition at line 163 of file ace_target_pe.h.

◆ rd_resp_delay

cci::cci_param<int> axi::pe::ace_target_pe::rd_resp_delay {"rd_resp_delay", 0}

the latency between read request and response phase. Will be overwritten by the return of the callback function (if registered) -> RIV

Definition at line 63 of file ace_target_pe.h.

◆ rd_resp_fifo

sc_core::sc_fifo<payload_type*> axi::pe::ace_target_pe::rd_resp_fifo {1}

protected

Definition at line 159 of file ace_target_pe.h.

◆ socket_bw

axi::axi_bw_transport_if<axi_protocol_types>* axi::pe::ace_target_pe::socket_bw {nullptr}

protected

Definition at line 157 of file ace_target_pe.h.

◆ wr_resp_beat_fifo

sc_core::sc_fifo<std::tuple<fsm::fsm_handle*, axi::fsm::protocol_time_point_e> > axi::pe::ace_target_pe::wr_resp_beat_fifo {128}

protected

Definition at line 161 of file ace_target_pe.h.

◆ wr_resp_ch

scc::ordered_semaphore axi::pe::ace_target_pe::wr_resp_ch {1}

protected

Definition at line 163 of file ace_target_pe.h.

◆ wr_resp_delay

cci::cci_param<int> axi::pe::ace_target_pe::wr_resp_delay {"wr_resp_delay", 0}

the latency between write request and response phase. Will be overwritten by the return of the callback function (if registered) -> BV

Definition at line 68 of file ace_target_pe.h.

◆ wr_resp_fifo

sc_core::sc_fifo<payload_type*> axi::pe::ace_target_pe::wr_resp_fifo {1}

protected

Definition at line 159 of file ace_target_pe.h.

The documentation for this class was generated from the following files:

/home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/pe/ace_target_pe.h
/home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/pe/ace_target_pe.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ payload_type

◆ phase_type

Constructor & Destructor Documentation

◆ ace_target_pe()

Member Function Documentation

◆ b_transport()

◆ create_fsm_handle()

◆ end_of_elaboration()

◆ fsm_clk_method()

◆ get_direct_mem_ptr()

◆ invalidate_direct_mem_ptr()

◆ is_active()

◆ nb_fw()

◆ nb_transport_bw()

◆ nb_transport_fw()

◆ operation_resp()

◆ set_bw_interface()

◆ set_operation_cb()

◆ setup_callbacks()

◆ snoop()

◆ start_of_simulation()

◆ transport_dbg()

◆ tx_finish_event()

Member Data Documentation

◆ active_rdresp_id

◆ bw_i

◆ bw_intor

◆ clk_i

◆ clk_if

◆ fw_o

◆ fw_peq

◆ isckt_axi

◆ operation_cb

◆ outstanding_cnt

◆ rd_resp

◆ rd_resp_beat_fifo

◆ rd_resp_ch

◆ rd_resp_delay

◆ rd_resp_fifo

◆ socket_bw

◆ wr_resp_beat_fifo

◆ wr_resp_ch

◆ wr_resp_delay

◆ wr_resp_fifo
