axi::pe::ace_target_pe::bw_intor_impl Struct Reference

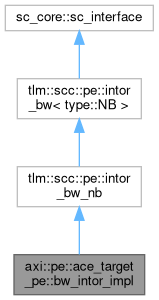

Inheritance diagram for axi::pe::ace_target_pe::bw_intor_impl:

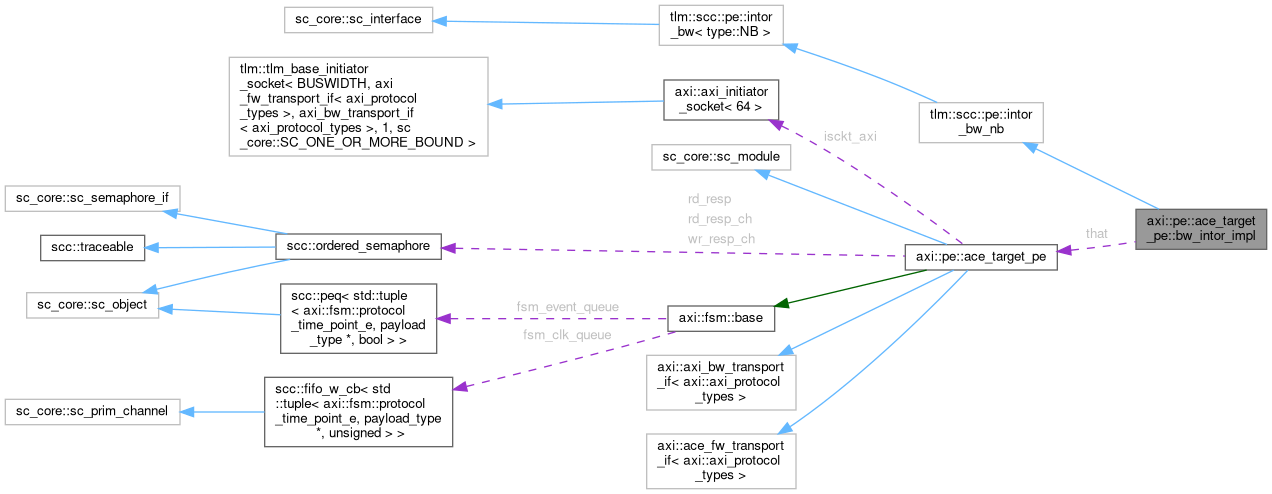

Collaboration diagram for axi::pe::ace_target_pe::bw_intor_impl:

Public Member Functions
	bw_intor_impl (ace_target_pe *that)
unsigned	transport (tlm::tlm_generic_payload &payload) override

Public Attributes
ace_target_pe *const	that

Detailed Description

Definition at line 39 of file ace_target_pe.cpp.

Constructor & Destructor Documentation

bw_intor_impl()

axi::pe::ace_target_pe::bw_intor_impl::bw_intor_impl ( ace_target_pe * that )

inline

Definition at line 41 of file ace_target_pe.cpp.

Member Function Documentation

transport()

unsigned axi::pe::ace_target_pe::bw_intor_impl::transport ( tlm::tlm_generic_payload & payload )

inlineoverridevirtual

callback from the pe top if there is a backward transaction e.g. a snoop

Parameters

payload

object with (optional) extensions return the latency until reponse is sent by the protocol engine

Implements tlm::scc::pe::intor_bw< type::NB >.

Definition at line 43 of file ace_target_pe.cpp.

Member Data Documentation

that

ace_target_pe* const axi::pe::ace_target_pe::bw_intor_impl::that

Definition at line 40 of file ace_target_pe.cpp.

---

The documentation for this struct was generated from the following file:

• /home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/pe/ace_target_pe.cpp
