axi::fsm::base Struct Reference

base class of all AXITLM based adapters and interfaces. More...

#include <base.h>

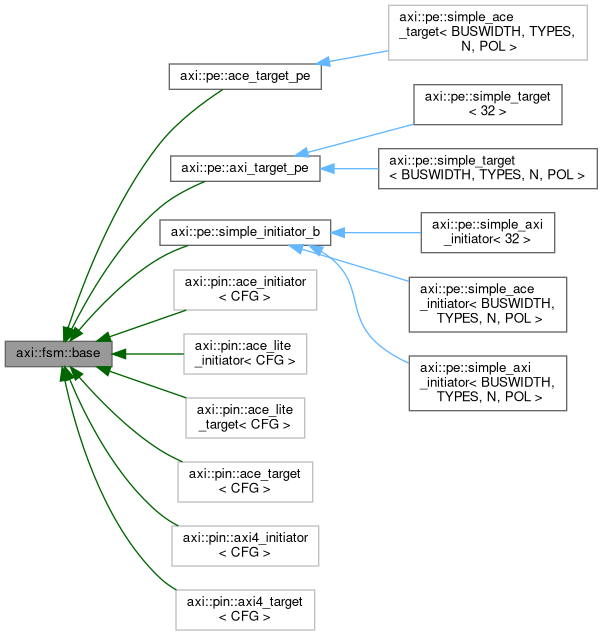

Inheritance diagram for axi::fsm::base:

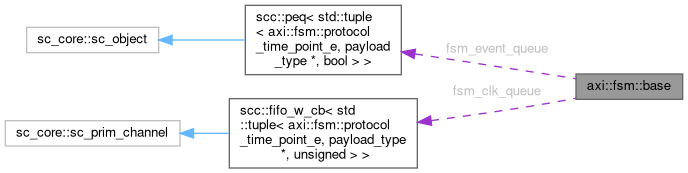

Collaboration diagram for axi::fsm::base:

Public Types
using	payload_type = axi::axi_protocol_types::tlm_payload_type
	aliases used in the class
using	phase_type = axi::axi_protocol_types::tlm_phase_type

Public Member Functions
	base (size_t transfer_width, bool coherent=false, axi::fsm::protocol_time_point_e wr_start=axi::fsm::RequestPhaseBeg)
	the constructor
virtual	~base ()
	the destructor
tlm::tlm_sync_enum	nb_fw (payload_type &trans, phase_type const &phase, sc_core::sc_time &t)
	triggers the FSM based on TLM phases in the forward path. Should be called from np_transport_fw of the respective derived class
tlm::tlm_sync_enum	nb_bw (payload_type &trans, phase_type const &phase, sc_core::sc_time &t)
	triggers the FSM based on TLM phases in the backward path. Should be called from np_transport_bw of the respective derived class
axi::fsm::fsm_handle *	find_or_create (payload_type *gp=nullptr, bool ace=false)
	retrieve the FSM handle based on the transaction passed. If non exist one will be created
virtual axi::fsm::fsm_handle *	create_fsm_handle ()=0
	function to create a fsm_handle. Needs to be implemented by the derived class
virtual void	setup_callbacks (axi::fsm::fsm_handle *)=0
	this function is called to add the callbacks to the fsm handle during creation. Needs to be implemented by the derived classes describing reactions upon entering and leaving a state
void	process_fsm_event ()
	processes the fsm_event_queue and triggers FSM aligned
void	process_fsm_clk_queue ()
	processes the fsm_clk_queue and triggers the FSM accordingly. Should be registered as rising-edge clock callback
void	schedule (axi::fsm::protocol_time_point_e e, tlm::scc::tlm_gp_shared_ptr &gp, unsigned cycles)
	processes the fsm_sched_queue and propagates events to fsm_clk_queue. Should be registered as falling-edge clock callback
void	schedule (axi::fsm::protocol_time_point_e e, payload_type *gp, unsigned cycles)
void	schedule (axi::fsm::protocol_time_point_e e, tlm::scc::tlm_gp_shared_ptr &gp, sc_core::sc_time delay, bool syncronize=false)
	processes the fsm_sched_queue and propagates events to fsm_clk_queue. Should be registered as falling-edge clock callback
void	schedule (axi::fsm::protocol_time_point_e e, payload_type *gp, sc_core::sc_time delay, bool syncronize=false)
void	react (axi::fsm::protocol_time_point_e event, tlm::scc::tlm_gp_shared_ptr &trans)
	triggers the FSM with event and given transaction
void	react (axi::fsm::protocol_time_point_e event, payload_type *trans)
void	react (axi::fsm::protocol_time_point_e, axi::fsm::fsm_handle *)

Public Attributes
::scc::peq< std::tuple< axi::fsm::protocol_time_point_e, payload_type *, bool > >	fsm_event_queue
::scc::fifo_w_cb< std::tuple< axi::fsm::protocol_time_point_e, payload_type *, unsigned > >	fsm_clk_queue
sc_core::sc_process_handle	fsm_clk_queue_hndl
size_t	transfer_width_in_bytes
const axi::fsm::protocol_time_point_e	wr_start
const bool	coherent
std::unordered_map< payload_type *, axi::fsm::fsm_handle * >	active_fsm
std::deque< axi::fsm::fsm_handle * >	idle_fsm
std::vector< std::unique_ptr< axi::fsm::fsm_handle > >	allocated_fsm
std::string	instance_name
sc_core::sc_event	finish_evt

Detailed Description

base class of all AXITLM based adapters and interfaces.

Definition at line 43 of file base.h.

Member Typedef Documentation

payload_type

using axi::fsm::base::payload_type = axi::axi_protocol_types::tlm_payload_type

aliases used in the class

Definition at line 45 of file base.h.

phase_type

using axi::fsm::base::phase_type = axi::axi_protocol_types::tlm_phase_type

Definition at line 46 of file base.h.

Constructor & Destructor Documentation

base()

axi::fsm::base::base	(	size_t	transfer_width,
		bool	coherent = false,
		axi::fsm::protocol_time_point_e	wr_start = axi::fsm::RequestPhaseBeg )

the constructor

Parameters

transfer_width	the bus width in bytes
wr_start	the phase to start a write access

Definition at line 43 of file base.cpp.

~base()

virtual axi::fsm::base::~base ( )

inlinevirtual

the destructor

Definition at line 57 of file base.h.

Member Function Documentation

create_fsm_handle()

virtual axi::fsm::fsm_handle * axi::fsm::base::create_fsm_handle ( )

pure virtual

function to create a fsm_handle. Needs to be implemented by the derived class

Returns

Implemented in axi::pe::ace_target_pe, axi::pe::axi_target_pe, and axi::pe::simple_initiator_b.

find_or_create()

fsm_handle * axi::fsm::base::find_or_create	(	payload_type *	gp = nullptr,
		bool	ace = false )

retrieve the FSM handle based on the transaction passed. If non exist one will be created

Parameters

gp	the pointer to the payload
ace	flag indicating if the ACE protocaol has to be supported

Returns

handle to the FSM

Definition at line 65 of file base.cpp.

nb_bw()

tlm_sync_enum axi::fsm::base::nb_bw	(	payload_type &	trans,
		phase_type const &	phase,
		sc_core::sc_time &	t )

triggers the FSM based on TLM phases in the backward path. Should be called from np_transport_bw of the respective derived class

Parameters

trans	the tlm generic payload
phase	the protocol phase
t	the annotated time for LT environments

Returns

the sync enum denoting if the transaction has been updated or just accepted

Definition at line 235 of file base.cpp.

nb_fw()

tlm_sync_enum axi::fsm::base::nb_fw	(	payload_type &	trans,
		phase_type const &	phase,
		sc_core::sc_time &	t )

triggers the FSM based on TLM phases in the forward path. Should be called from np_transport_fw of the respective derived class

Parameters

trans	the tlm generic payload
phase	the protocol phase
t	the annotated time for LT environments

Returns

the sync enum denoting if the transaction has been updated or just accepted

Definition at line 190 of file base.cpp.

process_fsm_clk_queue()

void axi::fsm::base::process_fsm_clk_queue

(

)

processes the fsm_clk_queue and triggers the FSM accordingly. Should be registered as rising-edge clock callback

Definition at line 107 of file base.cpp.

process_fsm_event()

void axi::fsm::base::process_fsm_event

(

)

processes the fsm_event_queue and triggers FSM aligned

Definition at line 97 of file base.cpp.

react() [1/3]

void axi::fsm::base::react ( axi::fsm::protocol_time_point_e event, payload_type * trans )

inline

Definition at line 138 of file base.h.

react() [2/3]

void axi::fsm::base::react ( axi::fsm::protocol_time_point_e event, tlm::scc::tlm_gp_shared_ptr & trans )

inline

triggers the FSM with event and given transaction

Parameters

event	the event triggering the FSM
trans	the AXITLM transaction the event belongs to

Definition at line 134 of file base.h.

react() [3/3]

void axi::fsm::base::react	(	axi::fsm::protocol_time_point_e	event,
		axi::fsm::fsm_handle *	fsm_hndl )

Definition at line 128 of file base.cpp.

schedule() [1/4]

void axi::fsm::base::schedule ( axi::fsm::protocol_time_point_e e, payload_type * gp, sc_core::sc_time delay, bool syncronize = false )

inline

Definition at line 123 of file base.h.

schedule() [2/4]

void axi::fsm::base::schedule ( axi::fsm::protocol_time_point_e e, payload_type * gp, unsigned cycles )

inline

Definition at line 110 of file base.h.

schedule() [3/4]

void axi::fsm::base::schedule ( axi::fsm::protocol_time_point_e e, tlm::scc::tlm_gp_shared_ptr & gp, sc_core::sc_time delay, bool syncronize = false )

inline

processes the fsm_sched_queue and propagates events to fsm_clk_queue. Should be registered as falling-edge clock callback

Definition at line 119 of file base.h.

schedule() [4/4]

void axi::fsm::base::schedule ( axi::fsm::protocol_time_point_e e, tlm::scc::tlm_gp_shared_ptr & gp, unsigned cycles )

inline

processes the fsm_sched_queue and propagates events to fsm_clk_queue. Should be registered as falling-edge clock callback

Definition at line 107 of file base.h.

setup_callbacks()

virtual void axi::fsm::base::setup_callbacks ( axi::fsm::fsm_handle * )

pure virtual

this function is called to add the callbacks to the fsm handle during creation. Needs to be implemented by the derived classes describing reactions upon entering and leaving a state

Parameters

the	handle of the active fsm

Implemented in axi::pe::ace_target_pe, axi::pe::axi_target_pe, and axi::pe::simple_initiator_b.

Member Data Documentation

active_fsm

std::unordered_map<payload_type*, axi::fsm::fsm_handle*> axi::fsm::base::active_fsm

Definition at line 163 of file base.h.

allocated_fsm

std::vector<std::unique_ptr<axi::fsm::fsm_handle> > axi::fsm::base::allocated_fsm

Definition at line 167 of file base.h.

coherent

const bool axi::fsm::base::coherent

Definition at line 161 of file base.h.

finish_evt

sc_core::sc_event axi::fsm::base::finish_evt

Definition at line 171 of file base.h.

fsm_clk_queue

::scc::fifo_w_cb<std::tuple<axi::fsm::protocol_time_point_e, payload_type*, unsigned> > axi::fsm::base::fsm_clk_queue

Definition at line 153 of file base.h.

fsm_clk_queue_hndl

sc_core::sc_process_handle axi::fsm::base::fsm_clk_queue_hndl

Definition at line 155 of file base.h.

fsm_event_queue

::scc::peq<std::tuple<axi::fsm::protocol_time_point_e, payload_type*, bool> > axi::fsm::base::fsm_event_queue

Definition at line 151 of file base.h.

idle_fsm

std::deque<axi::fsm::fsm_handle*> axi::fsm::base::idle_fsm

Definition at line 165 of file base.h.

instance_name

std::string axi::fsm::base::instance_name

Definition at line 169 of file base.h.

transfer_width_in_bytes

size_t axi::fsm::base::transfer_width_in_bytes

Definition at line 157 of file base.h.

wr_start

const axi::fsm::protocol_time_point_e axi::fsm::base::wr_start

Definition at line 159 of file base.h.

---

The documentation for this struct was generated from the following files:

• /home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/fsm/base.h
• /home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/fsm/base.cpp
