#include <axi_target_pe.h>

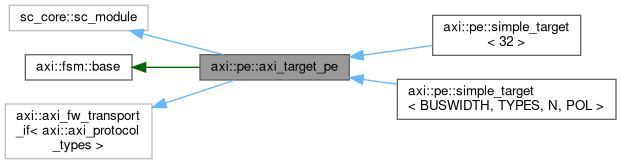

Inheritance diagram for axi::pe::axi_target_pe:

[legend]

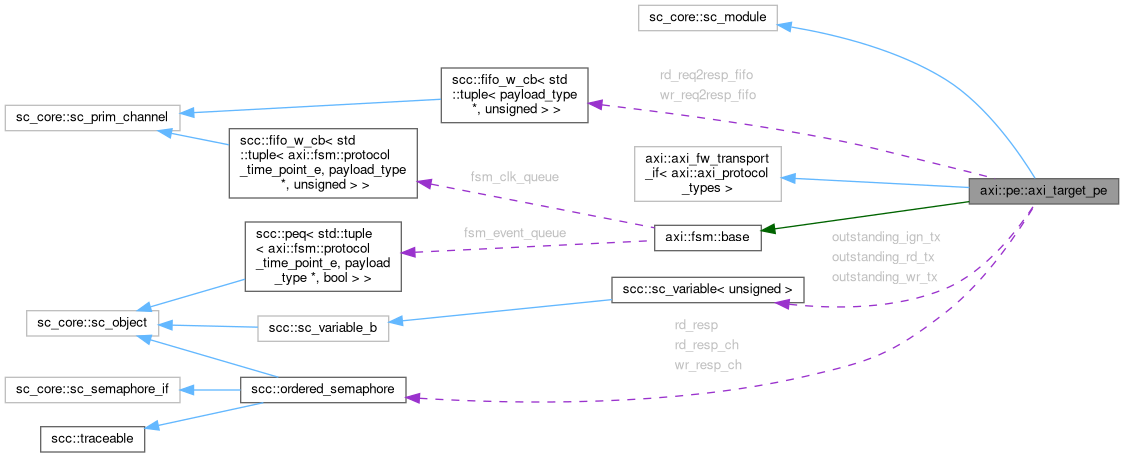

Collaboration diagram for axi::pe::axi_target_pe:

[legend]

Classes
struct	bw_intor_impl

Public Types
using	payload_type = axi::axi_protocol_types::tlm_payload_type
using	phase_type = axi::axi_protocol_types::tlm_phase_type

Public Member Functions
void	b_transport (payload_type &trans, sc_core::sc_time &t) override
tlm::tlm_sync_enum	nb_transport_fw (payload_type &trans, phase_type &phase, sc_core::sc_time &t) override
bool	get_direct_mem_ptr (payload_type &trans, tlm::tlm_dmi &dmi_data) override
unsigned int	transport_dbg (payload_type &trans) override
void	set_operation_cb (std::function< unsigned(payload_type &trans)> cb)
	Set the operation callback function.
void	operation_resp (payload_type &trans, unsigned clk_delay=0)
bool	is_active ()
const sc_core::sc_event &	tx_finish_event ()
	axi_target_pe (const sc_core::sc_module_name &nm, size_t transfer_width, flavor_e flavor=flavor_e::AXI)
void	set_bw_interface (axi::axi_bw_transport_if< axi_protocol_types > *ifs)
unsigned	getAllOutStandingTx () const

Public Attributes
sc_core::sc_in< bool >	clk_i {"clk_i"}
sc_core::sc_port< tlm::scc::pe::intor_fw_nb, 1, sc_core::SC_ZERO_OR_MORE_BOUND >	fw_o {"fw_o"}
sc_core::sc_export< tlm::scc::pe::intor_bw_nb >	bw_i {"bw_i"}
cci::cci_param< unsigned >	max_outstanding_tx {"max_outstanding_tx", 0}
	the number of supported outstanding transactions. If this limit is reached the target starts to do back-pressure
cci::cci_param< bool >	rd_data_interleaving {"rd_data_interleaving", true}
	enable data interleaving on read responses if rd_data_beat_delay is greater than 0
cci::cci_param< int >	wr_data_accept_delay {"wr_data_accept_delay", 0}
	the latency between between BEGIN(_PARTIAL)_REQ and END(_PARTIAL)_REQ (AWVALID to AWREADY and WVALID to WREADY) -> AWR, WBR
cci::cci_param< int >	rd_addr_accept_delay {"rd_addr_accept_delay", 0}
	the latency between between BEGIN_REQ and END_REQ (ARVALID to ARREADY) -> APR
cci::cci_param< int >	rd_data_beat_delay {"rd_data_beat_delay", 0}
	the latency between between END(_PARTIAL)_RESP and BEGIN(_PARTIAL)_RESP (RREADY to RVALID) -> RBV
cci::cci_param< int >	rd_resp_delay {"rd_resp_delay", 0}
	the latency between request and response phase. Will be overwritten by the return of the callback function (if registered) -> RIV
cci::cci_param< int >	wr_resp_delay {"wr_resp_delay", 0}
	the latency between request and response phase. Will be overwritten by the return of the callback function (if registered) -> BV

Protected Member Functions
	axi_target_pe (axi_target_pe const &)=delete
	axi_target_pe (axi_target_pe &&)=delete
axi_target_pe &	operator= (axi_target_pe const &)=delete
axi_target_pe &	operator= (axi_target_pe &&)=delete
void	end_of_elaboration () override
void	start_of_simulation () override
void	fsm_clk_method ()
fsm::fsm_handle *	create_fsm_handle () override
void	setup_callbacks (fsm::fsm_handle *) override
unsigned	operations_callback (payload_type &trans)
void	process_req2resp_fifos ()
void	start_rd_resp_thread ()
void	start_wr_resp_thread ()
void	send_wr_resp_beat_thread ()
void	send_rd_resp_beat_thread ()
scc::sc_variable< unsigned > &	getOutStandingTx (tlm::tlm_command cmd)
scc::sc_variable< unsigned > const &	getOutStandingTx (tlm::tlm_command cmd) const
void	nb_fw (payload_type &trans, const phase_type &phase)
Protected Member Functions inherited from axi::fsm::base
	base (size_t transfer_width, bool coherent=false, axi::fsm::protocol_time_point_e wr_start=axi::fsm::RequestPhaseBeg)
	the constructor
virtual	~base ()
	the destructor
tlm::tlm_sync_enum	nb_fw (payload_type &trans, phase_type const &phase, sc_core::sc_time &t)
	triggers the FSM based on TLM phases in the forward path. Should be called from np_transport_fw of the respective derived class
tlm::tlm_sync_enum	nb_bw (payload_type &trans, phase_type const &phase, sc_core::sc_time &t)
	triggers the FSM based on TLM phases in the backward path. Should be called from np_transport_bw of the respective derived class
axi::fsm::fsm_handle *	find_or_create (payload_type *gp=nullptr, bool ace=false)
	retrieve the FSM handle based on the transaction passed. If non exist one will be created
void	process_fsm_event ()
	processes the fsm_event_queue and triggers FSM aligned
void	process_fsm_clk_queue ()
	processes the fsm_clk_queue and triggers the FSM accordingly. Should be registered as rising-edge clock callback
void	schedule (axi::fsm::protocol_time_point_e e, tlm::scc::tlm_gp_shared_ptr &gp, unsigned cycles)
	processes the fsm_sched_queue and propagates events to fsm_clk_queue. Should be registered as falling-edge clock callback
void	schedule (axi::fsm::protocol_time_point_e e, payload_type *gp, unsigned cycles)
void	schedule (axi::fsm::protocol_time_point_e e, tlm::scc::tlm_gp_shared_ptr &gp, sc_core::sc_time delay, bool syncronize=false)
	processes the fsm_sched_queue and propagates events to fsm_clk_queue. Should be registered as falling-edge clock callback
void	schedule (axi::fsm::protocol_time_point_e e, payload_type *gp, sc_core::sc_time delay, bool syncronize=false)
void	react (axi::fsm::protocol_time_point_e event, tlm::scc::tlm_gp_shared_ptr &trans)
	triggers the FSM with event and given transaction
void	react (axi::fsm::protocol_time_point_e event, payload_type *trans)
void	react (axi::fsm::protocol_time_point_e, axi::fsm::fsm_handle *)

Protected Attributes
axi::axi_bw_transport_if< axi_protocol_types > *	socket_bw {nullptr}
std::function< unsigned(payload_type &trans)>	operation_cb
scc::fifo_w_cb< std::tuple< payload_type *, unsigned > >	rd_req2resp_fifo {"rd_req2resp_fifo"}
scc::fifo_w_cb< std::tuple< payload_type *, unsigned > >	wr_req2resp_fifo {"wr_req2resp_fifo"}
sc_core::sc_fifo< payload_type * >	rd_resp_fifo {1}
sc_core::sc_fifo< payload_type * >	wr_resp_fifo {1}
sc_core::sc_fifo< std::tuple< fsm::fsm_handle *, axi::fsm::protocol_time_point_e > >	wr_resp_beat_fifo {128}
sc_core::sc_fifo< std::tuple< fsm::fsm_handle *, axi::fsm::protocol_time_point_e > >	rd_resp_beat_fifo {128}
scc::ordered_semaphore	rd_resp {1}
scc::ordered_semaphore	wr_resp_ch {1}
scc::ordered_semaphore	rd_resp_ch {1}
sc_core::sc_clock *	clk_if {nullptr}
std::unique_ptr< bw_intor_impl >	bw_intor
std::array< unsigned, 3 >	outstanding_cnt {{0, 0, 0}}
scc::sc_variable< unsigned >	outstanding_rd_tx {"OutstandingRd", 0}
scc::sc_variable< unsigned >	outstanding_wr_tx {"OutstandingWr", 0}
scc::sc_variable< unsigned >	outstanding_ign_tx {"OutstandingIgn", 0}
std::array< tlm::tlm_generic_payload *, 3 >	stalled_tx {nullptr, nullptr, nullptr}
std::array< axi::fsm::protocol_time_point_e, 3 >	stalled_tp {{axi::fsm::CB_CNT, axi::fsm::CB_CNT, axi::fsm::CB_CNT}}
tlm_utils::peq_with_cb_and_phase< axi_target_pe >	fw_peq {this, &axi_target_pe::nb_fw}
std::unordered_set< unsigned >	active_rdresp_id
Protected Attributes inherited from axi::fsm::base
::scc::peq< std::tuple< axi::fsm::protocol_time_point_e, payload_type *, bool > >	fsm_event_queue
::scc::fifo_w_cb< std::tuple< axi::fsm::protocol_time_point_e, payload_type *, unsigned > >	fsm_clk_queue
sc_core::sc_process_handle	fsm_clk_queue_hndl
size_t	transfer_width_in_bytes
const axi::fsm::protocol_time_point_e	wr_start
const bool	coherent
std::unordered_map< payload_type , axi::fsm::fsm_handle >	active_fsm
std::deque< axi::fsm::fsm_handle * >	idle_fsm
std::vector< std::unique_ptr< axi::fsm::fsm_handle > >	allocated_fsm
std::string	instance_name
sc_core::sc_event	finish_evt

Additional Inherited Members
Protected Types inherited from axi::fsm::base
using	payload_type = axi::axi_protocol_types::tlm_payload_type
	aliases used in the class
using	phase_type = axi::axi_protocol_types::tlm_phase_type

Detailed Description

the target protocol engine base class

Definition at line 47 of file axi_target_pe.h.

Member Typedef Documentation

◆ payload_type

using axi::pe::axi_target_pe::payload_type = axi::axi_protocol_types::tlm_payload_type

Definition at line 51 of file axi_target_pe.h.

◆ phase_type

using axi::pe::axi_target_pe::phase_type = axi::axi_protocol_types::tlm_phase_type

Definition at line 52 of file axi_target_pe.h.

Constructor & Destructor Documentation

◆ axi_target_pe()

axi_target_pe::axi_target_pe	(	const sc_core::sc_module_name &	nm,
		size_t	transfer_width,
		flavor_e	flavor = flavor_e::AXI )

explicit

the constructor. Protected as it should only be called by derived classes

Parameters

port
transfer_width
flavor(axi,ace,aceLite)

Definition at line 57 of file axi_target_pe.cpp.

Member Function Documentation

◆ b_transport()

void axi_target_pe::b_transport	(	payload_type &	trans,
		sc_core::sc_time &	t )

override

Definition at line 86 of file axi_target_pe.cpp.

◆ create_fsm_handle()

fsm_handle * axi_target_pe::create_fsm_handle ( )

overrideprotectedvirtual

See also: base::create_fsm_handle()

Implements axi::fsm::base.

Definition at line 108 of file axi_target_pe.cpp.

◆ end_of_elaboration()

void axi_target_pe::end_of_elaboration ( )

overrideprotected

Definition at line 79 of file axi_target_pe.cpp.

◆ fsm_clk_method()

void axi::pe::axi_target_pe::fsm_clk_method ( )

inlineprotected

Definition at line 160 of file axi_target_pe.h.

◆ get_direct_mem_ptr()

bool axi_target_pe::get_direct_mem_ptr	(	payload_type &	trans,
		tlm::tlm_dmi &	dmi_data )

override

Definition at line 101 of file axi_target_pe.cpp.

◆ getAllOutStandingTx()

unsigned axi::pe::axi_target_pe::getAllOutStandingTx ( ) const

inline

Definition at line 143 of file axi_target_pe.h.

◆ getOutStandingTx() [1/2]

scc::sc_variable< unsigned > & axi::pe::axi_target_pe::getOutStandingTx ( tlm::tlm_command cmd )

inlineprotected

Definition at line 191 of file axi_target_pe.h.

◆ getOutStandingTx() [2/2]

scc::sc_variable< unsigned > const & axi::pe::axi_target_pe::getOutStandingTx ( tlm::tlm_command cmd ) const

inlineprotected

Definition at line 201 of file axi_target_pe.h.

◆ is_active()

bool axi::pe::axi_target_pe::is_active ( )

inline

returns true if any transaction is still in flight

Returns

Definition at line 123 of file axi_target_pe.h.

◆ nb_fw()

void axi::pe::axi_target_pe::nb_fw	(	payload_type &	trans,
		const phase_type &	phase )

inlineprotected

Definition at line 213 of file axi_target_pe.h.

◆ nb_transport_fw()

tlm_sync_enum axi_target_pe::nb_transport_fw	(	payload_type &	trans,
		phase_type &	phase,
		sc_core::sc_time &	t )

override

Definition at line 96 of file axi_target_pe.cpp.

◆ operation_resp()

void axi::pe::axi_target_pe::operation_resp	(	payload_type &	trans,
		unsigned	clk_delay = 0 )

start the response from an operation callback if latency is not set by the callback

Parameters

trans
sync

Definition at line 234 of file axi_target_pe.cpp.

◆ process_req2resp_fifos()

void axi::pe::axi_target_pe::process_req2resp_fifos ( )

protected

Definition at line 241 of file axi_target_pe.cpp.

◆ send_rd_resp_beat_thread()

void axi::pe::axi_target_pe::send_rd_resp_beat_thread ( )

protected

Definition at line 299 of file axi_target_pe.cpp.

◆ send_wr_resp_beat_thread()

void axi::pe::axi_target_pe::send_wr_resp_beat_thread ( )

protected

Definition at line 324 of file axi_target_pe.cpp.

◆ set_bw_interface()

void axi::pe::axi_target_pe::set_bw_interface ( axi::axi_bw_transport_if< axi_protocol_types > * ifs )

inline

Definition at line 141 of file axi_target_pe.h.

◆ set_operation_cb()

void axi::pe::axi_target_pe::set_operation_cb ( std::function< unsigned(payload_type &trans)> cb )

inline

Set the operation callback function.

This callback is invoked once a transaction arrives. This function is not allowed to block and returns the latency of the operation i.e. the duration until the reponse phase starts

Todo: refine API

Parameters

cb	the callback function

Definition at line 110 of file axi_target_pe.h.

◆ setup_callbacks()

void axi_target_pe::setup_callbacks ( fsm::fsm_handle * fsm_hndl )

overrideprotectedvirtual

See also: base::setup_callbacks(fsm::fsm_handle*)

Implements axi::fsm::base.

Definition at line 110 of file axi_target_pe.cpp.

◆ start_of_simulation()

void axi_target_pe::start_of_simulation ( )

overrideprotected

Definition at line 81 of file axi_target_pe.cpp.

◆ start_rd_resp_thread()

void axi::pe::axi_target_pe::start_rd_resp_thread ( )

protected

Definition at line 268 of file axi_target_pe.cpp.

◆ start_wr_resp_thread()

void axi::pe::axi_target_pe::start_wr_resp_thread ( )

protected

Definition at line 291 of file axi_target_pe.cpp.

◆ transport_dbg()

unsigned int axi_target_pe::transport_dbg ( payload_type & trans )

override

Definition at line 106 of file axi_target_pe.cpp.

◆ tx_finish_event()

const sc_core::sc_event & axi::pe::axi_target_pe::tx_finish_event ( )

inline

get the event being notfied upon the finishing of a transaction

Returns: reference to sc_event

Definition at line 129 of file axi_target_pe.h.

Member Data Documentation

◆ active_rdresp_id

std::unordered_set<unsigned> axi::pe::axi_target_pe::active_rdresp_id

protected

Definition at line 218 of file axi_target_pe.h.

◆ bw_i

sc_core::sc_export<tlm::scc::pe::intor_bw_nb> axi::pe::axi_target_pe::bw_i {"bw_i"}

Definition at line 58 of file axi_target_pe.h.

◆ bw_intor

std::unique_ptr<bw_intor_impl> axi::pe::axi_target_pe::bw_intor

protected

Definition at line 186 of file axi_target_pe.h.

◆ clk_i

sc_core::sc_in<bool> axi::pe::axi_target_pe::clk_i {"clk_i"}

Definition at line 54 of file axi_target_pe.h.

◆ clk_if

sc_core::sc_clock* axi::pe::axi_target_pe::clk_if {nullptr}

protected

Definition at line 185 of file axi_target_pe.h.

◆ fw_o

sc_core::sc_port<tlm::scc::pe::intor_fw_nb, 1, sc_core::SC_ZERO_OR_MORE_BOUND> axi::pe::axi_target_pe::fw_o {"fw_o"}

Definition at line 56 of file axi_target_pe.h.

◆ fw_peq

tlm_utils::peq_with_cb_and_phase<axi_target_pe> axi::pe::axi_target_pe::fw_peq {this, &axi_target_pe::nb_fw}

protected

Definition at line 217 of file axi_target_pe.h.

◆ max_outstanding_tx

cci::cci_param<unsigned> axi::pe::axi_target_pe::max_outstanding_tx {"max_outstanding_tx", 0}

the number of supported outstanding transactions. If this limit is reached the target starts to do back-pressure

Definition at line 64 of file axi_target_pe.h.

◆ operation_cb

std::function<unsigned(payload_type& trans)> axi::pe::axi_target_pe::operation_cb

protected

Definition at line 173 of file axi_target_pe.h.

◆ outstanding_cnt

std::array<unsigned, 3> axi::pe::axi_target_pe::outstanding_cnt {{0, 0, 0}}

protected

Definition at line 187 of file axi_target_pe.h.

◆ outstanding_ign_tx

scc::sc_variable<unsigned> axi::pe::axi_target_pe::outstanding_ign_tx {"OutstandingIgn", 0}

protected

Definition at line 190 of file axi_target_pe.h.

◆ outstanding_rd_tx

scc::sc_variable<unsigned> axi::pe::axi_target_pe::outstanding_rd_tx {"OutstandingRd", 0}

protected

Definition at line 188 of file axi_target_pe.h.

◆ outstanding_wr_tx

scc::sc_variable<unsigned> axi::pe::axi_target_pe::outstanding_wr_tx {"OutstandingWr", 0}

protected

Definition at line 189 of file axi_target_pe.h.

◆ rd_addr_accept_delay

cci::cci_param<int> axi::pe::axi_target_pe::rd_addr_accept_delay {"rd_addr_accept_delay", 0}

the latency between between BEGIN_REQ and END_REQ (ARVALID to ARREADY) -> APR

Definition at line 77 of file axi_target_pe.h.

◆ rd_data_beat_delay

cci::cci_param<int> axi::pe::axi_target_pe::rd_data_beat_delay {"rd_data_beat_delay", 0}

the latency between between END(_PARTIAL)_RESP and BEGIN(_PARTIAL)_RESP (RREADY to RVALID) -> RBV

Definition at line 81 of file axi_target_pe.h.

◆ rd_data_interleaving

cci::cci_param<bool> axi::pe::axi_target_pe::rd_data_interleaving {"rd_data_interleaving", true}

enable data interleaving on read responses if rd_data_beat_delay is greater than 0

Definition at line 68 of file axi_target_pe.h.

◆ rd_req2resp_fifo

scc::fifo_w_cb<std::tuple<payload_type*, unsigned> > axi::pe::axi_target_pe::rd_req2resp_fifo {"rd_req2resp_fifo"}

protected

Definition at line 174 of file axi_target_pe.h.

◆ rd_resp

scc::ordered_semaphore axi::pe::axi_target_pe::rd_resp {1}

protected

Definition at line 181 of file axi_target_pe.h.

◆ rd_resp_beat_fifo

sc_core::sc_fifo<std::tuple<fsm::fsm_handle*, axi::fsm::protocol_time_point_e> > axi::pe::axi_target_pe::rd_resp_beat_fifo {128}

protected

Definition at line 180 of file axi_target_pe.h.

◆ rd_resp_ch

scc::ordered_semaphore axi::pe::axi_target_pe::rd_resp_ch {1}

protected

Definition at line 181 of file axi_target_pe.h.

◆ rd_resp_delay

cci::cci_param<int> axi::pe::axi_target_pe::rd_resp_delay {"rd_resp_delay", 0}

the latency between request and response phase. Will be overwritten by the return of the callback function (if registered) -> RIV

Definition at line 86 of file axi_target_pe.h.

◆ rd_resp_fifo

sc_core::sc_fifo<payload_type*> axi::pe::axi_target_pe::rd_resp_fifo {1}

protected

Definition at line 177 of file axi_target_pe.h.

◆ socket_bw

axi::axi_bw_transport_if<axi_protocol_types>* axi::pe::axi_target_pe::socket_bw {nullptr}

protected

Definition at line 172 of file axi_target_pe.h.

◆ stalled_tp

std::array<axi::fsm::protocol_time_point_e, 3> axi::pe::axi_target_pe::stalled_tp {{axi::fsm::CB_CNT, axi::fsm::CB_CNT, axi::fsm::CB_CNT}}

protected

Definition at line 212 of file axi_target_pe.h.

◆ stalled_tx

std::array<tlm::tlm_generic_payload*, 3> axi::pe::axi_target_pe::stalled_tx {nullptr, nullptr, nullptr}

protected

Definition at line 211 of file axi_target_pe.h.

◆ wr_data_accept_delay

cci::cci_param<int> axi::pe::axi_target_pe::wr_data_accept_delay {"wr_data_accept_delay", 0}

the latency between between BEGIN(_PARTIAL)_REQ and END(_PARTIAL)_REQ (AWVALID to AWREADY and WVALID to WREADY) -> AWR, WBR

Definition at line 73 of file axi_target_pe.h.

◆ wr_req2resp_fifo

scc::fifo_w_cb<std::tuple<payload_type*, unsigned> > axi::pe::axi_target_pe::wr_req2resp_fifo {"wr_req2resp_fifo"}

protected

Definition at line 175 of file axi_target_pe.h.

◆ wr_resp_beat_fifo

sc_core::sc_fifo<std::tuple<fsm::fsm_handle*, axi::fsm::protocol_time_point_e> > axi::pe::axi_target_pe::wr_resp_beat_fifo {128}

protected

Definition at line 180 of file axi_target_pe.h.

◆ wr_resp_ch

scc::ordered_semaphore axi::pe::axi_target_pe::wr_resp_ch {1}

protected

Definition at line 181 of file axi_target_pe.h.

◆ wr_resp_delay

cci::cci_param<int> axi::pe::axi_target_pe::wr_resp_delay {"wr_resp_delay", 0}

the latency between request and response phase. Will be overwritten by the return of the callback function (if registered) -> BV

Definition at line 91 of file axi_target_pe.h.

◆ wr_resp_fifo

sc_core::sc_fifo<payload_type*> axi::pe::axi_target_pe::wr_resp_fifo {1}

protected

Definition at line 177 of file axi_target_pe.h.

The documentation for this class was generated from the following files:

/home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/pe/axi_target_pe.h
/home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/pe/axi_target_pe.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ payload_type

◆ phase_type

Constructor & Destructor Documentation

◆ axi_target_pe()

Member Function Documentation

◆ b_transport()

◆ create_fsm_handle()

◆ end_of_elaboration()

◆ fsm_clk_method()

◆ get_direct_mem_ptr()

◆ getAllOutStandingTx()

◆ getOutStandingTx() [1/2]

◆ getOutStandingTx() [2/2]

◆ is_active()

◆ nb_fw()

◆ nb_transport_fw()

◆ operation_resp()

◆ process_req2resp_fifos()

◆ send_rd_resp_beat_thread()

◆ send_wr_resp_beat_thread()

◆ set_bw_interface()

◆ set_operation_cb()

◆ setup_callbacks()

◆ start_of_simulation()

◆ start_rd_resp_thread()

◆ start_wr_resp_thread()

◆ transport_dbg()

◆ tx_finish_event()

Member Data Documentation

◆ active_rdresp_id

◆ bw_i

◆ bw_intor

◆ clk_i

◆ clk_if

◆ fw_o

◆ fw_peq

◆ max_outstanding_tx

◆ operation_cb

◆ outstanding_cnt

◆ outstanding_ign_tx

◆ outstanding_rd_tx

◆ outstanding_wr_tx

◆ rd_addr_accept_delay

◆ rd_data_beat_delay

◆ rd_data_interleaving

◆ rd_req2resp_fifo

◆ rd_resp

◆ rd_resp_beat_fifo

◆ rd_resp_ch

◆ rd_resp_delay

◆ rd_resp_fifo

◆ socket_bw

◆ stalled_tp

◆ stalled_tx

◆ wr_data_accept_delay

◆ wr_req2resp_fifo

◆ wr_resp_beat_fifo

◆ wr_resp_ch

◆ wr_resp_delay

◆ wr_resp_fifo
