axi::axi_extension< REQ, RESP > Struct Template Reference

#include <axi_tlm.h>

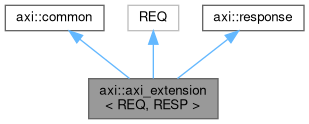

Inheritance diagram for axi::axi_extension< REQ, RESP >:

Collaboration diagram for axi::axi_extension< REQ, RESP >:

Public Member Functions
	axi_extension ()=default
	the default constructor
	axi_extension (const axi_extension< REQ, RESP > *)
	the copy constructor
virtual	~axi_extension ()
void	reset ()
	reset all data member to their default
void	reset (const REQ *)
	reset the common and response part, reset response using the given reset value
void	add_to_response_array (response &)
	add a read response to the response array
const std::vector< response > &	get_response_array () const
	return the read response array for constant instances
std::vector< response > &	get_response_array ()
	return the read response array
void	set_response_array_complete (bool=true)
	set the flag indicating the all read responses are collected
bool	is_response_array_complete ()
Public Member Functions inherited from axi::common
	common ()=default
	the constructor
void	reset ()
	reset all data member to their default
common &	operator= (const common &o)
	copy assignment operator
void	set_id (unsigned int value)
unsigned int	get_id () const
void	set_user (id_type chnl, unsigned int value)
unsigned int	get_user (id_type chnl) const
Public Member Functions inherited from axi::response
response &	operator= (const response &o)
	assignment operator
void	reset ()
	reset all data member to their default
void	set_resp (resp_e)
	set the response status as POD
resp_e	get_resp () const
	get the response status as POD
bool	is_okay () const
	check if the response status is OKAY
void	set_okay ()
	set the response status to OKAY
bool	is_exokay () const
	check if the response status is EXOKAY
void	set_exokay ()
	set the response status to EXOKAY
bool	is_slverr () const
	check if the response status is SLVERR
void	set_slverr ()
	set the response status to SLVERR
bool	is_decerr () const
	check if the response status is DECERR
void	set_decerr ()
	set the response status to DECERR

Additional Inherited Members
Public Types inherited from axi::common
enum class	id_type { CTRL , DATA , RESP }
Static Public Member Functions inherited from axi::response
static resp_e	from_tlm_response_status (tlm::tlm_response_status)
	converts the response status of a generic payload to a
static tlm::tlm_response_status	to_tlm_response_status (resp_e)
	converts a
Protected Types inherited from axi::response
enum	{   DATATRANSFER = 1 , SNOOPEERROR = 2 , PASSDIRTY = 4 , ISSHARED = 8 ,   WASUNIQUE = 16 }
Protected Attributes inherited from axi::common
unsigned	id {0}
std::array< unsigned, 3 >	user {{0, 0, 0}}
Protected Attributes inherited from axi::response
uint8_t	resp {static_cast<uint8_t>(resp_e::OKAY)}

Detailed Description

template<typename REQ, typename RESP = response>
struct axi::axi_extension< REQ, RESP >

the template class forming an AXI extension as a combination of common, a request class and a response class

Definition at line 782 of file axi_tlm.h.

Constructor & Destructor Documentation

axi_extension()

template<typename REQ, typename RESP>

axi::axi_extension< REQ, RESP >::axi_extension

(

const axi_extension< REQ, RESP > *

ext

)

the copy constructor

Parameters

the	extension to copy from

Definition at line 1652 of file axi_tlm.h.

~axi_extension()

template<typename REQ, typename RESP = response>

virtual axi::axi_extension< REQ, RESP >::~axi_extension ( )

inlinevirtual

the virtual destructor

Definition at line 798 of file axi_tlm.h.

Member Function Documentation

add_to_response_array()

template<typename REQ, typename RESP>

void axi::axi_extension< REQ, RESP >::add_to_response_array ( response & arr )

inline

add a read response to the response array

Parameters

the

response

Definition at line 1670 of file axi_tlm.h.

get_response_array() [1/2]

template<typename REQ, typename RESP>

std::vector< response > & axi::axi_extension< REQ, RESP >::get_response_array ( )

inline

return the read response array

Returns

the response array

Definition at line 1679 of file axi_tlm.h.

get_response_array() [2/2]

template<typename REQ, typename RESP>

const std::vector< response > & axi::axi_extension< REQ, RESP >::get_response_array ( ) const

inline

return the read response array for constant instances

Returns

the const-qualified response array

Definition at line 1675 of file axi_tlm.h.

is_response_array_complete()

template<typename REQ, typename RESP>

bool axi::axi_extension< REQ, RESP >::is_response_array_complete ( )

inline

get the flag indicating the all read responses are collected

Returns

the flag value

Definition at line 1688 of file axi_tlm.h.

reset() [1/2]

template<typename REQ, typename RESP>

void axi::axi_extension< REQ, RESP >::reset

(

)

reset all data member to their default

Definition at line 1658 of file axi_tlm.h.

reset() [2/2]

template<typename REQ, typename RESP>

void axi::axi_extension< REQ, RESP >::reset

(

const REQ *

control

)

reset the common and response part, reset response using the given reset value

Parameters

the	response reset value

Definition at line 1664 of file axi_tlm.h.

set_response_array_complete()

template<typename REQ, typename RESP>

void axi::axi_extension< REQ, RESP >::set_response_array_complete ( bool complete = true )

inline

set the flag indicating the all read responses are collected

Parameters

the	flag value

Definition at line 1684 of file axi_tlm.h.

---

The documentation for this struct was generated from the following file:

• /home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/axi_tlm.h
