axi::common Struct Reference

#include <axi_tlm.h>

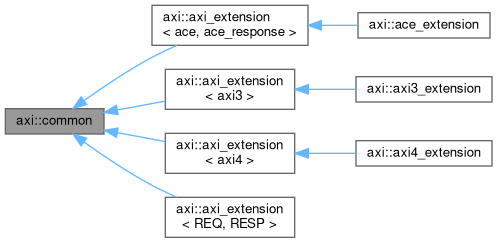

Inheritance diagram for axi::common:

Public Types
enum class	id_type { CTRL , DATA , RESP }

Public Member Functions
	common ()=default
	the constructor
void	reset ()
	reset all data member to their default
common &	operator= (const common &o)
	copy assignment operator
void	set_id (unsigned int value)
unsigned int	get_id () const
void	set_user (id_type chnl, unsigned int value)
unsigned int	get_user (id_type chnl) const

Protected Attributes
unsigned	id {0}
std::array< unsigned, 3 >	user {{0, 0, 0}}

Detailed Description

the variable part of all requests containing AxID and AxUSER

Definition at line 160 of file axi_tlm.h.

Member Enumeration Documentation

id_type

enum class axi::common::id_type

strong

Since AXI has up to three channels per transaction the id and user fields are denoted by this enum

Definition at line 178 of file axi_tlm.h.

Member Function Documentation

get_id()

unsigned int axi::common::get_id ( ) const

inline

get the id value of a particular channel

Returns

the AxID

Definition at line 1299 of file axi_tlm.h.

get_user()

unsigned int axi::common::get_user ( id_type chnl ) const

inline

get the user value of a particular channel

Returns

AxUSER value

Definition at line 1303 of file axi_tlm.h.

operator=()

common & axi::common::operator= ( const common & o )

inline

copy assignment operator

Parameters

o

Returns

reference to self

Definition at line 170 of file axi_tlm.h.

set_id()

void axi::common::set_id ( unsigned int value )

inline

set the id value of a particular channel

Parameters

value

of the AxID of the ADDR, DATA, and RESP channel

Definition at line 1297 of file axi_tlm.h.

set_user()

void axi::common::set_user ( id_type chnl, unsigned int value )

inline

set the user value of a particular channel

Parameters

chnl	AxUSER value of the ADDR, DATA, and RESP channel
value	of the user field

Definition at line 1301 of file axi_tlm.h.

Member Data Documentation

id

unsigned axi::common::id {0}

protected

Definition at line 194 of file axi_tlm.h.

user

std::array<unsigned, 3> axi::common::user {{0, 0, 0}}

protected

Definition at line 195 of file axi_tlm.h.

---

The documentation for this struct was generated from the following file:

• /home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/axi_tlm.h
