axi::response Struct Reference

#include <axi_tlm.h>

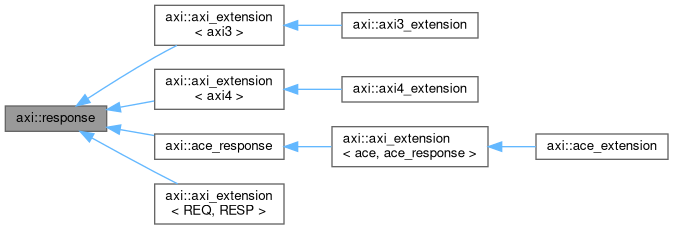

Inheritance diagram for axi::response:

Public Member Functions
response &	operator= (const response &o)
	assignment operator
void	reset ()
	reset all data member to their default
void	set_resp (resp_e)
	set the response status as POD
resp_e	get_resp () const
	get the response status as POD
bool	is_okay () const
	check if the response status is OKAY
void	set_okay ()
	set the response status to OKAY
bool	is_exokay () const
	check if the response status is EXOKAY
void	set_exokay ()
	set the response status to EXOKAY
bool	is_slverr () const
	check if the response status is SLVERR
void	set_slverr ()
	set the response status to SLVERR
bool	is_decerr () const
	check if the response status is DECERR
void	set_decerr ()
	set the response status to DECERR

Static Public Member Functions
static resp_e	from_tlm_response_status (tlm::tlm_response_status)
	converts the response status of a generic payload to a
static tlm::tlm_response_status	to_tlm_response_status (resp_e)
	converts a

Protected Types
enum	{   DATATRANSFER = 1 , SNOOPEERROR = 2 , PASSDIRTY = 4 , ISSHARED = 8 ,   WASUNIQUE = 16 }

Protected Attributes
uint8_t	resp {static_cast<uint8_t>(resp_e::OKAY)}

Detailed Description

the response status of an AXI transaction

Definition at line 626 of file axi_tlm.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

protected

Definition at line 701 of file axi_tlm.h.

Member Function Documentation

from_tlm_response_status()

resp_e axi::response::from_tlm_response_status ( tlm::tlm_response_status st )

inlinestatic

converts the response status of a generic payload to a

See also

resp_e type

Parameters

the	tlm gp response status

Returns

the axi response status

Definition at line 1547 of file axi_tlm.h.

get_resp()

resp_e axi::response::get_resp ( ) const

inline

get the response status as POD

Returns

the status

Definition at line 1574 of file axi_tlm.h.

is_decerr()

bool axi::response::is_decerr ( ) const

inline

check if the response status is DECERR

Returns

true if the status was decerr

Definition at line 1599 of file axi_tlm.h.

is_exokay()

bool axi::response::is_exokay ( ) const

inline

check if the response status is EXOKAY

Returns

true if the status was exok

Definition at line 1591 of file axi_tlm.h.

is_okay()

bool axi::response::is_okay ( ) const

inline

check if the response status is OKAY

Returns

true if the status was ok

Definition at line 1587 of file axi_tlm.h.

is_slverr()

bool axi::response::is_slverr ( ) const

inline

check if the response status is SLVERR

Returns

true if the status was slverr

Definition at line 1595 of file axi_tlm.h.

operator=()

response & axi::response::operator= ( const response & o )

inline

assignment operator

Parameters

o

Returns

reference to self

Definition at line 633 of file axi_tlm.h.

reset()

void axi::response::reset ( )

inline

reset all data member to their default

Definition at line 1545 of file axi_tlm.h.

set_decerr()

void axi::response::set_decerr ( )

inline

set the response status to DECERR

Definition at line 1601 of file axi_tlm.h.

set_exokay()

void axi::response::set_exokay ( )

inline

set the response status to EXOKAY

Definition at line 1593 of file axi_tlm.h.

set_okay()

void axi::response::set_okay ( )

inline

set the response status to OKAY

Definition at line 1589 of file axi_tlm.h.

set_resp()

void axi::response::set_resp ( resp_e resp )

inline

set the response status as POD

Parameters

the

status

Definition at line 1572 of file axi_tlm.h.

set_slverr()

void axi::response::set_slverr ( )

inline

set the response status to SLVERR

Definition at line 1597 of file axi_tlm.h.

to_tlm_response_status()

tlm::tlm_response_status axi::response::to_tlm_response_status ( resp_e resp )

inlinestatic

converts a

See also

resp_e type to a response status of a generic payload

Parameters

the	axi response status

Returns

the tlm gp response status

Definition at line 1559 of file axi_tlm.h.

Member Data Documentation

resp

uint8_t axi::response::resp {static_cast<uint8_t>(resp_e::OKAY)}

protected

Definition at line 708 of file axi_tlm.h.

---

The documentation for this struct was generated from the following file:

• /home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/axi_tlm.h
