tlm::scc::lwtr::tlm2_lwtr_recorder< BUSWIDTH, TYPES, N, POL > Class Template Reference

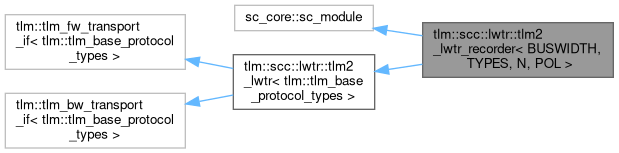

Inheritance diagram for tlm::scc::lwtr::tlm2_lwtr_recorder< BUSWIDTH, TYPES, N, POL >:
Collaboration diagram for tlm::scc::lwtr::tlm2_lwtr_recorder< BUSWIDTH, TYPES, N, POL >:
Public Member Functions | |
| tlm2_lwtr_recorder (sc_core::sc_module_name nm, bool recording_enabled=true, tx_db *tr_db=tx_db::get_default_db()) | |
| Public Member Functions inherited from tlm::scc::lwtr::tlm2_lwtr< tlm::tlm_base_protocol_types > | |
| tlm2_lwtr (bool recording_enabled=true, tx_db *tr_db=tx_db::get_default_db()) | |
| tlm::tlm_sync_enum | nb_transport_fw (typename tlm::tlm_base_protocol_types::tlm_payload_type &trans, typename tlm::tlm_base_protocol_types::tlm_phase_type &phase, sc_core::sc_time &delay) override |
| The non-blocking forward transport function. | |
| tlm::tlm_sync_enum | nb_transport_bw (typename tlm::tlm_base_protocol_types::tlm_payload_type &trans, typename tlm::tlm_base_protocol_types::tlm_phase_type &phase, sc_core::sc_time &delay) override |
| The non-blocking backward transport function. | |
| void | b_transport (typename tlm::tlm_base_protocol_types::tlm_payload_type &trans, sc_core::sc_time &delay) override |
| The blocking transport function. | |
| bool | get_direct_mem_ptr (typename tlm::tlm_base_protocol_types::tlm_payload_type &trans, tlm::tlm_dmi &dmi_data) override |
| The direct memory interface forward function. | |
| void | invalidate_direct_mem_ptr (sc_dt::uint64 start_addr, sc_dt::uint64 end_addr) override |
| The direct memory interface backward function. | |
| unsigned int | transport_dbg (typename tlm::tlm_base_protocol_types::tlm_payload_type &trans) override |
| The debug transportfunction. | |
| bool | isRecordingBlockingTxEnabled () const |
| get the current state of transaction recording | |
| bool | isRecordingNonBlockingTxEnabled () const |
| get the current state of transaction recording | |
Public Attributes | |
| tlm::tlm_target_socket< BUSWIDTH, TYPES, N, POL > | ts {"ts"} |
| tlm::tlm_initiator_socket< BUSWIDTH, TYPES, N, POL > | is {"is"} |
| Public Attributes inherited from tlm::scc::lwtr::tlm2_lwtr< tlm::tlm_base_protocol_types > | |
| cci::cci_param< bool > | enableBlTracing |
| the attribute to selectively enable/disable recording of blocking protocol tx | |
| cci::cci_param< bool > | enableNbTracing |
| the attribute to selectively enable/disable recording of non-blocking protocol tx | |
| cci::cci_param< bool > | enableTimedTracing |
| the attribute to selectively enable/disable timed recording | |
| cci::cci_param< bool > | enableDmiTracing |
| the attribute to selectively enable/disable DMI recording | |
Additional Inherited Members | |
| Protected Member Functions inherited from tlm::scc::lwtr::tlm2_lwtr< tlm::tlm_base_protocol_types > | |
| void | initialize_streams () |
| Protected Attributes inherited from tlm::scc::lwtr::tlm2_lwtr< tlm::tlm_base_protocol_types > | |
| sc_core::sc_port< tlm::tlm_fw_transport_if< tlm::tlm_base_protocol_types > > | fw_port |
| the port where fw accesses are forwarded to | |
| sc_core::sc_port< tlm::tlm_bw_transport_if< tlm::tlm_base_protocol_types > > | bw_port |
| the port where bw accesses are forwarded to | |
Detailed Description
template<unsigned BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
class tlm::scc::lwtr::tlm2_lwtr_recorder< BUSWIDTH, TYPES, N, POL >
class tlm::scc::lwtr::tlm2_lwtr_recorder< BUSWIDTH, TYPES, N, POL >
Definition at line 356 of file tlm2_lwtr.h.
Constructor & Destructor Documentation
◆ tlm2_lwtr_recorder()
template<unsigned BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
|
inline |
Definition at line 361 of file tlm2_lwtr.h.
Member Data Documentation
◆ is
template<unsigned BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| tlm::tlm_initiator_socket<BUSWIDTH, TYPES, N, POL> tlm::scc::lwtr::tlm2_lwtr_recorder< BUSWIDTH, TYPES, N, POL >::is {"is"} |
Definition at line 359 of file tlm2_lwtr.h.
◆ ts
template<unsigned BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| tlm::tlm_target_socket<BUSWIDTH, TYPES, N, POL> tlm::scc::lwtr::tlm2_lwtr_recorder< BUSWIDTH, TYPES, N, POL >::ts {"ts"} |
Definition at line 358 of file tlm2_lwtr.h.
The documentation for this class was generated from the following file:
- /home/eyck/Projects/MINRES/SystemC-Components/src/sysc/tlm/scc/lwtr/tlm2_lwtr.h
