The TLM2 transaction recorder. More...

#include <tlm2_lwtr.h>

Inheritance diagram for tlm::scc::lwtr::tlm2_lwtr< TYPES >:

[legend]

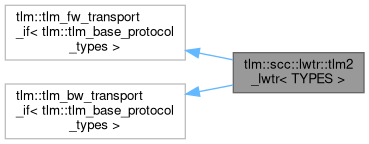

Collaboration diagram for tlm::scc::lwtr::tlm2_lwtr< TYPES >:

[legend]

Public Member Functions
	tlm2_lwtr (bool recording_enabled=true, tx_db *tr_db=tx_db::get_default_db())
	tlm2_lwtr (const char full_name, bool recording_enabled=true, tx_db tr_db=tx_db::get_default_db())
tlm::tlm_sync_enum	nb_transport_fw (typename TYPES::tlm_payload_type &trans, typename TYPES::tlm_phase_type &phase, sc_core::sc_time &delay) override
	The non-blocking forward transport function.
tlm::tlm_sync_enum	nb_transport_bw (typename TYPES::tlm_payload_type &trans, typename TYPES::tlm_phase_type &phase, sc_core::sc_time &delay) override
	The non-blocking backward transport function.
void	b_transport (typename TYPES::tlm_payload_type &trans, sc_core::sc_time &delay) override
	The blocking transport function.
bool	get_direct_mem_ptr (typename TYPES::tlm_payload_type &trans, tlm::tlm_dmi &dmi_data) override
	The direct memory interface forward function.
void	invalidate_direct_mem_ptr (sc_dt::uint64 start_addr, sc_dt::uint64 end_addr) override
	The direct memory interface backward function.
unsigned int	transport_dbg (typename TYPES::tlm_payload_type &trans) override
	The debug transportfunction.
bool	isRecordingBlockingTxEnabled () const
	get the current state of transaction recording
bool	isRecordingNonBlockingTxEnabled () const
	get the current state of transaction recording

Public Attributes
cci::cci_param< bool >	enableBlTracing
	the attribute to selectively enable/disable recording of blocking protocol tx
cci::cci_param< bool >	enableNbTracing
	the attribute to selectively enable/disable recording of non-blocking protocol tx
cci::cci_param< bool >	enableTimedTracing {"enableTimedTracing", true}
	the attribute to selectively enable/disable timed recording
cci::cci_param< bool >	enableDmiTracing {"enableDmiTracing", false}
	the attribute to selectively enable/disable DMI recording

Protected Member Functions
void	initialize_streams ()

Protected Attributes
sc_core::sc_port< tlm::tlm_fw_transport_if< TYPES > >	fw_port {"fw_port"}
	the port where fw accesses are forwarded to
sc_core::sc_port< tlm::tlm_bw_transport_if< TYPES > >	bw_port {"bw_port"}
	the port where bw accesses are forwarded to

Detailed Description

template<typename TYPES = tlm::tlm_base_protocol_types>
class tlm::scc::lwtr::tlm2_lwtr< TYPES >

The TLM2 transaction recorder.

This module records all TLM transaction to a LWTR transaction stream for further viewing and analysis. The handle of the created transaction is stored in an tlm_extension so that another instance of the tlm2_lwtr e.g. further down the path can link to it.

Definition at line 118 of file tlm2_lwtr.h.

Constructor & Destructor Documentation

◆ tlm2_lwtr() [1/2]

template<typename TYPES = tlm::tlm_base_protocol_types>

tlm::scc::lwtr::tlm2_lwtr< TYPES >::tlm2_lwtr	(	bool	recording_enabled = true,
		tx_db *	tr_db = tx_db::get_default_db() )

inline

Definition at line 142 of file tlm2_lwtr.h.

◆ tlm2_lwtr() [2/2]

template<typename TYPES = tlm::tlm_base_protocol_types>

tlm::scc::lwtr::tlm2_lwtr< TYPES >::tlm2_lwtr	(	const char *	full_name,
		bool	recording_enabled = true,
		tx_db *	tr_db = tx_db::get_default_db() )

inline

Definition at line 155 of file tlm2_lwtr.h.

◆ ~tlm2_lwtr()

template<typename TYPES = tlm::tlm_base_protocol_types>

virtual tlm::scc::lwtr::tlm2_lwtr< TYPES >::~tlm2_lwtr ( )

inlineoverridevirtual

Definition at line 169 of file tlm2_lwtr.h.

Member Function Documentation

◆ b_transport()

template<typename TYPES>

void tlm::scc::lwtr::tlm2_lwtr< TYPES >::b_transport	(	typename TYPES::tlm_payload_type &	trans,
		sc_core::sc_time &	delay )

override

The blocking transport function.

This type of transaction is forwarded and recorded to a transaction stream named "b_tx" with current timestamps. Additionally a "b_tx_timed" is been created recording the transactions at their annotated delay

Parameters

trans	is the generic payload of the transaction
delay	is the annotated delay

Definition at line 375 of file tlm2_lwtr.h.

◆ get_direct_mem_ptr()

template<typename TYPES>

bool tlm::scc::lwtr::tlm2_lwtr< TYPES >::get_direct_mem_ptr	(	typename TYPES::tlm_payload_type &	trans,
		tlm::tlm_dmi &	dmi_data )

override

The direct memory interface forward function.

This type of transaction is just forwarded and not recorded.

Parameters

trans	is the generic payload of the transaction
dmi_data	is the structure holding the dmi information

Returns: if the dmi structure is valid

Definition at line 639 of file tlm2_lwtr.h.

◆ initialize_streams()

template<typename TYPES = tlm::tlm_base_protocol_types>

void tlm::scc::lwtr::tlm2_lwtr< TYPES >::initialize_streams ( )

inlineprotected

Definition at line 308 of file tlm2_lwtr.h.

◆ invalidate_direct_mem_ptr()

template<typename TYPES>

void tlm::scc::lwtr::tlm2_lwtr< TYPES >::invalidate_direct_mem_ptr	(	sc_dt::uint64	start_addr,
		sc_dt::uint64	end_addr )

override

The direct memory interface backward function.

This type of transaction is just forwarded and not recorded.

Parameters

start_addr	is the start address of the memory area being invalid
end_addr	is the end address of the memory area being invalid

Definition at line 655 of file tlm2_lwtr.h.

◆ isRecordingBlockingTxEnabled()

template<typename TYPES = tlm::tlm_base_protocol_types>

bool tlm::scc::lwtr::tlm2_lwtr< TYPES >::isRecordingBlockingTxEnabled ( ) const

inline

get the current state of transaction recording

Returns: if true transaction recording is enabled otherwise transaction recording is bypassed

Definition at line 251 of file tlm2_lwtr.h.

◆ isRecordingNonBlockingTxEnabled()

template<typename TYPES = tlm::tlm_base_protocol_types>

bool tlm::scc::lwtr::tlm2_lwtr< TYPES >::isRecordingNonBlockingTxEnabled ( ) const

inline

get the current state of transaction recording

Returns: if true transaction recording is enabled otherwise transaction recording is bypassed

Definition at line 257 of file tlm2_lwtr.h.

◆ nb_transport_bw()

template<typename TYPES>

tlm::tlm_sync_enum tlm::scc::lwtr::tlm2_lwtr< TYPES >::nb_transport_bw	(	typename TYPES::tlm_payload_type &	trans,
		typename TYPES::tlm_phase_type &	phase,
		sc_core::sc_time &	delay )

override

The non-blocking backward transport function.

This type of transaction is forwarded and recorded to a transaction stream named "nb_bw" with current timestamps.

Parameters

trans	is the generic payload of the transaction
phase	is the current phase of the transaction
delay	is the annotated delay

Returns: the sync state of the transaction

Definition at line 517 of file tlm2_lwtr.h.

◆ nb_transport_fw()

template<typename TYPES>

tlm::tlm_sync_enum tlm::scc::lwtr::tlm2_lwtr< TYPES >::nb_transport_fw	(	typename TYPES::tlm_payload_type &	trans,
		typename TYPES::tlm_phase_type &	phase,
		sc_core::sc_time &	delay )

override

The non-blocking forward transport function.

This type of transaction is forwarded and recorded to a transaction stream named "nb_fw" with current timestamps.

Parameters

trans	is the generic payload of the transaction
phase	is the current phase of the transaction
delay	is the annotated delay

Returns: the sync state of the transaction

Definition at line 439 of file tlm2_lwtr.h.

◆ transport_dbg()

template<typename TYPES>

unsigned int tlm::scc::lwtr::tlm2_lwtr< TYPES >::transport_dbg ( typename TYPES::tlm_payload_type & trans )

override

The debug transportfunction.

This type of transaction is just forwarded and not recorded.

Parameters

trans is the generic payload of the transaction

Returns: the sync state of the transaction

Definition at line 671 of file tlm2_lwtr.h.

Member Data Documentation

◆ bw_port

template<typename TYPES = tlm::tlm_base_protocol_types>

sc_core::sc_port<tlm::tlm_bw_transport_if<TYPES> > tlm::scc::lwtr::tlm2_lwtr< TYPES >::bw_port {"bw_port"}

protected

the port where bw accesses are forwarded to

Definition at line 264 of file tlm2_lwtr.h.

◆ enableBlTracing

template<typename TYPES = tlm::tlm_base_protocol_types>

cci::cci_param<bool> tlm::scc::lwtr::tlm2_lwtr< TYPES >::enableBlTracing

the attribute to selectively enable/disable recording of blocking protocol tx

Definition at line 121 of file tlm2_lwtr.h.

◆ enableDmiTracing

template<typename TYPES = tlm::tlm_base_protocol_types>

cci::cci_param<bool> tlm::scc::lwtr::tlm2_lwtr< TYPES >::enableDmiTracing {"enableDmiTracing", false}

the attribute to selectively enable/disable DMI recording

Definition at line 130 of file tlm2_lwtr.h.

◆ enableNbTracing

template<typename TYPES = tlm::tlm_base_protocol_types>

cci::cci_param<bool> tlm::scc::lwtr::tlm2_lwtr< TYPES >::enableNbTracing

the attribute to selectively enable/disable recording of non-blocking protocol tx

Definition at line 124 of file tlm2_lwtr.h.

◆ enableTimedTracing

template<typename TYPES = tlm::tlm_base_protocol_types>

cci::cci_param<bool> tlm::scc::lwtr::tlm2_lwtr< TYPES >::enableTimedTracing {"enableTimedTracing", true}

the attribute to selectively enable/disable timed recording

Definition at line 127 of file tlm2_lwtr.h.

◆ fw_port

template<typename TYPES = tlm::tlm_base_protocol_types>

sc_core::sc_port<tlm::tlm_fw_transport_if<TYPES> > tlm::scc::lwtr::tlm2_lwtr< TYPES >::fw_port {"fw_port"}

protected

the port where fw accesses are forwarded to

Definition at line 261 of file tlm2_lwtr.h.

The documentation for this class was generated from the following file:

/home/eyck/Projects/MINRES/SystemC-Components/src/sysc/tlm/scc/lwtr/tlm2_lwtr.h
