Peripheral base class using scc::tlm_target. More...

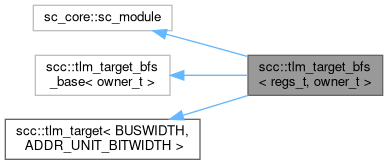

Inheritance diagram for scc::tlm_target_bfs< regs_t, owner_t >:

[legend]

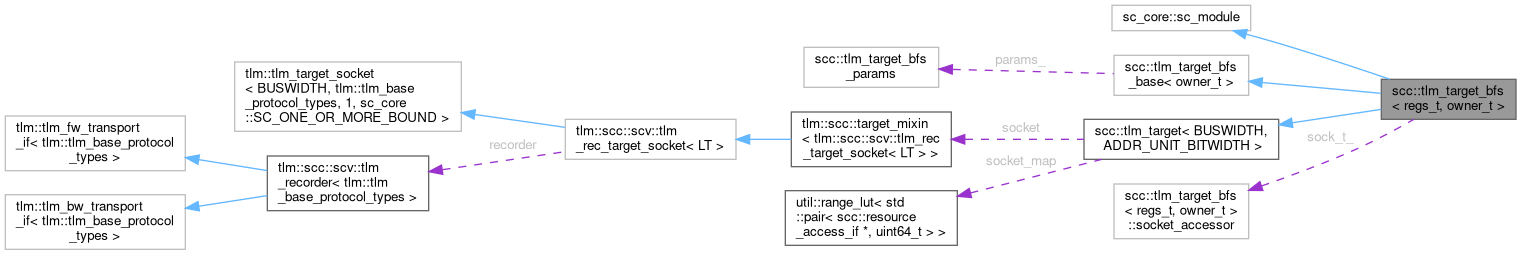

Collaboration diagram for scc::tlm_target_bfs< regs_t, owner_t >:

[legend]

Classes
class	socket_accessor

Public Member Functions
	tlm_target_bfs (sc_core::sc_module_name name, tlm_target_bfs_params_t &&params, owner_t *owner=nullptr)
Public Member Functions inherited from scc::tlm_target_bfs_base< owner_t >
	tlm_target_bfs_base (tlm_target_bfs_params_t &&params, owner_t *owner=nullptr)
const owner_t *	getOwner () const
void	bindIRQ (size_t num, sc_core::sc_signal< bool > *sig)
Public Member Functions inherited from scc::tlm_target< BUSWIDTH, ADDR_UNIT_BITWIDTH >
	tlm_target (sc_core::sc_time &clock, const char *socket_name="socket")
	the constructor
void	b_tranport_cb (tlm::tlm_generic_payload &gp, sc_core::sc_time &d)
	the blocking transport callback
unsigned int	tranport_dbg_cb (tlm::tlm_generic_payload &gp)
	the debug transport callback
void	addResource (resource_access_if &rai, uint64_t base_addr)
	add a resource to this target at a certain address within the socket address range
void	addResource (indexed_resource_access_if &irai, uint64_t base_addr)
	add an indexed resource to this target at a certain address within the socket address range
size_t	get_size ()

Public Attributes
socket_accessor	sock_t_ {*this}
	The socket to access the memory mapped registers of this target.
Public Attributes inherited from scc::tlm_target_bfs_base< owner_t >
sc_core::sc_in< bool >	rst_in_ {"reset_in"}
std::unique_ptr< std::vector< sc_core::sc_out< bool > > >	irq_out_ {nullptr}
Public Attributes inherited from scc::tlm_target< BUSWIDTH, ADDR_UNIT_BITWIDTH >
tlm::scc::target_mixin< tlm::scc::scv::tlm_rec_target_socket< BUSWIDTH > >	socket
	the target socket

Protected Member Functions
void	reset_cb ()

Protected Attributes
std::unique_ptr< regs_t >	regs
sc_core::sc_time	clk
Protected Attributes inherited from scc::tlm_target_bfs_base< owner_t >
const tlm_target_bfs_params_t	params_ {}
owner_t *const	owner_ {nullptr}
Protected Attributes inherited from scc::tlm_target< BUSWIDTH, ADDR_UNIT_BITWIDTH >
util::range_lut< std::pair< resource_access_if *, uint64_t > >	socket_map

Additional Inherited Members
Public Types inherited from scc::tlm_target< BUSWIDTH, ADDR_UNIT_BITWIDTH >
using	this_type = tlm_target<BUSWIDTH, ADDR_UNIT_BITWIDTH>

Detailed Description

template<typename regs_t, typename owner_t>
class scc::tlm_target_bfs< regs_t, owner_t >

Peripheral base class using scc::tlm_target.

Template Parameters

regs_t	Subclass of tlm_target_bfs_register_base that contains the register definitions.
owner_t	Type of the owner pointer

Definition at line 91 of file tlm_target_bfs.h.
