scc::indexed_resource_access_if Class Reference

interface defining access to an indexed resource e.g. register file More...

#include <resource_access_if.h>

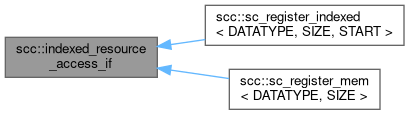

Inheritance diagram for scc::indexed_resource_access_if:

Public Types
using	value_type = resource_access_if
using	pointer = value_type*
using	const_pointer = const value_type*
using	reference = value_type&
using	const_reference = const value_type&
using	iterator = resource_access_if*
using	const_iterator = const resource_access_if*

Public Member Functions
virtual std::size_t	size ()=0
	get the size of the resource
virtual reference	operator[] (std::size_t idx) noexcept=0
	get value at index
virtual const_reference	operator[] (std::size_t idx) const noexcept=0
	get value at index
virtual reference	at (std::size_t idx)=0
virtual const_reference	at (std::size_t idx) const =0

Detailed Description

interface defining access to an indexed resource e.g. register file

Definition at line 103 of file resource_access_if.h.

Member Typedef Documentation

const_iterator

using scc::indexed_resource_access_if::const_iterator = const resource_access_if*

Definition at line 111 of file resource_access_if.h.

const_pointer

using scc::indexed_resource_access_if::const_pointer = const value_type*

Definition at line 107 of file resource_access_if.h.

const_reference

using scc::indexed_resource_access_if::const_reference = const value_type&

Definition at line 109 of file resource_access_if.h.

iterator

using scc::indexed_resource_access_if::iterator = resource_access_if*

Definition at line 110 of file resource_access_if.h.

pointer

using scc::indexed_resource_access_if::pointer = value_type*

Definition at line 106 of file resource_access_if.h.

reference

using scc::indexed_resource_access_if::reference = value_type&

Definition at line 108 of file resource_access_if.h.

value_type

using scc::indexed_resource_access_if::value_type = resource_access_if

Definition at line 105 of file resource_access_if.h.

Member Function Documentation

operator[]() [1/2]

virtual const_reference scc::indexed_resource_access_if::operator[] ( std::size_t idx ) const

pure virtualnoexcept

get value at index

get value at index with range checking

Parameters

idx

the index

Returns

the value

operator[]() [2/2]

virtual reference scc::indexed_resource_access_if::operator[] ( std::size_t idx )

pure virtualnoexcept

get value at index

get value at index with range checking

Parameters

idx

the index

Returns

the value

size()

virtual std::size_t scc::indexed_resource_access_if::size ( )

pure virtual

get the size of the resource

Returns

size of the resource in bytes

Implemented in scc::sc_register_indexed< DATATYPE, SIZE, START >, and scc::sc_register_mem< DATATYPE, SIZE >.

---

The documentation for this class was generated from the following file:

• /home/eyck/Projects/MINRES/SystemC-Components/src/components/scc/resource_access_if.h
