axi::pin::axi4_initiator< CFG > Struct Template Reference

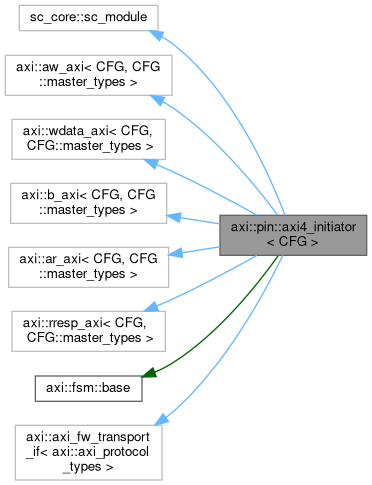

Inheritance diagram for axi::pin::axi4_initiator< CFG >:

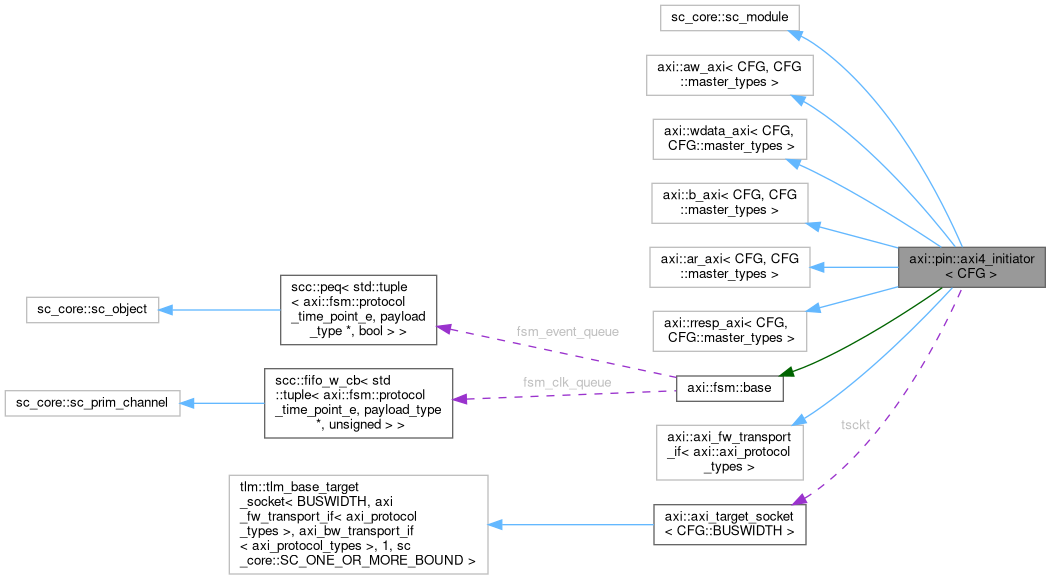

Collaboration diagram for axi::pin::axi4_initiator< CFG >:
Public Types | |
| using | payload_type = axi::axi_protocol_types::tlm_payload_type |
| using | phase_type = axi::axi_protocol_types::tlm_phase_type |
Public Member Functions | |
| SC_HAS_PROCESS (axi4_initiator) | |
| axi4_initiator (sc_core::sc_module_name const &nm, bool pipelined_wrreq=false) | |
| Public Member Functions inherited from axi::aw_axi< CFG, CFG::master_types > | |
| void | bind_aw (aw_axi< CFG, OTYPES > &o) |
| Public Member Functions inherited from axi::wdata_axi< CFG, CFG::master_types > | |
| void | bind_w (wdata_axi< CFG, OTYPES > &o) |
| void | bind_wdata (wdata_axi< CFG, OTYPES > &o) |
| Public Member Functions inherited from axi::b_axi< CFG, CFG::master_types > | |
| void | bind_b (b_axi< CFG, OTYPES > &o) |
| Public Member Functions inherited from axi::ar_axi< CFG, CFG::master_types > | |
| void | bind_ar (ar_axi< CFG, OTYPES > &o) |
| Public Member Functions inherited from axi::rresp_axi< CFG, CFG::master_types > | |
| void | bind_r (rresp_axi< CFG, OTYPES > &o) |
| void | bind_rresp (rresp_axi< CFG, OTYPES > &o) |
Public Attributes | |
| sc_core::sc_in< bool > | clk_i {"clk_i"} |
| axi::axi_target_socket< CFG::BUSWIDTH > | tsckt {"tsckt"} |
| cci::cci_param< bool > | pipelined_wrreq {"pipelined_wrreq", false} |
| cci::cci_param< bool > | mask_axi_id {"mask_axi_id", false} |
| Public Attributes inherited from axi::aw_axi< CFG, CFG::master_types > | |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< CFG::IDWIDTH > > | aw_id |
| CFG::master_types::template m2s_t< sc_dt::sc_uint< CFG::ADDRWIDTH > > | aw_addr |
| CFG::master_types::template s2m_t< bool > | aw_ready |
| CFG::master_types::template m2s_full_t< bool > | aw_lock |
| CFG::master_types::template m2s_t< bool > | aw_valid |
| CFG::master_types::template m2s_t< sc_dt::sc_uint< 3 > > | aw_prot |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< 3 > > | aw_size |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< 4 > > | aw_cache |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< 2 > > | aw_burst |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< 4 > > | aw_qos |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< 4 > > | aw_region |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< 8 > > | aw_len |
| CFG::master_types::template m2s_opt_t< typename CFG::user_t > | aw_user |
| CFG::master_types::template m2s_opt_t< sc_dt::sc_uint< 6 > > | aw_atop |
| Public Attributes inherited from axi::wdata_axi< CFG, CFG::master_types > | |
| CFG::master_types::template m2s_opt_t< sc_dt::sc_uint< CFG::IDWIDTH > > | w_id |
| CFG::master_types::template m2s_t< typename CFG::data_t > | w_data |
| CFG::master_types::template m2s_t< typename CFG::strb_t > | w_strb |
| CFG::master_types::template m2s_full_t< bool > | w_last |
| CFG::master_types::template m2s_t< bool > | w_valid |
| CFG::master_types::template s2m_t< bool > | w_ready |
| CFG::master_types::template m2s_opt_t< typename CFG::user_t > | w_user |
| CFG::master_types::template m2s_full_t< bool > | w_ack |
| CFG::master_types::template m2s_opt_t< bool > | w_trace |
| Public Attributes inherited from axi::b_axi< CFG, CFG::master_types > | |
| CFG::master_types::template s2m_t< bool > | b_valid |
| CFG::master_types::template m2s_t< bool > | b_ready |
| CFG::master_types::template s2m_full_t< sc_dt::sc_uint< CFG::IDWIDTH > > | b_id |
| CFG::master_types::template s2m_t< sc_dt::sc_uint< 2 > > | b_resp |
| CFG::master_types::template s2m_opt_t< typename CFG::user_t > | b_user |
| CFG::master_types::template s2m_opt_t< bool > | b_trace |
| Public Attributes inherited from axi::ar_axi< CFG, CFG::master_types > | |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< CFG::IDWIDTH > > | ar_id |
| CFG::master_types::template m2s_t< sc_dt::sc_uint< CFG::ADDRWIDTH > > | ar_addr |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< 8 > > | ar_len |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< 3 > > | ar_size |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< 2 > > | ar_burst |
| CFG::master_types::template m2s_full_t< bool > | ar_lock |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< 4 > > | ar_cache |
| CFG::master_types::template m2s_t< sc_dt::sc_uint< 3 > > | ar_prot |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< 4 > > | ar_qos |
| CFG::master_types::template m2s_full_t< sc_dt::sc_uint< 4 > > | ar_region |
| CFG::master_types::template m2s_t< bool > | ar_valid |
| CFG::master_types::template s2m_t< bool > | ar_ready |
| CFG::master_types::template m2s_opt_t< typename CFG::user_t > | ar_user |
| Public Attributes inherited from axi::rresp_axi< CFG, CFG::master_types > | |
| CFG::master_types::template s2m_full_t< sc_dt::sc_uint< CFG::IDWIDTH > > | r_id |
| CFG::master_types::template s2m_t< typename CFG::data_t > | r_data |
| CFG::master_types::template s2m_t< sc_dt::sc_uint< 2 > > | r_resp |
| CFG::master_types::template s2m_full_t< bool > | r_last |
| CFG::master_types::template s2m_t< bool > | r_valid |
| CFG::master_types::template m2s_t< bool > | r_ready |
| CFG::master_types::template s2m_opt_t< typename CFG::user_t > | r_user |
| CFG::master_types::template s2m_opt_t< bool > | r_trace |
Additional Inherited Members | |
| Protected Types inherited from axi::fsm::base | |
| using | payload_type = axi::axi_protocol_types::tlm_payload_type |
| aliases used in the class | |
| using | phase_type = axi::axi_protocol_types::tlm_phase_type |
| Protected Member Functions inherited from axi::fsm::base | |
| base (size_t transfer_width, bool coherent=false, axi::fsm::protocol_time_point_e wr_start=axi::fsm::RequestPhaseBeg) | |
| the constructor | |
| virtual | ~base () |
| the destructor | |
| tlm::tlm_sync_enum | nb_fw (payload_type &trans, phase_type const &phase, sc_core::sc_time &t) |
| triggers the FSM based on TLM phases in the forward path. Should be called from np_transport_fw of the respective derived class | |
| tlm::tlm_sync_enum | nb_bw (payload_type &trans, phase_type const &phase, sc_core::sc_time &t) |
| triggers the FSM based on TLM phases in the backward path. Should be called from np_transport_bw of the respective derived class | |
| axi::fsm::fsm_handle * | find_or_create (payload_type *gp=nullptr, bool ace=false) |
| retrieve the FSM handle based on the transaction passed. If non exist one will be created | |
| void | process_fsm_event () |
| processes the fsm_event_queue and triggers FSM aligned | |
| void | process_fsm_clk_queue () |
| processes the fsm_clk_queue and triggers the FSM accordingly. Should be registered as rising-edge clock callback | |
| void | schedule (axi::fsm::protocol_time_point_e e, tlm::scc::tlm_gp_shared_ptr &gp, unsigned cycles) |
| processes the fsm_sched_queue and propagates events to fsm_clk_queue. Should be registered as falling-edge clock callback | |
| void | schedule (axi::fsm::protocol_time_point_e e, payload_type *gp, unsigned cycles) |
| void | schedule (axi::fsm::protocol_time_point_e e, tlm::scc::tlm_gp_shared_ptr &gp, sc_core::sc_time delay, bool syncronize=false) |
| processes the fsm_sched_queue and propagates events to fsm_clk_queue. Should be registered as falling-edge clock callback | |
| void | schedule (axi::fsm::protocol_time_point_e e, payload_type *gp, sc_core::sc_time delay, bool syncronize=false) |
| void | react (axi::fsm::protocol_time_point_e event, tlm::scc::tlm_gp_shared_ptr &trans) |
| triggers the FSM with event and given transaction | |
| void | react (axi::fsm::protocol_time_point_e event, payload_type *trans) |
| void | react (axi::fsm::protocol_time_point_e, axi::fsm::fsm_handle *) |
| Protected Attributes inherited from axi::fsm::base | |
| ::scc::peq< std::tuple< axi::fsm::protocol_time_point_e, payload_type *, bool > > | fsm_event_queue |
| ::scc::fifo_w_cb< std::tuple< axi::fsm::protocol_time_point_e, payload_type *, unsigned > > | fsm_clk_queue |
| sc_core::sc_process_handle | fsm_clk_queue_hndl |
| size_t | transfer_width_in_bytes |
| const axi::fsm::protocol_time_point_e | wr_start |
| const bool | coherent |
| std::unordered_map< payload_type *, axi::fsm::fsm_handle * > | active_fsm |
| std::deque< axi::fsm::fsm_handle * > | idle_fsm |
| std::vector< std::unique_ptr< axi::fsm::fsm_handle > > | allocated_fsm |
| std::string | instance_name |
| sc_core::sc_event | finish_evt |
Detailed Description
template<typename CFG>
struct axi::pin::axi4_initiator< CFG >
struct axi::pin::axi4_initiator< CFG >
Definition at line 37 of file axi4_initiator.h.
Member Typedef Documentation
◆ payload_type
template<typename CFG>
| using axi::pin::axi4_initiator< CFG >::payload_type = axi::axi_protocol_types::tlm_payload_type |
Definition at line 47 of file axi4_initiator.h.
◆ phase_type
template<typename CFG>
| using axi::pin::axi4_initiator< CFG >::phase_type = axi::axi_protocol_types::tlm_phase_type |
Definition at line 48 of file axi4_initiator.h.
Constructor & Destructor Documentation
◆ axi4_initiator()
template<typename CFG>
|
inline |
Definition at line 58 of file axi4_initiator.h.
Member Data Documentation
◆ clk_i
template<typename CFG>
| sc_core::sc_in<bool> axi::pin::axi4_initiator< CFG >::clk_i {"clk_i"} |
Definition at line 50 of file axi4_initiator.h.
◆ mask_axi_id
template<typename CFG>
| cci::cci_param<bool> axi::pin::axi4_initiator< CFG >::mask_axi_id {"mask_axi_id", false} |
Definition at line 56 of file axi4_initiator.h.
◆ pipelined_wrreq
template<typename CFG>
| cci::cci_param<bool> axi::pin::axi4_initiator< CFG >::pipelined_wrreq {"pipelined_wrreq", false} |
Definition at line 54 of file axi4_initiator.h.
◆ tsckt
template<typename CFG>
| axi::axi_target_socket<CFG::BUSWIDTH> axi::pin::axi4_initiator< CFG >::tsckt {"tsckt"} |
Definition at line 52 of file axi4_initiator.h.
The documentation for this struct was generated from the following file:
- /home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/axi/pin/axi4_initiator.h
