The TLM2 transaction recorder. More...

#include <tlc_recorder.h>

Inheritance diagram for tilelink::scv::tlc_recorder_module< BUSWIDTH, TYPES >:

[legend]

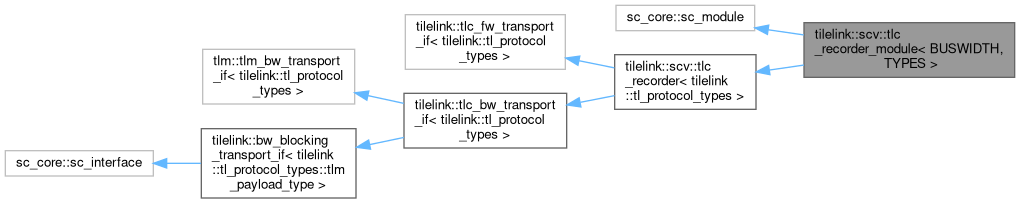

Collaboration diagram for tilelink::scv::tlc_recorder_module< BUSWIDTH, TYPES >:

[legend]

Public Types
using	BASE = tlc_recorder<TYPES>
Public Types inherited from tilelink::scv::tlc_recorder< tilelink::tl_protocol_types >
using	initiator_socket_type
using	target_socket_type
using	recording_types
using	mm
using	tlm_recording_payload

Public Member Functions
	SC_HAS_PROCESS (axitlm_recorder_module)
	tlc_recorder_module (sc_core::sc_module_name name, bool recording_enabled=true, SCVNS scv_tr_db *tr_db=SCVNS scv_tr_db::get_default_db())
	The constructor of the component.
BASE::template target_socket_type< BUSWIDTH >::base_type::fw_interface_type *	get_fw_if () override
	the port where fw accesses are forwarded to
BASE::template target_socket_type< BUSWIDTH >::base_type::bw_interface_type *	get_bw_if () override
	the port where bw accesses are forwarded to
Public Member Functions inherited from tilelink::scv::tlc_recorder< tilelink::tl_protocol_types >
	SC_HAS_PROCESS (tlc_recorder< tilelink::tl_protocol_types >)
	tlc_recorder (const char name, unsigned bus_width, bool recording_enabled=true, SCVNS scv_tr_db tr_db=SCVNS scv_tr_db::get_default_db())
	The constructor of the component.
tlm::tlm_sync_enum	nb_transport_fw (typename tilelink::tl_protocol_types::tlm_payload_type &trans, typename tilelink::tl_protocol_types::tlm_phase_type &phase, sc_core::sc_time &delay) override
	The non-blocking forward transport function.
tlm::tlm_sync_enum	nb_transport_bw (typename tilelink::tl_protocol_types::tlm_payload_type &trans, typename tilelink::tl_protocol_types::tlm_phase_type &phase, sc_core::sc_time &delay) override
	The non-blocking backward transport function.
void	b_transport (typename tilelink::tl_protocol_types::tlm_payload_type &trans, sc_core::sc_time &delay) override
	The blocking transport function.
void	b_snoop (typename tilelink::tl_protocol_types::tlm_payload_type &trans, sc_core::sc_time &delay) override
	The blocking snoop function.
bool	get_direct_mem_ptr (typename tilelink::tl_protocol_types::tlm_payload_type &trans, tlm::tlm_dmi &dmi_data) override
	The direct memory interface forward function.
void	invalidate_direct_mem_ptr (sc_dt::uint64 start_addr, sc_dt::uint64 end_addr) override
	The direct memory interface backward function.
unsigned int	transport_dbg (typename tilelink::tl_protocol_types::tlm_payload_type &trans) override
	The debug transportfunction.
bool	isRecordingBlockingTxEnabled () const
	get the current state of transaction recording
bool	isRecordingNonBlockingTxEnabled () const
	get the current state of transaction recording
Public Member Functions inherited from tilelink::bw_blocking_transport_if< tilelink::tl_protocol_types::tlm_payload_type >
virtual void	b_snoop (tilelink::tl_protocol_types::tlm_payload_type &trans, sc_core::sc_time &t)=0
	snoop access to a snooped master

Public Attributes
BASE::template target_socket_type< BUSWIDTH >	ts {"ts"}
	The target socket of the recorder to be bound to the initiator.
BASE::template initiator_socket_type< BUSWIDTH >	is {"is"}
	The initiator to be bound to the target socket.
Public Attributes inherited from tilelink::scv::tlc_recorder< tilelink::tl_protocol_types >
sc_core::sc_attribute< bool >	enableBlTracing
	the attribute to selectively enable/disable recording of blocking protocol tx
sc_core::sc_attribute< bool >	enableNbTracing
	the attribute to selectively enable/disable recording of non-blocking protocol tx
sc_core::sc_attribute< bool >	enableTimedTracing
	the attribute to selectively enable/disable timed recording
sc_core::sc_attribute< bool >	enableDmiTracing
	the attribute to selectively enable/disable DMI recording
sc_core::sc_attribute< bool >	enableTrDbgTracing
	the attribute to selectively enable/disable transport dbg recording
sc_core::sc_attribute< bool >	enableProtocolChecker
	the attribute to enable/disable protocol checking
sc_core::sc_attribute< unsigned >	rd_response_timeout
sc_core::sc_attribute< unsigned >	wr_response_timeout

Additional Inherited Members
Protected Member Functions inherited from tilelink::scv::tlc_recorder< tilelink::tl_protocol_types >
void	initialize_streams ()

Detailed Description

template<unsigned int BUSWIDTH, typename TYPES = tilelink::tl_protocol_types>
class tilelink::scv::tlc_recorder_module< BUSWIDTH, TYPES >

The TLM2 transaction recorder.

This module records all TLM transaction to a SCV transaction stream for further viewing and analysis. The handle of the created transaction is storee in an tlm_extension so that another instance of the scv_tlm2_recorder e.g. further down the opath can link to it. The transaction recorder is simply bound between an existing pair of initiator and target sockets

Definition at line 344 of file tlc_recorder.h.

Member Typedef Documentation

◆ BASE

template<unsigned int BUSWIDTH, typename TYPES = tilelink::tl_protocol_types>

using tilelink::scv::tlc_recorder_module< BUSWIDTH, TYPES >::BASE = tlc_recorder<TYPES>

Definition at line 346 of file tlc_recorder.h.

Constructor & Destructor Documentation

◆ tlc_recorder_module()

template<unsigned int BUSWIDTH, typename TYPES = tilelink::tl_protocol_types>

tilelink::scv::tlc_recorder_module< BUSWIDTH, TYPES >::tlc_recorder_module	(	sc_core::sc_module_name	name,
		bool	recording_enabled = true,
		SCVNS scv_tr_db *	tr_db = SCVNS scv_tr_db::get_default_db() )

inline

The constructor of the component.

Parameters

name	is the SystemC module name of the recorder
tr_db	is a pointer to a transaction recording database. If none is provided the default one is retrieved. If this database is not initialized (e.g. by not calling scv_tr_db::set_default_db() ) recording is disabled.

Definition at line 361 of file tlc_recorder.h.

◆ ~tlc_recorder_module()

template<unsigned int BUSWIDTH, typename TYPES = tilelink::tl_protocol_types>

tilelink::scv::tlc_recorder_module< BUSWIDTH, TYPES >::~tlc_recorder_module ( )

inline

Definition at line 378 of file tlc_recorder.h.

Member Function Documentation

◆ get_bw_if()

template<unsigned int BUSWIDTH, typename TYPES = tilelink::tl_protocol_types>

BASE::template target_socket_type< BUSWIDTH >::base_type::bw_interface_type * tilelink::scv::tlc_recorder_module< BUSWIDTH, TYPES >::get_bw_if ( )

inlineoverridevirtual

the port where bw accesses are forwarded to

Implements tilelink::scv::tlc_recorder< tilelink::tl_protocol_types >.

Definition at line 384 of file tlc_recorder.h.

◆ get_fw_if()

template<unsigned int BUSWIDTH, typename TYPES = tilelink::tl_protocol_types>

BASE::template target_socket_type< BUSWIDTH >::base_type::fw_interface_type * tilelink::scv::tlc_recorder_module< BUSWIDTH, TYPES >::get_fw_if ( )

inlineoverridevirtual

the port where fw accesses are forwarded to

Implements tilelink::scv::tlc_recorder< tilelink::tl_protocol_types >.

Definition at line 380 of file tlc_recorder.h.

Member Data Documentation

◆ is

template<unsigned int BUSWIDTH, typename TYPES = tilelink::tl_protocol_types>

BASE::template initiator_socket_type<BUSWIDTH> tilelink::scv::tlc_recorder_module< BUSWIDTH, TYPES >::is {"is"}

The initiator to be bound to the target socket.

Definition at line 351 of file tlc_recorder.h.

◆ ts

template<unsigned int BUSWIDTH, typename TYPES = tilelink::tl_protocol_types>

BASE::template target_socket_type<BUSWIDTH> tilelink::scv::tlc_recorder_module< BUSWIDTH, TYPES >::ts {"ts"}

The target socket of the recorder to be bound to the initiator.

Definition at line 349 of file tlc_recorder.h.

The documentation for this class was generated from the following file:

/home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/tilelink/scv/tlc_recorder.h
