The TLM2 transaction recorder. More...

#include <tlc_recorder.h>

Inheritance diagram for tilelink::scv::tlc_recorder< TYPES >:

[legend]

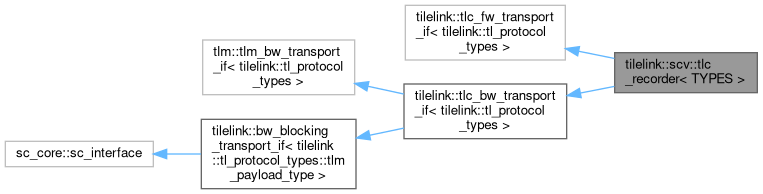

Collaboration diagram for tilelink::scv::tlc_recorder< TYPES >:

[legend]

Public Types
template<unsigned int BUSWIDTH = 32, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
using	initiator_socket_type = tilelink::tlc_initiator_socket<BUSWIDTH, TYPES, N, POL>
template<unsigned int BUSWIDTH = 32, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
using	target_socket_type = tilelink::tlc_target_socket<BUSWIDTH, TYPES, N, POL>
using	recording_types = impl::tlc_recording_types<TYPES>
using	mm = tlm::scc::tlm_mm<recording_types>
using	tlm_recording_payload = impl::tlc_recording_payload<TYPES>

Public Member Functions
	SC_HAS_PROCESS (tlc_recorder< TYPES >)
virtual tilelink::tlc_fw_transport_if< TYPES > *	get_fw_if ()=0
	the port where fw accesses are forwarded to
virtual tilelink::tlc_bw_transport_if< TYPES > *	get_bw_if ()=0
	the port where bw accesses are forwarded to
	tlc_recorder (const char name, unsigned bus_width, bool recording_enabled=true, SCVNS scv_tr_db tr_db=SCVNS scv_tr_db::get_default_db())
	The constructor of the component.
tlm::tlm_sync_enum	nb_transport_fw (typename TYPES::tlm_payload_type &trans, typename TYPES::tlm_phase_type &phase, sc_core::sc_time &delay) override
	The non-blocking forward transport function.
tlm::tlm_sync_enum	nb_transport_bw (typename TYPES::tlm_payload_type &trans, typename TYPES::tlm_phase_type &phase, sc_core::sc_time &delay) override
	The non-blocking backward transport function.
void	b_transport (typename TYPES::tlm_payload_type &trans, sc_core::sc_time &delay) override
	The blocking transport function.
void	b_snoop (typename TYPES::tlm_payload_type &trans, sc_core::sc_time &delay) override
	The blocking snoop function.
bool	get_direct_mem_ptr (typename TYPES::tlm_payload_type &trans, tlm::tlm_dmi &dmi_data) override
	The direct memory interface forward function.
void	invalidate_direct_mem_ptr (sc_dt::uint64 start_addr, sc_dt::uint64 end_addr) override
	The direct memory interface backward function.
unsigned int	transport_dbg (typename TYPES::tlm_payload_type &trans) override
	The debug transportfunction.
bool	isRecordingBlockingTxEnabled () const
	get the current state of transaction recording
bool	isRecordingNonBlockingTxEnabled () const
	get the current state of transaction recording
Public Member Functions inherited from tilelink::bw_blocking_transport_if< tilelink::tl_protocol_types::tlm_payload_type >
virtual void	b_snoop (tilelink::tl_protocol_types::tlm_payload_type &trans, sc_core::sc_time &t)=0
	snoop access to a snooped master

Public Attributes
sc_core::sc_attribute< bool >	enableBlTracing
	the attribute to selectively enable/disable recording of blocking protocol tx
sc_core::sc_attribute< bool >	enableNbTracing
	the attribute to selectively enable/disable recording of non-blocking protocol tx
sc_core::sc_attribute< bool >	enableTimedTracing {"enableTimedTracing", true}
	the attribute to selectively enable/disable timed recording
sc_core::sc_attribute< bool >	enableDmiTracing {"enableDmiTracing", false}
	the attribute to selectively enable/disable DMI recording
sc_core::sc_attribute< bool >	enableTrDbgTracing {"enableTrDbgTracing", false}
	the attribute to selectively enable/disable transport dbg recording
sc_core::sc_attribute< bool >	enableProtocolChecker {"enableProtocolChecker", false}
	the attribute to enable/disable protocol checking
sc_core::sc_attribute< unsigned >	rd_response_timeout {"rd_response_timeout", 0}
sc_core::sc_attribute< unsigned >	wr_response_timeout {"wr_response_timeout", 0}

Protected Member Functions
void	initialize_streams ()

Detailed Description

template<typename TYPES = tilelink::tl_protocol_types>
class tilelink::scv::tlc_recorder< TYPES >

The TLM2 transaction recorder.

This module records all TLM transaction to a SCV transaction stream for further viewing and analysis. The handle of the created transaction is storee in an tlm_extension so that another instance of the tlc_recorder e.g. further down the path can link to it.

Definition at line 79 of file tlc_recorder.h.

Member Typedef Documentation

◆ initiator_socket_type

template<typename TYPES = tilelink::tl_protocol_types>

template<unsigned int BUSWIDTH = 32, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

using tilelink::scv::tlc_recorder< TYPES >::initiator_socket_type = tilelink::tlc_initiator_socket<BUSWIDTH, TYPES, N, POL>

Definition at line 82 of file tlc_recorder.h.

◆ mm

template<typename TYPES = tilelink::tl_protocol_types>

using tilelink::scv::tlc_recorder< TYPES >::mm = tlm::scc::tlm_mm<recording_types>

Definition at line 88 of file tlc_recorder.h.

◆ recording_types

template<typename TYPES = tilelink::tl_protocol_types>

using tilelink::scv::tlc_recorder< TYPES >::recording_types = impl::tlc_recording_types<TYPES>

Definition at line 87 of file tlc_recorder.h.

◆ target_socket_type

template<typename TYPES = tilelink::tl_protocol_types>

template<unsigned int BUSWIDTH = 32, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

using tilelink::scv::tlc_recorder< TYPES >::target_socket_type = tilelink::tlc_target_socket<BUSWIDTH, TYPES, N, POL>

Definition at line 85 of file tlc_recorder.h.

◆ tlm_recording_payload

template<typename TYPES = tilelink::tl_protocol_types>

using tilelink::scv::tlc_recorder< TYPES >::tlm_recording_payload = impl::tlc_recording_payload<TYPES>

Definition at line 89 of file tlc_recorder.h.

Constructor & Destructor Documentation

◆ tlc_recorder()

template<typename TYPES = tilelink::tl_protocol_types>

tilelink::scv::tlc_recorder< TYPES >::tlc_recorder	(	const char *	name,
		unsigned	bus_width,
		bool	recording_enabled = true,
		SCVNS scv_tr_db *	tr_db = SCVNS scv_tr_db::get_default_db() )

inline

The constructor of the component.

Parameters

name	is the SystemC module name of the recorder
tr_db	is a pointer to a transaction recording database. If none is provided the default one is retrieved. If this database is not initialized (e.g. by not calling scv_tr_db::set_default_db() ) recording is disabled.

Definition at line 129 of file tlc_recorder.h.

◆ ~tlc_recorder()

template<typename TYPES = tilelink::tl_protocol_types>

virtual tilelink::scv::tlc_recorder< TYPES >::~tlc_recorder ( )

inlineoverridevirtual

Definition at line 140 of file tlc_recorder.h.

Member Function Documentation

◆ b_snoop()

template<typename TYPES>

void tilelink::scv::tlc_recorder< TYPES >::b_snoop	(	typename TYPES::tlm_payload_type &	trans,
		sc_core::sc_time &	delay )

override

The blocking snoop function.

This type of transaction is forwarded and recorded to a transaction stream named "b_tx" with current timestamps. Additionally a "b_tx_timed" is been created recording the transactions at their annotated delay

Parameters

trans	is the generic payload of the transaction
delay	is the annotated delay

Definition at line 459 of file tlc_recorder.h.

◆ b_transport()

template<typename TYPES>

void tilelink::scv::tlc_recorder< TYPES >::b_transport	(	typename TYPES::tlm_payload_type &	trans,
		sc_core::sc_time &	delay )

override

The blocking transport function.

This type of transaction is forwarded and recorded to a transaction stream named "b_tx" with current timestamps. Additionally a "b_tx_timed" is been created recording the transactions at their annotated delay

Parameters

trans	is the generic payload of the transaction
delay	is the annotated delay

Definition at line 396 of file tlc_recorder.h.

◆ get_bw_if()

template<typename TYPES = tilelink::tl_protocol_types>

virtual tilelink::tlc_bw_transport_if< TYPES > * tilelink::scv::tlc_recorder< TYPES >::get_bw_if ( )

pure virtual

the port where bw accesses are forwarded to

Implemented in tilelink::scv::tlc_recorder_module< BUSWIDTH, TYPES >.

◆ get_direct_mem_ptr()

template<typename TYPES>

bool tilelink::scv::tlc_recorder< TYPES >::get_direct_mem_ptr	(	typename TYPES::tlm_payload_type &	trans,
		tlm::tlm_dmi &	dmi_data )

override

The direct memory interface forward function.

This type of transaction is just forwarded and not recorded.

Parameters

trans	is the generic payload of the transaction
dmi_data	is the structure holding the dmi information

Returns: if the dmi structure is valid

Definition at line 778 of file tlc_recorder.h.

◆ get_fw_if()

template<typename TYPES = tilelink::tl_protocol_types>

virtual tilelink::tlc_fw_transport_if< TYPES > * tilelink::scv::tlc_recorder< TYPES >::get_fw_if ( )

pure virtual

the port where fw accesses are forwarded to

Implemented in tilelink::scv::tlc_recorder_module< BUSWIDTH, TYPES >.

◆ initialize_streams()

template<typename TYPES = tilelink::tl_protocol_types>

void tilelink::scv::tlc_recorder< TYPES >::initialize_streams ( )

inlineprotected

Definition at line 288 of file tlc_recorder.h.

◆ invalidate_direct_mem_ptr()

template<typename TYPES>

void tilelink::scv::tlc_recorder< TYPES >::invalidate_direct_mem_ptr	(	sc_dt::uint64	start_addr,
		sc_dt::uint64	end_addr )

override

The direct memory interface backward function.

This type of transaction is just forwarded and not recorded.

Parameters

start_addr	is the start address of the memory area being invalid
end_addr	is the end address of the memory area being invalid

Definition at line 796 of file tlc_recorder.h.

◆ isRecordingBlockingTxEnabled()

template<typename TYPES = tilelink::tl_protocol_types>

bool tilelink::scv::tlc_recorder< TYPES >::isRecordingBlockingTxEnabled ( ) const

inline

get the current state of transaction recording

Returns: if true transaction recording is enabled otherwise transaction recording is bypassed

Definition at line 232 of file tlc_recorder.h.

◆ isRecordingNonBlockingTxEnabled()

template<typename TYPES = tilelink::tl_protocol_types>

bool tilelink::scv::tlc_recorder< TYPES >::isRecordingNonBlockingTxEnabled ( ) const

inline

get the current state of transaction recording

Returns: if true transaction recording is enabled otherwise transaction recording is bypassed

Definition at line 238 of file tlc_recorder.h.

◆ nb_transport_bw()

template<typename TYPES>

tlm::tlm_sync_enum tilelink::scv::tlc_recorder< TYPES >::nb_transport_bw	(	typename TYPES::tlm_payload_type &	trans,
		typename TYPES::tlm_phase_type &	phase,
		sc_core::sc_time &	delay )

override

The non-blocking backward transport function.

This type of transaction is forwarded and recorded to a transaction stream named "nb_bw" with current timestamps.

Parameters

trans	is the generic payload of the transaction
phase	is the current phase of the transaction
delay	is the annotated delay

Returns: the sync state of the transaction

Definition at line 633 of file tlc_recorder.h.

◆ nb_transport_fw()

template<typename TYPES>

tlm::tlm_sync_enum tilelink::scv::tlc_recorder< TYPES >::nb_transport_fw	(	typename TYPES::tlm_payload_type &	trans,
		typename TYPES::tlm_phase_type &	phase,
		sc_core::sc_time &	delay )

override

The non-blocking forward transport function.

This type of transaction is forwarded and recorded to a transaction stream named "nb_fw" with current timestamps.

Parameters

trans	is the generic payload of the transaction
phase	is the current phase of the transaction
delay	is the annotated delay

Returns: the sync state of the transaction

Definition at line 545 of file tlc_recorder.h.

◆ transport_dbg()

template<typename TYPES>

unsigned int tilelink::scv::tlc_recorder< TYPES >::transport_dbg ( typename TYPES::tlm_payload_type & trans )

override

The debug transportfunction.

This type of transaction is just forwarded and not recorded.

Parameters

trans is the generic payload of the transaction

Returns: the sync state of the transaction

Definition at line 813 of file tlc_recorder.h.

Member Data Documentation

◆ enableBlTracing

template<typename TYPES = tilelink::tl_protocol_types>

sc_core::sc_attribute<bool> tilelink::scv::tlc_recorder< TYPES >::enableBlTracing

the attribute to selectively enable/disable recording of blocking protocol tx

Definition at line 94 of file tlc_recorder.h.

◆ enableDmiTracing

template<typename TYPES = tilelink::tl_protocol_types>

sc_core::sc_attribute<bool> tilelink::scv::tlc_recorder< TYPES >::enableDmiTracing {"enableDmiTracing", false}

the attribute to selectively enable/disable DMI recording

Definition at line 103 of file tlc_recorder.h.

◆ enableNbTracing

template<typename TYPES = tilelink::tl_protocol_types>

sc_core::sc_attribute<bool> tilelink::scv::tlc_recorder< TYPES >::enableNbTracing

the attribute to selectively enable/disable recording of non-blocking protocol tx

Definition at line 97 of file tlc_recorder.h.

◆ enableProtocolChecker

template<typename TYPES = tilelink::tl_protocol_types>

sc_core::sc_attribute<bool> tilelink::scv::tlc_recorder< TYPES >::enableProtocolChecker {"enableProtocolChecker", false}

the attribute to enable/disable protocol checking

Definition at line 109 of file tlc_recorder.h.

◆ enableTimedTracing

template<typename TYPES = tilelink::tl_protocol_types>

sc_core::sc_attribute<bool> tilelink::scv::tlc_recorder< TYPES >::enableTimedTracing {"enableTimedTracing", true}

the attribute to selectively enable/disable timed recording

Definition at line 100 of file tlc_recorder.h.

◆ enableTrDbgTracing

template<typename TYPES = tilelink::tl_protocol_types>

sc_core::sc_attribute<bool> tilelink::scv::tlc_recorder< TYPES >::enableTrDbgTracing {"enableTrDbgTracing", false}

the attribute to selectively enable/disable transport dbg recording

Definition at line 106 of file tlc_recorder.h.

◆ rd_response_timeout

template<typename TYPES = tilelink::tl_protocol_types>

sc_core::sc_attribute<unsigned> tilelink::scv::tlc_recorder< TYPES >::rd_response_timeout {"rd_response_timeout", 0}

Definition at line 111 of file tlc_recorder.h.

◆ wr_response_timeout

template<typename TYPES = tilelink::tl_protocol_types>

sc_core::sc_attribute<unsigned> tilelink::scv::tlc_recorder< TYPES >::wr_response_timeout {"wr_response_timeout", 0}

Definition at line 113 of file tlc_recorder.h.

The documentation for this class was generated from the following file:

/home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/tilelink/scv/tlc_recorder.h

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Detailed Description

Member Typedef Documentation

◆ initiator_socket_type

◆ mm

◆ recording_types

◆ target_socket_type

◆ tlm_recording_payload

Constructor & Destructor Documentation

◆ tlc_recorder()

◆ ~tlc_recorder()

Member Function Documentation

◆ b_snoop()

◆ b_transport()

◆ get_bw_if()

◆ get_direct_mem_ptr()

◆ get_fw_if()

◆ initialize_streams()

◆ invalidate_direct_mem_ptr()

◆ isRecordingBlockingTxEnabled()

◆ isRecordingNonBlockingTxEnabled()

◆ nb_transport_bw()

◆ nb_transport_fw()

◆ transport_dbg()

Member Data Documentation

◆ enableBlTracing

◆ enableDmiTracing

◆ enableNbTracing

◆ enableProtocolChecker

◆ enableTimedTracing

◆ enableTrDbgTracing

◆ rd_response_timeout

◆ wr_response_timeout
