The TLM2 transaction recorder. More...

#include <chi_recorder.h>

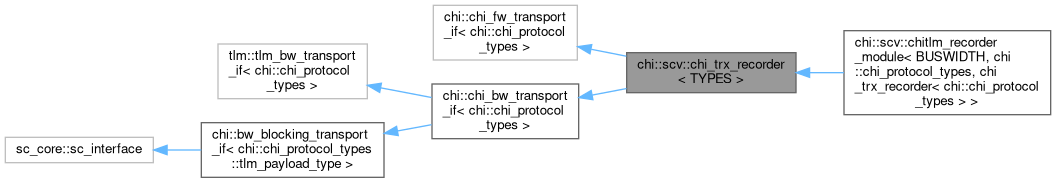

Inheritance diagram for chi::scv::chi_trx_recorder< TYPES >:

[legend]

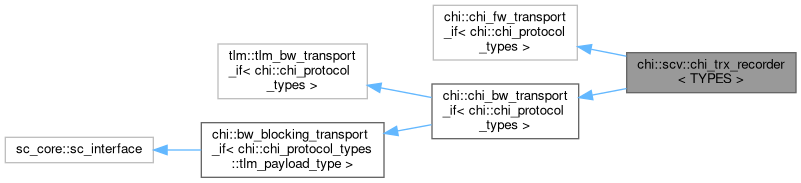

Collaboration diagram for chi::scv::chi_trx_recorder< TYPES >:

[legend]

Public Types
template<unsigned int BUSWIDTH = 32, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
using	initiator_socket_type = chi::chi_initiator_socket<BUSWIDTH, TYPES, N, POL>
template<unsigned int BUSWIDTH = 32, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
using	target_socket_type = chi::chi_target_socket<BUSWIDTH, TYPES, N, POL>

Public Member Functions
virtual tlm::tlm_fw_transport_if< TYPES > *	get_fw_if ()=0
	the port where fw accesses are forwarded to
virtual tlm::tlm_bw_transport_if< TYPES > *	get_bw_if ()=0
	the port where bw accesses are forwarded to
	chi_trx_recorder (const char name, bool recording_enabled=true, SCVNS scv_tr_db tr_db=SCVNS scv_tr_db::get_default_db())
	The constructor of the component.
tlm::tlm_sync_enum	nb_transport_fw (typename TYPES::tlm_payload_type &trans, typename TYPES::tlm_phase_type &phase, sc_core::sc_time &delay) override
	The non-blocking forward transport function.
tlm::tlm_sync_enum	nb_transport_bw (typename TYPES::tlm_payload_type &trans, typename TYPES::tlm_phase_type &phase, sc_core::sc_time &delay) override
	The non-blocking backward transport function.
void	b_transport (typename TYPES::tlm_payload_type &trans, sc_core::sc_time &delay) override
	The blocking transport function.
void	b_snoop (typename TYPES::tlm_payload_type &trans, sc_core::sc_time &delay) override
	The blocking snoop function.
bool	get_direct_mem_ptr (typename TYPES::tlm_payload_type &trans, tlm::tlm_dmi &dmi_data) override
	The direct memory interface forward function.
void	invalidate_direct_mem_ptr (sc_dt::uint64 start_addr, sc_dt::uint64 end_addr) override
	The direct memory interface backward function.
unsigned int	transport_dbg (typename TYPES::tlm_payload_type &trans) override
	The debug transportfunction.
bool	isRecordingBlockingTxEnabled () const
	get the current state of transaction recording
bool	isRecordingNonBlockingTxEnabled () const
	get the current state of transaction recording
Public Member Functions inherited from chi::bw_blocking_transport_if< chi::chi_protocol_types::tlm_payload_type >
virtual void	b_snoop (chi::chi_protocol_types::tlm_payload_type &trans, sc_core::sc_time &t)=0
	snoop access to a snooped master

Public Attributes
cci::cci_param< bool >	enableBlTracing
	the attribute to selectively enable/disable recording of blocking protocol tx
cci::cci_param< bool >	enableNbTracing
	the attribute to selectively enable/disable recording of non-blocking protocol tx
cci::cci_param< bool >	enableTimedTracing {"enableTimedTracing", true}
	the attribute to selectively enable/disable timed recording
cci::cci_param< bool >	enableDmiTracing {"enableDmiTracing", false}
	the attribute to selectively enable/disable DMI recording
cci::cci_param< bool >	enableTrDbgTracing {"enableTrDbgTracing", false}
	the attribute to selectively enable/disable transport dbg recording

Protected Member Functions
void	initialize_streams ()

Detailed Description

template<typename TYPES = chi::chi_protocol_types>
class chi::scv::chi_trx_recorder< TYPES >

The TLM2 transaction recorder.

This module records all TLM transaction to a SCV transaction stream for further viewing and analysis. The handle of the created transaction is storee in an tlm_extension so that another instance of the chi_recorder e.g. further down the path can link to it.

Definition at line 57 of file chi_recorder.h.

Member Typedef Documentation

◆ initiator_socket_type

template<typename TYPES = chi::chi_protocol_types>

template<unsigned int BUSWIDTH = 32, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

using chi::scv::chi_trx_recorder< TYPES >::initiator_socket_type = chi::chi_initiator_socket<BUSWIDTH, TYPES, N, POL>

Definition at line 61 of file chi_recorder.h.

◆ target_socket_type

template<typename TYPES = chi::chi_protocol_types>

template<unsigned int BUSWIDTH = 32, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

using chi::scv::chi_trx_recorder< TYPES >::target_socket_type = chi::chi_target_socket<BUSWIDTH, TYPES, N, POL>

Definition at line 64 of file chi_recorder.h.

Constructor & Destructor Documentation

◆ chi_trx_recorder()

template<typename TYPES = chi::chi_protocol_types>

chi::scv::chi_trx_recorder< TYPES >::chi_trx_recorder	(	const char *	name,
		bool	recording_enabled = true,
		SCVNS scv_tr_db *	tr_db = SCVNS scv_tr_db::get_default_db() )

inline

The constructor of the component.

Parameters

name	is the SystemC module name of the recorder
tr_db	is a pointer to a transaction recording database. If none is provided the default one is retrieved. If this database is not initialized (e.g. by not calling scv_tr_db::set_default_db() ) recording is disabled.

Definition at line 95 of file chi_recorder.h.

◆ ~chi_trx_recorder()

template<typename TYPES = chi::chi_protocol_types>

virtual chi::scv::chi_trx_recorder< TYPES >::~chi_trx_recorder ( )

inlineoverridevirtual

Definition at line 104 of file chi_recorder.h.

Member Function Documentation

◆ b_snoop()

template<typename TYPES>

void chi::scv::chi_trx_recorder< TYPES >::b_snoop	(	typename TYPES::tlm_payload_type &	trans,
		sc_core::sc_time &	delay )

override

The blocking snoop function.

This type of transaction is forwarded and recorded to a transaction stream named "b_tx" with current timestamps. Additionally a "b_tx_timed" is been created recording the transactions at their annotated delay

Parameters

trans	is the generic payload of the transaction
delay	is the annotated delay

Definition at line 362 of file chi_recorder.h.

◆ b_transport()

template<typename TYPES>

void chi::scv::chi_trx_recorder< TYPES >::b_transport	(	typename TYPES::tlm_payload_type &	trans,
		sc_core::sc_time &	delay )

override

The blocking transport function.

This type of transaction is forwarded and recorded to a transaction stream named "b_tx" with current timestamps. Additionally a "b_tx_timed" is been created recording the transactions at their annotated delay

Parameters

trans	is the generic payload of the transaction
delay	is the annotated delay

Definition at line 309 of file chi_recorder.h.

◆ get_direct_mem_ptr()

template<typename TYPES>

bool chi::scv::chi_trx_recorder< TYPES >::get_direct_mem_ptr	(	typename TYPES::tlm_payload_type &	trans,
		tlm::tlm_dmi &	dmi_data )

override

The direct memory interface forward function.

This type of transaction is just forwarded and not recorded.

Parameters

trans	is the generic payload of the transaction
dmi_data	is the structure holding the dmi information

Returns: if the dmi structure is valid

Definition at line 666 of file chi_recorder.h.

◆ initialize_streams()

template<typename TYPES = chi::chi_protocol_types>

void chi::scv::chi_trx_recorder< TYPES >::initialize_streams ( )

inlineprotected

Definition at line 253 of file chi_recorder.h.

◆ invalidate_direct_mem_ptr()

template<typename TYPES>

void chi::scv::chi_trx_recorder< TYPES >::invalidate_direct_mem_ptr	(	sc_dt::uint64	start_addr,
		sc_dt::uint64	end_addr )

override

The direct memory interface backward function.

This type of transaction is just forwarded and not recorded.

Parameters

start_addr	is the start address of the memory area being invalid
end_addr	is the end address of the memory area being invalid

Definition at line 685 of file chi_recorder.h.

◆ isRecordingBlockingTxEnabled()

template<typename TYPES = chi::chi_protocol_types>

bool chi::scv::chi_trx_recorder< TYPES >::isRecordingBlockingTxEnabled ( ) const

inline

get the current state of transaction recording

Returns: if true transaction recording is enabled otherwise transaction recording is bypassed

Definition at line 200 of file chi_recorder.h.

◆ isRecordingNonBlockingTxEnabled()

template<typename TYPES = chi::chi_protocol_types>

bool chi::scv::chi_trx_recorder< TYPES >::isRecordingNonBlockingTxEnabled ( ) const

inline

get the current state of transaction recording

Returns: if true transaction recording is enabled otherwise transaction recording is bypassed

Definition at line 206 of file chi_recorder.h.

◆ nb_transport_bw()

template<typename TYPES>

tlm::tlm_sync_enum chi::scv::chi_trx_recorder< TYPES >::nb_transport_bw	(	typename TYPES::tlm_payload_type &	trans,
		typename TYPES::tlm_phase_type &	phase,
		sc_core::sc_time &	delay )

override

The non-blocking backward transport function.

This type of transaction is forwarded and recorded to a transaction stream named "nb_bw" with current timestamps.

Parameters

trans	is the generic payload of the transaction
phase	is the current phase of the transaction
delay	is the annotated delay

Returns: the sync state of the transaction

Definition at line 487 of file chi_recorder.h.

◆ nb_transport_fw()

template<typename TYPES>

tlm::tlm_sync_enum chi::scv::chi_trx_recorder< TYPES >::nb_transport_fw	(	typename TYPES::tlm_payload_type &	trans,
		typename TYPES::tlm_phase_type &	phase,
		sc_core::sc_time &	delay )

override

The non-blocking forward transport function.

This type of transaction is forwarded and recorded to a transaction stream named "nb_fw" with current timestamps.

Parameters

trans	is the generic payload of the transaction
phase	is the current phase of the transaction
delay	is the annotated delay

Returns: the sync state of the transaction

Definition at line 415 of file chi_recorder.h.

◆ transport_dbg()

template<typename TYPES>

unsigned int chi::scv::chi_trx_recorder< TYPES >::transport_dbg ( typename TYPES::tlm_payload_type & trans )

override

The debug transportfunction.

The debug transport function.

This type of transaction is just forwarded and not recorded.

Parameters

trans is the generic payload of the transaction

Returns: the sync state of the transaction

Definition at line 702 of file chi_recorder.h.

Member Data Documentation

◆ enableBlTracing

template<typename TYPES = chi::chi_protocol_types>

cci::cci_param<bool> chi::scv::chi_trx_recorder< TYPES >::enableBlTracing

the attribute to selectively enable/disable recording of blocking protocol tx

Definition at line 67 of file chi_recorder.h.

◆ enableDmiTracing

template<typename TYPES = chi::chi_protocol_types>

cci::cci_param<bool> chi::scv::chi_trx_recorder< TYPES >::enableDmiTracing {"enableDmiTracing", false}

the attribute to selectively enable/disable DMI recording

Definition at line 76 of file chi_recorder.h.

◆ enableNbTracing

template<typename TYPES = chi::chi_protocol_types>

cci::cci_param<bool> chi::scv::chi_trx_recorder< TYPES >::enableNbTracing

the attribute to selectively enable/disable recording of non-blocking protocol tx

Definition at line 70 of file chi_recorder.h.

◆ enableTimedTracing

template<typename TYPES = chi::chi_protocol_types>

cci::cci_param<bool> chi::scv::chi_trx_recorder< TYPES >::enableTimedTracing {"enableTimedTracing", true}

the attribute to selectively enable/disable timed recording

Definition at line 73 of file chi_recorder.h.

◆ enableTrDbgTracing

template<typename TYPES = chi::chi_protocol_types>

cci::cci_param<bool> chi::scv::chi_trx_recorder< TYPES >::enableTrDbgTracing {"enableTrDbgTracing", false}

the attribute to selectively enable/disable transport dbg recording

Definition at line 79 of file chi_recorder.h.

The documentation for this class was generated from the following file:

/home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/chi/scv/chi_recorder.h
