chi::chi_target_socket< BUSWIDTH, TYPES, N, POL > Struct Template Reference

#include <chi_tlm.h>

Inheritance diagram for chi::chi_target_socket< BUSWIDTH, TYPES, N, POL >:

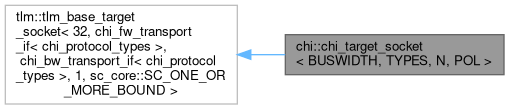

Collaboration diagram for chi::chi_target_socket< BUSWIDTH, TYPES, N, POL >:

Public Types
using	base_type = tlm::tlm_base_target_socket<BUSWIDTH, chi_fw_transport_if<TYPES>, chi_bw_transport_if<TYPES>, N, POL>
	base type alias

Public Member Functions
	chi_target_socket ()
	default constructor using a generated instance name
	chi_target_socket (const char *name)
	constructor with instance name
const char *	kind () const override
	get the kind of this sc_object

Detailed Description

template<unsigned int BUSWIDTH = 32, typename TYPES = chi_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
struct chi::chi_target_socket< BUSWIDTH, TYPES, N, POL >

CHI target socket class using payloads carrying CHI transaction request and response (RN to HN request and HN to RN response)

Definition at line 975 of file chi_tlm.h.

Member Typedef Documentation

base_type

template<unsigned int BUSWIDTH = 32, typename TYPES = chi_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

using chi::chi_target_socket< BUSWIDTH, TYPES, N, POL >::base_type = tlm::tlm_base_target_socket<BUSWIDTH, chi_fw_transport_if<TYPES>, chi_bw_transport_if<TYPES>, N, POL>

base type alias

Definition at line 977 of file chi_tlm.h.

Constructor & Destructor Documentation

chi_target_socket() [1/2]

template<unsigned int BUSWIDTH = 32, typename TYPES = chi_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

chi::chi_target_socket< BUSWIDTH, TYPES, N, POL >::chi_target_socket ( )

inline

default constructor using a generated instance name

Definition at line 981 of file chi_tlm.h.

chi_target_socket() [2/2]

template<unsigned int BUSWIDTH = 32, typename TYPES = chi_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

chi::chi_target_socket< BUSWIDTH, TYPES, N, POL >::chi_target_socket ( const char * name )

inlineexplicit

constructor with instance name

Parameters

name

Definition at line 987 of file chi_tlm.h.

Member Function Documentation

kind()

template<unsigned int BUSWIDTH = 32, typename TYPES = chi_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

const char * chi::chi_target_socket< BUSWIDTH, TYPES, N, POL >::kind ( ) const

inlineoverride

get the kind of this sc_object

Returns

the kind string

Definition at line 993 of file chi_tlm.h.

---

The documentation for this struct was generated from the following file:

• /home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/chi/chi_tlm.h
