axi::pe::ace_lite_initiator< BUSWIDTH, TYPES, N, POL > Class Template Reference
#include <axi_initiator.h>

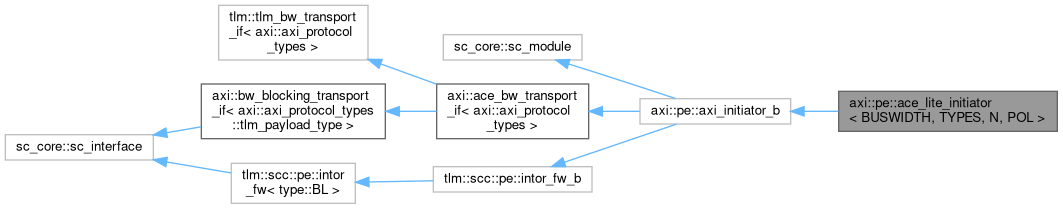

Inheritance diagram for axi::pe::ace_lite_initiator< BUSWIDTH, TYPES, N, POL >:

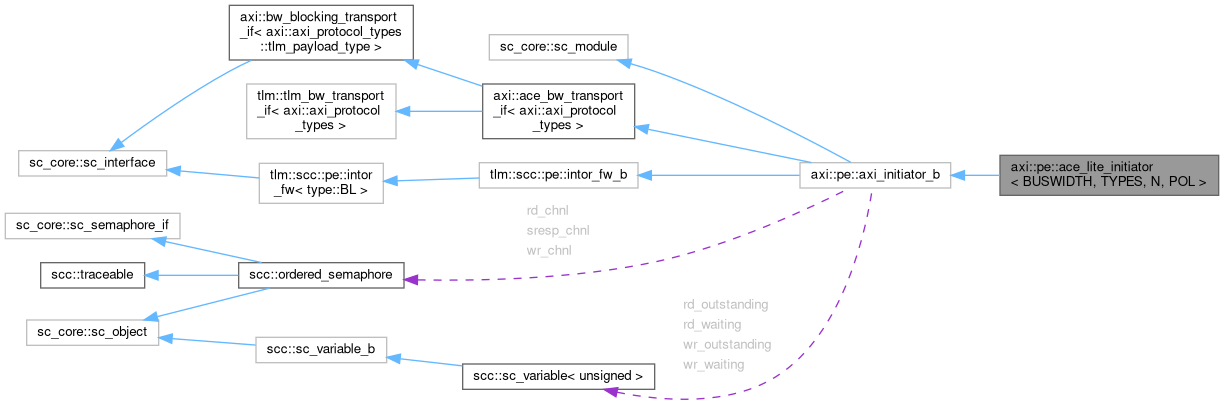

Collaboration diagram for axi::pe::ace_lite_initiator< BUSWIDTH, TYPES, N, POL >:
Public Types | |
| using | base = axi_initiator_b |
| using | payload_type = base::payload_type |
| using | phase_type = base::phase_type |
| Public Types inherited from axi::pe::axi_initiator_b | |
| using | payload_type = axi::axi_protocol_types::tlm_payload_type |
| using | phase_type = axi::axi_protocol_types::tlm_phase_type |
Public Member Functions | |
| ace_lite_initiator (const sc_core::sc_module_name &nm, axi::axi_initiator_socket< BUSWIDTH, TYPES, N, POL > &socket_) | |
| the constructor | |
| ace_lite_initiator (ace_lite_initiator const &)=delete | |
| ace_lite_initiator (ace_lite_initiator &&)=delete | |
| ace_lite_initiator & | operator= (ace_lite_initiator const &)=delete |
| ace_lite_initiator & | operator= (ace_lite_initiator &&)=delete |
| Public Member Functions inherited from axi::pe::axi_initiator_b | |
| void | b_snoop (payload_type &trans, sc_core::sc_time &t) override |
| snoop access to a snooped master | |
| tlm::tlm_sync_enum | nb_transport_bw (payload_type &trans, phase_type &phase, sc_core::sc_time &t) override |
| void | invalidate_direct_mem_ptr (sc_dt::uint64 start_range, sc_dt::uint64 end_range) override |
| size_t | get_transferwith_in_bytes () const |
| void | transport (payload_type &trans, bool blocking) override |
| The forward transport function. It behaves blocking and is re-entrant. | |
| void | snoop_resp (payload_type &trans, bool sync=false) override |
| triggers a non-blocking snoop response if the snoop callback does not do so. | |
| axi_initiator_b (sc_core::sc_module_name nm, sc_core::sc_port_b< axi::axi_fw_transport_if< axi_protocol_types > > &port, size_t transfer_width, flavor_e flavor) | |
| axi_initiator_b (axi_initiator_b const &)=delete | |
| axi_initiator_b (axi_initiator_b &&)=delete | |
| axi_initiator_b & | operator= (axi_initiator_b const &)=delete |
| axi_initiator_b & | operator= (axi_initiator_b &&)=delete |
| void | add_protocol_cb (axi::fsm::protocol_time_point_e e, std::function< void(payload_type &, bool)> cb) |
| register a callback for a certain time point | |
Additional Inherited Members | |
| Public Attributes inherited from axi::pe::axi_initiator_b | |
| sc_core::sc_in< bool > | clk_i {"clk_i"} |
| sc_core::sc_export< tlm::scc::pe::intor_fw_b > | fw_i {"fw_i"} |
| sc_core::sc_port< tlm::scc::pe::intor_bw_b, 1, sc_core::SC_ZERO_OR_MORE_BOUND > | bw_o {"bw_o"} |
| cci::cci_param< bool > | data_interleaving {"data_interleaving", false} |
| cci::cci_param< unsigned > | artv {"artv", 1} |
| Read address valid to next read address valid. | |
| cci::cci_param< unsigned > | awtv {"awtv", 1} |
| Write address valid to next write address valid. | |
| cci::cci_param< unsigned > | wbv {"wbv", 1} |
| Write data handshake to next beat valid. | |
| cci::cci_param< unsigned > | rbr {"rbr", 0} |
| Read data valid to same beat ready. | |
| cci::cci_param< unsigned > | br {"br", 0} |
| Write response valid to ready. | |
| cci::cci_param< unsigned > | rla {"rla", 1} |
| Read last data handshake to acknowledge. | |
| cci::cci_param< unsigned > | ba {"ba", 1} |
| Write response handshake to acknowledge. | |
| cci::cci_param< bool > | enable_id_serializing {"enable_id_serializing", false} |
| Quirks enable. | |
| cci::cci_param< unsigned > | outstanding_snoops {"outstanding_snoops", 8} |
| number of snoops which can be handled | |
| Protected Member Functions inherited from axi::pe::axi_initiator_b | |
| unsigned | calculate_beats (payload_type &p) |
| void | snoop_thread () |
| Protected Attributes inherited from axi::pe::axi_initiator_b | |
| const size_t | transfer_width_in_bytes |
| const flavor_e | flavor |
| sc_core::sc_port_b< axi::axi_fw_transport_if< axi_protocol_types > > & | socket_fw |
| std::unordered_map< void *, tx_state * > | tx_state_by_tx |
| std::unordered_map< unsigned, scc::ordered_semaphore * > | id_mtx |
| tlm_utils::peq_with_get< payload_type > | snp_peq {"snp_peq"} |
| std::unordered_map< void *, tx_state * > | snp_state_by_id |
| scc::ordered_semaphore | rd_chnl {1} |
| scc::ordered_semaphore | wr_chnl {1} |
| scc::ordered_semaphore | sresp_chnl {1} |
| sc_core::sc_event | any_tx_finished |
| sc_core::sc_time | clk_period {10, sc_core::SC_NS} |
| scc::sc_variable< unsigned > | rd_waiting {"RdWaiting", 0} |
| scc::sc_variable< unsigned > | wr_waiting {"WrWaiting", 0} |
| scc::sc_variable< unsigned > | rd_outstanding {"RdOutstanding", 0} |
| scc::sc_variable< unsigned > | wr_outstanding {"WrOutstanding", 0} |
Detailed Description
template<unsigned int BUSWIDTH = 32, typename TYPES = axi::axi_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
class axi::pe::ace_lite_initiator< BUSWIDTH, TYPES, N, POL >
class axi::pe::ace_lite_initiator< BUSWIDTH, TYPES, N, POL >
the axi initiator socket protocol engine adapted to a particular initiator socket configuration
Definition at line 223 of file axi_initiator.h.
Member Typedef Documentation
◆ base
template<unsigned int BUSWIDTH = 32, typename TYPES = axi::axi_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using axi::pe::ace_lite_initiator< BUSWIDTH, TYPES, N, POL >::base = axi_initiator_b |
Definition at line 225 of file axi_initiator.h.
◆ payload_type
template<unsigned int BUSWIDTH = 32, typename TYPES = axi::axi_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using axi::pe::ace_lite_initiator< BUSWIDTH, TYPES, N, POL >::payload_type = base::payload_type |
Definition at line 227 of file axi_initiator.h.
◆ phase_type
template<unsigned int BUSWIDTH = 32, typename TYPES = axi::axi_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using axi::pe::ace_lite_initiator< BUSWIDTH, TYPES, N, POL >::phase_type = base::phase_type |
Definition at line 228 of file axi_initiator.h.
Constructor & Destructor Documentation
◆ ace_lite_initiator()
template<unsigned int BUSWIDTH = 32, typename TYPES = axi::axi_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
|
inline |
the constructor
- Parameters
-
socket reference to the initiator socket used to send and receive transactions
Definition at line 233 of file axi_initiator.h.
The documentation for this class was generated from the following file:
- /home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/pe/axi_initiator.h
