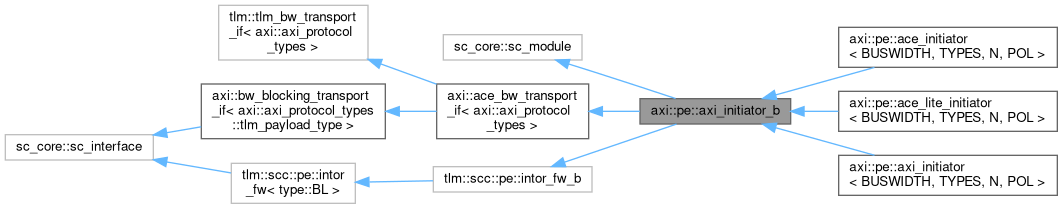

Inheritance diagram for axi::pe::axi_initiator_b:

[legend]

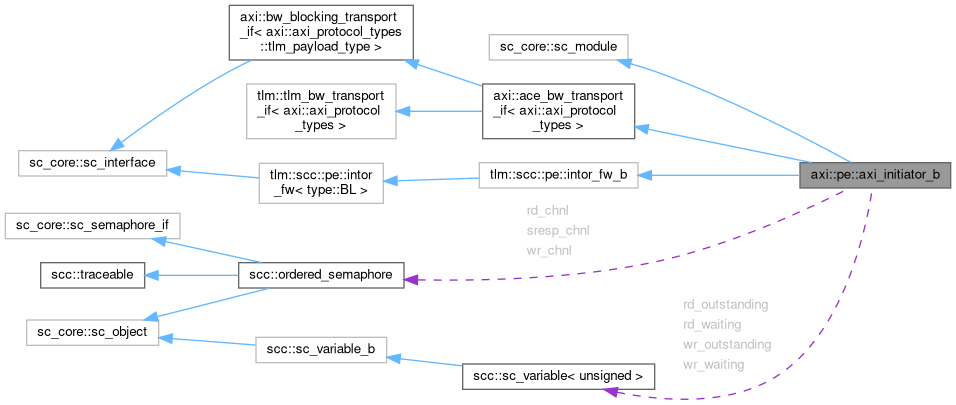

Collaboration diagram for axi::pe::axi_initiator_b:

[legend]

Classes
struct	tx_state

Public Types
using	payload_type = axi::axi_protocol_types::tlm_payload_type
using	phase_type = axi::axi_protocol_types::tlm_phase_type

Public Member Functions
void	b_snoop (payload_type &trans, sc_core::sc_time &t) override
	snoop access to a snooped master
tlm::tlm_sync_enum	nb_transport_bw (payload_type &trans, phase_type &phase, sc_core::sc_time &t) override
void	invalidate_direct_mem_ptr (sc_dt::uint64 start_range, sc_dt::uint64 end_range) override
size_t	get_transferwith_in_bytes () const
void	transport (payload_type &trans, bool blocking) override
	The forward transport function. It behaves blocking and is re-entrant.
void	snoop_resp (payload_type &trans, bool sync=false) override
	triggers a non-blocking snoop response if the snoop callback does not do so.
	axi_initiator_b (sc_core::sc_module_name nm, sc_core::sc_port_b< axi::axi_fw_transport_if< axi_protocol_types > > &port, size_t transfer_width, flavor_e flavor)
	axi_initiator_b (axi_initiator_b const &)=delete
	axi_initiator_b (axi_initiator_b &&)=delete
axi_initiator_b &	operator= (axi_initiator_b const &)=delete
axi_initiator_b &	operator= (axi_initiator_b &&)=delete
void	add_protocol_cb (axi::fsm::protocol_time_point_e e, std::function< void(payload_type &, bool)> cb)
	register a callback for a certain time point

Public Attributes
sc_core::sc_in< bool >	clk_i {"clk_i"}
sc_core::sc_export< tlm::scc::pe::intor_fw_b >	fw_i {"fw_i"}
sc_core::sc_port< tlm::scc::pe::intor_bw_b, 1, sc_core::SC_ZERO_OR_MORE_BOUND >	bw_o {"bw_o"}
cci::cci_param< bool >	data_interleaving {"data_interleaving", false}
cci::cci_param< unsigned >	artv {"artv", 1}
	Read address valid to next read address valid.
cci::cci_param< unsigned >	awtv {"awtv", 1}
	Write address valid to next write address valid.
cci::cci_param< unsigned >	wbv {"wbv", 1}
	Write data handshake to next beat valid.
cci::cci_param< unsigned >	rbr {"rbr", 0}
	Read data valid to same beat ready.
cci::cci_param< unsigned >	br {"br", 0}
	Write response valid to ready.
cci::cci_param< unsigned >	rla {"rla", 1}
	Read last data handshake to acknowledge.
cci::cci_param< unsigned >	ba {"ba", 1}
	Write response handshake to acknowledge.
cci::cci_param< bool >	enable_id_serializing {"enable_id_serializing", false}
	Quirks enable.
cci::cci_param< unsigned >	outstanding_snoops {"outstanding_snoops", 8}
	number of snoops which can be handled

Protected Member Functions
unsigned	calculate_beats (payload_type &p)
void	snoop_thread ()

Protected Attributes
const size_t	transfer_width_in_bytes
const flavor_e	flavor
sc_core::sc_port_b< axi::axi_fw_transport_if< axi_protocol_types > > &	socket_fw
std::unordered_map< void , tx_state >	tx_state_by_tx
std::unordered_map< unsigned, scc::ordered_semaphore * >	id_mtx
tlm_utils::peq_with_get< payload_type >	snp_peq {"snp_peq"}
std::unordered_map< void , tx_state >	snp_state_by_id
scc::ordered_semaphore	rd_chnl {1}
scc::ordered_semaphore	wr_chnl {1}
scc::ordered_semaphore	sresp_chnl {1}
sc_core::sc_event	any_tx_finished
sc_core::sc_time	clk_period {10, sc_core::SC_NS}
scc::sc_variable< unsigned >	rd_waiting {"RdWaiting", 0}
scc::sc_variable< unsigned >	wr_waiting {"WrWaiting", 0}
scc::sc_variable< unsigned >	rd_outstanding {"RdOutstanding", 0}
scc::sc_variable< unsigned >	wr_outstanding {"WrOutstanding", 0}

Detailed Description

Definition at line 34 of file axi_initiator.h.

Member Typedef Documentation

◆ payload_type

using axi::pe::axi_initiator_b::payload_type = axi::axi_protocol_types::tlm_payload_type

Definition at line 41 of file axi_initiator.h.

◆ phase_type

using axi::pe::axi_initiator_b::phase_type = axi::axi_protocol_types::tlm_phase_type

Definition at line 42 of file axi_initiator.h.

Constructor & Destructor Documentation

◆ axi_initiator_b()

axi::pe::axi_initiator_b::axi_initiator_b	(	sc_core::sc_module_name	nm,
		sc_core::sc_port_b< axi::axi_fw_transport_if< axi_protocol_types > > &	port,
		size_t	transfer_width,
		flavor_e	flavor )

Definition at line 39 of file axi_initiator.cpp.

◆ ~axi_initiator_b()

axi::pe::axi_initiator_b::~axi_initiator_b ( )

virtual

Definition at line 54 of file axi_initiator.cpp.

Member Function Documentation

◆ add_protocol_cb()

void axi::pe::axi_initiator_b::add_protocol_cb	(	axi::fsm::protocol_time_point_e	e,
		std::function< void(payload_type &, bool)>	cb )

inline

register a callback for a certain time point

This function allows to register a callback for certain time points of a transaction (see axi::fsm::protocol_time_point_e). The callback will be invoked after the FSM-actions are executed.

Parameters

e	the timepoint
cb	the callback taking a reference to the transaction and a bool indicating a snoop if true

Definition at line 122 of file axi_initiator.h.

◆ b_snoop()

void axi::pe::axi_initiator_b::b_snoop	(	payload_type &	trans,
		sc_core::sc_time &	t )

overridevirtual

snoop access to a snooped master

Parameters

trans	the payload
t	annotated delay

Implements axi::bw_blocking_transport_if< axi::axi_protocol_types::tlm_payload_type >.

Definition at line 66 of file axi_initiator.cpp.

◆ calculate_beats()

unsigned axi::pe::axi_initiator_b::calculate_beats ( payload_type & p )

inlineprotected

Definition at line 129 of file axi_initiator.h.

◆ get_transferwith_in_bytes()

size_t axi::pe::axi_initiator_b::get_transferwith_in_bytes ( ) const

inline

Definition at line 56 of file axi_initiator.h.

◆ invalidate_direct_mem_ptr()

void axi::pe::axi_initiator_b::invalidate_direct_mem_ptr	(	sc_dt::uint64	start_range,
		sc_dt::uint64	end_range )

override

Definition at line 91 of file axi_initiator.cpp.

◆ nb_transport_bw()

tlm::tlm_sync_enum axi::pe::axi_initiator_b::nb_transport_bw	(	payload_type &	trans,
		phase_type &	phase,
		sc_core::sc_time &	t )

override

Definition at line 74 of file axi_initiator.cpp.

◆ snoop_resp()

void axi::pe::axi_initiator_b::snoop_resp	(	payload_type &	trans,
		bool	sync = false )

overridevirtual

triggers a non-blocking snoop response if the snoop callback does not do so.

Parameters

trans
sync	when true send response with next rising clock edge otherwise send immediately

Implements tlm::scc::pe::intor_fw< type::BL >.

Definition at line 362 of file axi_initiator.cpp.

◆ snoop_thread()

void axi::pe::axi_initiator_b::snoop_thread ( )

protected

Definition at line 320 of file axi_initiator.cpp.

◆ transport()

void axi::pe::axi_initiator_b::transport	(	payload_type &	trans,
		bool	blocking )

overridevirtual

The forward transport function. It behaves blocking and is re-entrant.

This function initiates the forward transport either using b_transport() if blocking=true or the nb_transport_* interface.

Parameters

trans	the transaction to send
blocking	execute in using the blocking interface

Timing

Implements tlm::scc::pe::intor_fw< type::BL >.

Definition at line 113 of file axi_initiator.cpp.

Member Data Documentation

◆ any_tx_finished

sc_core::sc_event axi::pe::axi_initiator_b::any_tx_finished

protected

Definition at line 159 of file axi_initiator.h.

◆ artv

cci::cci_param<unsigned> axi::pe::axi_initiator_b::artv {"artv", 1}

Read address valid to next read address valid.

Definition at line 95 of file axi_initiator.h.

◆ awtv

cci::cci_param<unsigned> axi::pe::axi_initiator_b::awtv {"awtv", 1}

Write address valid to next write address valid.

Definition at line 97 of file axi_initiator.h.

◆ ba

cci::cci_param<unsigned> axi::pe::axi_initiator_b::ba {"ba", 1}

Write response handshake to acknowledge.

Definition at line 107 of file axi_initiator.h.

◆ br

cci::cci_param<unsigned> axi::pe::axi_initiator_b::br {"br", 0}

Write response valid to ready.

Definition at line 103 of file axi_initiator.h.

◆ bw_o

sc_core::sc_port<tlm::scc::pe::intor_bw_b, 1, sc_core::SC_ZERO_OR_MORE_BOUND> axi::pe::axi_initiator_b::bw_o {"bw_o"}

Definition at line 48 of file axi_initiator.h.

◆ clk_i

sc_core::sc_in<bool> axi::pe::axi_initiator_b::clk_i {"clk_i"}

Definition at line 44 of file axi_initiator.h.

◆ clk_period

sc_core::sc_time axi::pe::axi_initiator_b::clk_period {10, sc_core::SC_NS}

protected

Definition at line 161 of file axi_initiator.h.

◆ data_interleaving

cci::cci_param<bool> axi::pe::axi_initiator_b::data_interleaving {"data_interleaving", false}

Definition at line 93 of file axi_initiator.h.

◆ enable_id_serializing

cci::cci_param<bool> axi::pe::axi_initiator_b::enable_id_serializing {"enable_id_serializing", false}

Quirks enable.

Definition at line 109 of file axi_initiator.h.

◆ flavor

const flavor_e axi::pe::axi_initiator_b::flavor

protected

Definition at line 138 of file axi_initiator.h.

◆ fw_i

sc_core::sc_export<tlm::scc::pe::intor_fw_b> axi::pe::axi_initiator_b::fw_i {"fw_i"}

Definition at line 46 of file axi_initiator.h.

◆ id_mtx

std::unordered_map<unsigned, scc::ordered_semaphore*> axi::pe::axi_initiator_b::id_mtx

protected

Definition at line 147 of file axi_initiator.h.

◆ outstanding_snoops

cci::cci_param<unsigned> axi::pe::axi_initiator_b::outstanding_snoops {"outstanding_snoops", 8}

number of snoops which can be handled

Definition at line 111 of file axi_initiator.h.

◆ rbr

cci::cci_param<unsigned> axi::pe::axi_initiator_b::rbr {"rbr", 0}

Read data valid to same beat ready.

Definition at line 101 of file axi_initiator.h.

◆ rd_chnl

scc::ordered_semaphore axi::pe::axi_initiator_b::rd_chnl {1}

protected

Definition at line 153 of file axi_initiator.h.

◆ rd_outstanding

scc::sc_variable<unsigned> axi::pe::axi_initiator_b::rd_outstanding {"RdOutstanding", 0}

protected

Definition at line 165 of file axi_initiator.h.

◆ rd_waiting

scc::sc_variable<unsigned> axi::pe::axi_initiator_b::rd_waiting {"RdWaiting", 0}

protected

Definition at line 163 of file axi_initiator.h.

◆ rla

cci::cci_param<unsigned> axi::pe::axi_initiator_b::rla {"rla", 1}

Read last data handshake to acknowledge.

Definition at line 105 of file axi_initiator.h.

◆ snp_peq

tlm_utils::peq_with_get<payload_type> axi::pe::axi_initiator_b::snp_peq {"snp_peq"}

protected

Definition at line 149 of file axi_initiator.h.

◆ snp_state_by_id

std::unordered_map<void*, tx_state*> axi::pe::axi_initiator_b::snp_state_by_id

protected

Definition at line 151 of file axi_initiator.h.

◆ socket_fw

sc_core::sc_port_b<axi::axi_fw_transport_if<axi_protocol_types> >& axi::pe::axi_initiator_b::socket_fw

protected

Definition at line 140 of file axi_initiator.h.

◆ sresp_chnl

scc::ordered_semaphore axi::pe::axi_initiator_b::sresp_chnl {1}

protected

Definition at line 157 of file axi_initiator.h.

◆ transfer_width_in_bytes

const size_t axi::pe::axi_initiator_b::transfer_width_in_bytes

protected

Definition at line 136 of file axi_initiator.h.

◆ tx_state_by_tx

std::unordered_map<void*, tx_state*> axi::pe::axi_initiator_b::tx_state_by_tx

protected

Definition at line 146 of file axi_initiator.h.

◆ wbv

cci::cci_param<unsigned> axi::pe::axi_initiator_b::wbv {"wbv", 1}

Write data handshake to next beat valid.

Definition at line 99 of file axi_initiator.h.

◆ wr_chnl

scc::ordered_semaphore axi::pe::axi_initiator_b::wr_chnl {1}

protected

Definition at line 155 of file axi_initiator.h.

◆ wr_outstanding

scc::sc_variable<unsigned> axi::pe::axi_initiator_b::wr_outstanding {"WrOutstanding", 0}

protected

Definition at line 166 of file axi_initiator.h.

◆ wr_waiting

scc::sc_variable<unsigned> axi::pe::axi_initiator_b::wr_waiting {"WrWaiting", 0}

protected

Definition at line 164 of file axi_initiator.h.

The documentation for this class was generated from the following files:

/home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/pe/axi_initiator.h
/home/eyck/Projects/MINRES/SystemC-Components/third_party/axi_chi/axi/pe/axi_initiator.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ payload_type

◆ phase_type

Constructor & Destructor Documentation

◆ axi_initiator_b()

◆ ~axi_initiator_b()

Member Function Documentation

◆ add_protocol_cb()

◆ b_snoop()

◆ calculate_beats()

◆ get_transferwith_in_bytes()

◆ invalidate_direct_mem_ptr()

◆ nb_transport_bw()

◆ snoop_resp()

◆ snoop_thread()

◆ transport()

Member Data Documentation

◆ any_tx_finished

◆ artv

◆ awtv

◆ ba

◆ br

◆ bw_o

◆ clk_i

◆ clk_period

◆ data_interleaving

◆ enable_id_serializing

◆ flavor

◆ fw_i

◆ id_mtx

◆ outstanding_snoops

◆ rbr

◆ rd_chnl

◆ rd_outstanding

◆ rd_waiting

◆ rla

◆ snp_peq

◆ snp_state_by_id

◆ socket_fw

◆ sresp_chnl

◆ transfer_width_in_bytes

◆ tx_state_by_tx

◆ wbv

◆ wr_chnl

◆ wr_outstanding

◆ wr_waiting
