apb::pe::apb_initiator< BUSWIDTH, TYPES, N, POL > Class Template Reference

#include <apb_initiator.h>

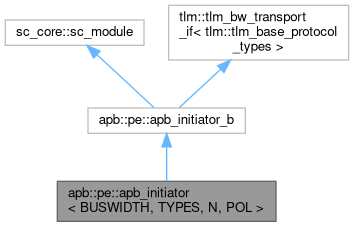

Inheritance diagram for apb::pe::apb_initiator< BUSWIDTH, TYPES, N, POL >:

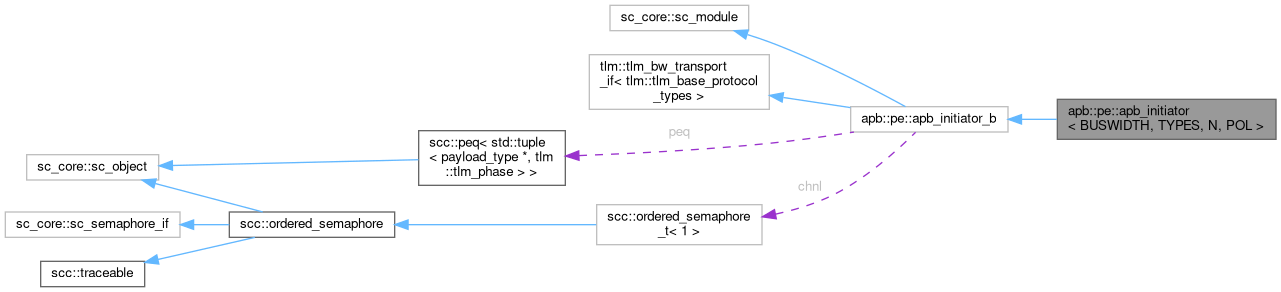

Collaboration diagram for apb::pe::apb_initiator< BUSWIDTH, TYPES, N, POL >:

Public Types
using	base = apb_initiator_b
using	payload_type = base::payload_type
using	phase_type = base::phase_type
Public Types inherited from apb::pe::apb_initiator_b
using	payload_type = tlm::tlm_generic_payload
using	phase_type = tlm::tlm_phase

Public Member Functions
	apb_initiator (const sc_core::sc_module_name &nm, tlm::tlm_initiator_socket< BUSWIDTH, TYPES, N, POL > &socket)
	the constructor
	apb_initiator (apb_initiator const &)=delete
	apb_initiator (apb_initiator &&)=delete
apb_initiator &	operator= (apb_initiator const &)=delete
apb_initiator &	operator= (apb_initiator &&)=delete
Public Member Functions inherited from apb::pe::apb_initiator_b
	SC_HAS_PROCESS (apb_initiator_b)
tlm::tlm_sync_enum	nb_transport_bw (payload_type &trans, phase_type &phase, sc_core::sc_time &t) override
void	invalidate_direct_mem_ptr (sc_dt::uint64 start_range, sc_dt::uint64 end_range) override
size_t	get_transferwith_in_bytes () const
void	transport (payload_type &trans, bool blocking)
	The forward transport function. It behaves blocking and is re-entrant.
	apb_initiator_b (sc_core::sc_module_name nm, sc_core::sc_port_b< tlm::tlm_fw_transport_if< tlm::tlm_base_protocol_types > > &port, size_t transfer_width, bool coherent)
	apb_initiator_b (apb_initiator_b const &)=delete
	apb_initiator_b (apb_initiator_b &&)=delete
apb_initiator_b &	operator= (apb_initiator_b const &)=delete
apb_initiator_b &	operator= (apb_initiator_b &&)=delete

Additional Inherited Members
Public Attributes inherited from apb::pe::apb_initiator_b
sc_core::sc_in< bool >	clk_i {"clk_i"}
Protected Attributes inherited from apb::pe::apb_initiator_b
const size_t	transfer_width_in_bytes
sc_core::sc_port_b< tlm::tlm_fw_transport_if< tlm::tlm_base_protocol_types > > &	socket_fw
scc::peq< std::tuple< payload_type *, tlm::tlm_phase > >	peq
scc::ordered_semaphore_t< 1 >	chnl
sc_core::sc_event	any_tx_finished
sc_core::sc_time	clk_period {10, sc_core::SC_NS}

Detailed Description

template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
class apb::pe::apb_initiator< BUSWIDTH, TYPES, N, POL >

the apb initiator socket protocol engine adapted to a particular initiator socket configuration

Definition at line 96 of file apb_initiator.h.

Member Typedef Documentation

base

template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

using apb::pe::apb_initiator< BUSWIDTH, TYPES, N, POL >::base = apb_initiator_b

Definition at line 98 of file apb_initiator.h.

payload_type

template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

using apb::pe::apb_initiator< BUSWIDTH, TYPES, N, POL >::payload_type = base::payload_type

Definition at line 100 of file apb_initiator.h.

phase_type

template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

using apb::pe::apb_initiator< BUSWIDTH, TYPES, N, POL >::phase_type = base::phase_type

Definition at line 101 of file apb_initiator.h.

Constructor & Destructor Documentation

apb_initiator()

template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>

apb::pe::apb_initiator< BUSWIDTH, TYPES, N, POL >::apb_initiator ( const sc_core::sc_module_name & nm, tlm::tlm_initiator_socket< BUSWIDTH, TYPES, N, POL > & socket )

inline

the constructor

Parameters

nm	the module name
socket	reference to the initiator socket used to send and receive transactions

Definition at line 108 of file apb_initiator.h.

---

The documentation for this class was generated from the following file:

• /home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/apb/pe/apb_initiator.h
