apb::pe::apb_initiator_b Class Reference

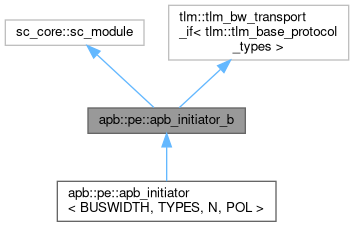

Inheritance diagram for apb::pe::apb_initiator_b:

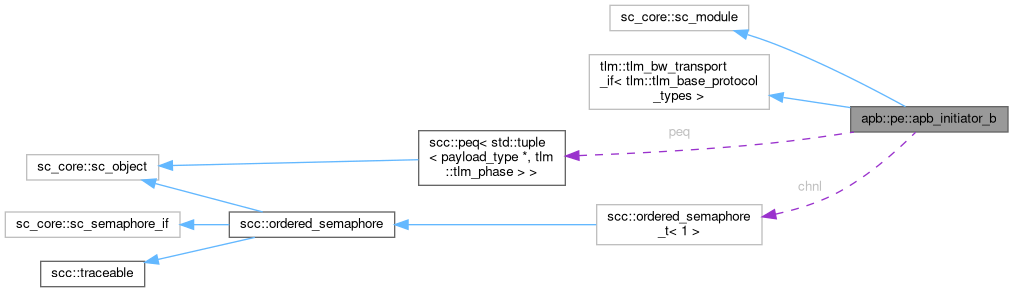

Collaboration diagram for apb::pe::apb_initiator_b:

Public Types
using	payload_type = tlm::tlm_generic_payload
using	phase_type = tlm::tlm_phase

Public Member Functions
	SC_HAS_PROCESS (apb_initiator_b)
tlm::tlm_sync_enum	nb_transport_bw (payload_type &trans, phase_type &phase, sc_core::sc_time &t) override
void	invalidate_direct_mem_ptr (sc_dt::uint64 start_range, sc_dt::uint64 end_range) override
size_t	get_transferwith_in_bytes () const
void	transport (payload_type &trans, bool blocking)
	The forward transport function. It behaves blocking and is re-entrant.
	apb_initiator_b (sc_core::sc_module_name nm, sc_core::sc_port_b< tlm::tlm_fw_transport_if< tlm::tlm_base_protocol_types > > &port, size_t transfer_width, bool coherent)
	apb_initiator_b (apb_initiator_b const &)=delete
	apb_initiator_b (apb_initiator_b &&)=delete
apb_initiator_b &	operator= (apb_initiator_b const &)=delete
apb_initiator_b &	operator= (apb_initiator_b &&)=delete

Public Attributes
sc_core::sc_in< bool >	clk_i {"clk_i"}

Protected Attributes
const size_t	transfer_width_in_bytes
sc_core::sc_port_b< tlm::tlm_fw_transport_if< tlm::tlm_base_protocol_types > > &	socket_fw
scc::peq< std::tuple< payload_type *, tlm::tlm_phase > >	peq
scc::ordered_semaphore_t< 1 >	chnl
sc_core::sc_event	any_tx_finished
sc_core::sc_time	clk_period {10, sc_core::SC_NS}

Detailed Description

Definition at line 29 of file apb_initiator.h.

Member Typedef Documentation

payload_type

using apb::pe::apb_initiator_b::payload_type = tlm::tlm_generic_payload

Definition at line 34 of file apb_initiator.h.

phase_type

using apb::pe::apb_initiator_b::phase_type = tlm::tlm_phase

Definition at line 35 of file apb_initiator.h.

Constructor & Destructor Documentation

apb_initiator_b()

apb_initiator_b::apb_initiator_b	(	sc_core::sc_module_name	nm,
		sc_core::sc_port_b< tlm::tlm_fw_transport_if< tlm::tlm_base_protocol_types > > &	port,
		size_t	transfer_width,
		bool	coherent )

Definition at line 30 of file apb_initiator.cpp.

Member Function Documentation

get_transferwith_in_bytes()

size_t apb::pe::apb_initiator_b::get_transferwith_in_bytes ( ) const

inline

Definition at line 43 of file apb_initiator.h.

invalidate_direct_mem_ptr()

void apb_initiator_b::invalidate_direct_mem_ptr ( sc_dt::uint64 start_range, sc_dt::uint64 end_range )

override

Definition at line 45 of file apb_initiator.cpp.

nb_transport_bw()

tlm::tlm_sync_enum apb_initiator_b::nb_transport_bw ( payload_type & trans, phase_type & phase, sc_core::sc_time & t )

override

Definition at line 39 of file apb_initiator.cpp.

transport()

void apb_initiator_b::transport	(	payload_type &	trans,
		bool	blocking )

The forward transport function. It behaves blocking and is re-entrant.

This function initiates the forward transport either using b_transport() if blocking=true or the nb_transport_* interface.

Parameters

trans	the transaction to send
blocking	execute in using the blocking interface

Definition at line 47 of file apb_initiator.cpp.

Member Data Documentation

any_tx_finished

sc_core::sc_event apb::pe::apb_initiator_b::any_tx_finished

protected

Definition at line 79 of file apb_initiator.h.

chnl

scc::ordered_semaphore_t<1> apb::pe::apb_initiator_b::chnl

protected

Definition at line 77 of file apb_initiator.h.

clk_i

sc_core::sc_in<bool> apb::pe::apb_initiator_b::clk_i {"clk_i"}

Definition at line 37 of file apb_initiator.h.

clk_period

sc_core::sc_time apb::pe::apb_initiator_b::clk_period {10, sc_core::SC_NS}

protected

Definition at line 81 of file apb_initiator.h.

peq

scc::peq<std::tuple<payload_type*, tlm::tlm_phase> > apb::pe::apb_initiator_b::peq

protected

Definition at line 75 of file apb_initiator.h.

socket_fw

sc_core::sc_port_b<tlm::tlm_fw_transport_if<tlm::tlm_base_protocol_types> >& apb::pe::apb_initiator_b::socket_fw

protected

Definition at line 73 of file apb_initiator.h.

transfer_width_in_bytes

const size_t apb::pe::apb_initiator_b::transfer_width_in_bytes

protected

Definition at line 71 of file apb_initiator.h.

---

The documentation for this class was generated from the following files:

• /home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/apb/pe/apb_initiator.h
• /home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/apb/pe/apb_initiator.cpp
