ahb::pe::ahb3_target< BUSWIDTH, TYPES, N, POL > Class Template Reference
#include <ahb_target.h>

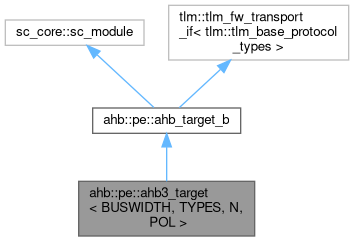

Inheritance diagram for ahb::pe::ahb3_target< BUSWIDTH, TYPES, N, POL >:

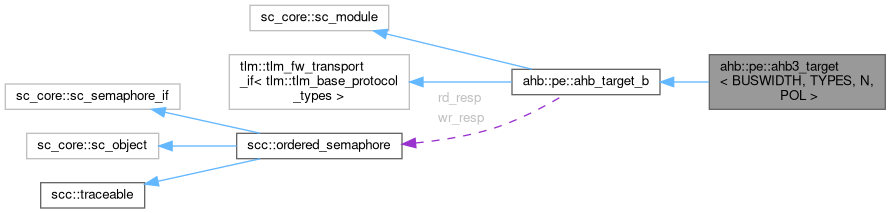

Collaboration diagram for ahb::pe::ahb3_target< BUSWIDTH, TYPES, N, POL >:
Public Types | |
| using | base = ahb_target_b |
| using | payload_type = base::payload_type |
| using | phase_type = base::phase_type |
| Public Types inherited from ahb::pe::ahb_target_b | |
| using | payload_type = tlm::tlm_base_protocol_types::tlm_payload_type |
| using | phase_type = tlm::tlm_base_protocol_types::tlm_phase_type |
Public Member Functions | |
| ahb3_target (tlm::tlm_target_socket< BUSWIDTH, TYPES, N, POL > &socket) | |
| the constructor | |
| ahb3_target (const sc_core::sc_module_name &nm, tlm::tlm_target_socket< BUSWIDTH, TYPES, N, POL > &socket) | |
| ahb3_target (ahb3_target const &)=delete | |
| ahb3_target (ahb3_target &&)=delete | |
| ahb3_target & | operator= (ahb3_target const &)=delete |
| ahb3_target & | operator= (ahb3_target &&)=delete |
| Public Member Functions inherited from ahb::pe::ahb_target_b | |
| SC_HAS_PROCESS (ahb_target_b) | |
| void | b_transport (payload_type &trans, sc_core::sc_time &t) override |
| tlm::tlm_sync_enum | nb_transport_fw (payload_type &trans, phase_type &phase, sc_core::sc_time &t) override |
| bool | get_direct_mem_ptr (payload_type &trans, tlm::tlm_dmi &dmi_data) override |
| unsigned int | transport_dbg (payload_type &trans) override |
| void | set_operation_cb (std::function< unsigned(payload_type &trans)> cb) |
| Set the operation callback function. | |
| void | operation_resp (payload_type &trans, bool sync=false) |
Additional Inherited Members | |
| Public Attributes inherited from ahb::pe::ahb_target_b | |
| sc_core::sc_in< bool > | clk_i {"clk_i"} |
| sc_core::sc_attribute< unsigned > | wr_data_accept_delay {"wr_data_accept_delay", 0} |
| the latency between between BEGIN(_PARTIAL)_REQ and END(_PARTIAL)_REQ (AWVALID to AWREADY and WVALID to WREADY) | |
| sc_core::sc_attribute< unsigned > | rd_addr_accept_delay {"rd_addr_accept_delay", 0} |
| the latency between between BEGIN_REQ and END_REQ (ARVALID to ARREADY) | |
| sc_core::sc_attribute< unsigned > | rd_data_beat_delay {"rd_data_beat_delay", 0} |
| the latency between between END(_PARTIAL)_RESP and BEGIN(_PARTIAL)_RESP (RREADY to RVALID) | |
| sc_core::sc_attribute< unsigned > | rd_resp_delay {"rd_resp_delay", 0} |
| the latency between request and response phase. Will be overwritten by the return of the callback function (if registered) | |
| sc_core::sc_attribute< unsigned > | wr_resp_delay {"wr_resp_delay", 0} |
| the latency between request and response phase. Will be overwritten by the return of the callback function (if registered) | |
| Protected Member Functions inherited from ahb::pe::ahb_target_b | |
| ahb_target_b (const sc_core::sc_module_name &nm, sc_core::sc_port_b< tlm::tlm_bw_transport_if< tlm::tlm_base_protocol_types > > &port, size_t transfer_width) | |
| ahb_target_b (ahb_target_b const &)=delete | |
| ahb_target_b (ahb_target_b &&)=delete | |
| ahb_target_b & | operator= (ahb_target_b const &)=delete |
| ahb_target_b & | operator= (ahb_target_b &&)=delete |
| void | send_resp_thread () |
| void | end_of_elaboration () override |
| Protected Attributes inherited from ahb::pe::ahb_target_b | |
| sc_core::sc_port_b< tlm::tlm_bw_transport_if< tlm::tlm_base_protocol_types > > & | socket_bw |
| sc_core::sc_semaphore | sn_sem {1} |
| sc_core::sc_mutex | wr |
| sc_core::sc_mutex | rd |
| sc_core::sc_mutex | sn |
| bool | fast_resp {false} |
| bool | fast_req {false} |
| std::function< unsigned(payload_type &trans)> | operation_cb |
| scc::ordered_semaphore | rd_resp {1} |
| scc::ordered_semaphore | wr_resp {1} |
| sc_core::sc_clock * | clk_if {nullptr} |
Detailed Description
template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
class ahb::pe::ahb3_target< BUSWIDTH, TYPES, N, POL >
class ahb::pe::ahb3_target< BUSWIDTH, TYPES, N, POL >
the target socket protocol engine adapted to a particular target socket configuration
Definition at line 134 of file ahb_target.h.
Member Typedef Documentation
◆ base
template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using ahb::pe::ahb3_target< BUSWIDTH, TYPES, N, POL >::base = ahb_target_b |
Definition at line 136 of file ahb_target.h.
◆ payload_type
template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using ahb::pe::ahb3_target< BUSWIDTH, TYPES, N, POL >::payload_type = base::payload_type |
Definition at line 137 of file ahb_target.h.
◆ phase_type
template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using ahb::pe::ahb3_target< BUSWIDTH, TYPES, N, POL >::phase_type = base::phase_type |
Definition at line 138 of file ahb_target.h.
Constructor & Destructor Documentation
◆ ahb3_target() [1/2]
template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
|
inline |
the constructor
- Parameters
-
socket reference to the initiator socket used to send and receive transactions
Definition at line 143 of file ahb_target.h.
◆ ahb3_target() [2/2]
template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
|
inline |
Definition at line 147 of file ahb_target.h.
The documentation for this class was generated from the following file:
- /home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/ahb/pe/ahb_target.h
