#include <ahb_target.h>

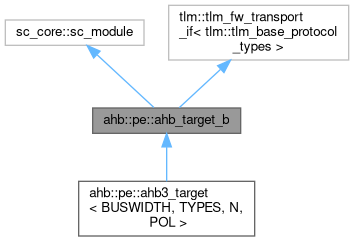

Inheritance diagram for ahb::pe::ahb_target_b:

[legend]

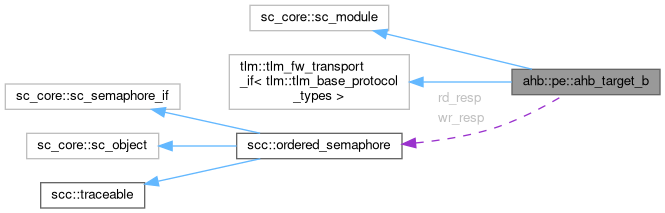

Collaboration diagram for ahb::pe::ahb_target_b:

[legend]

Public Types
using	payload_type = tlm::tlm_base_protocol_types::tlm_payload_type
using	phase_type = tlm::tlm_base_protocol_types::tlm_phase_type

Public Member Functions
	SC_HAS_PROCESS (ahb_target_b)
void	b_transport (payload_type &trans, sc_core::sc_time &t) override
tlm::tlm_sync_enum	nb_transport_fw (payload_type &trans, phase_type &phase, sc_core::sc_time &t) override
bool	get_direct_mem_ptr (payload_type &trans, tlm::tlm_dmi &dmi_data) override
unsigned int	transport_dbg (payload_type &trans) override
void	set_operation_cb (std::function< unsigned(payload_type &trans)> cb)
	Set the operation callback function.
void	operation_resp (payload_type &trans, bool sync=false)

Public Attributes
sc_core::sc_in< bool >	clk_i {"clk_i"}
sc_core::sc_attribute< unsigned >	wr_data_accept_delay {"wr_data_accept_delay", 0}
	the latency between between BEGIN(_PARTIAL)_REQ and END(_PARTIAL)_REQ (AWVALID to AWREADY and WVALID to WREADY)
sc_core::sc_attribute< unsigned >	rd_addr_accept_delay {"rd_addr_accept_delay", 0}
	the latency between between BEGIN_REQ and END_REQ (ARVALID to ARREADY)
sc_core::sc_attribute< unsigned >	rd_data_beat_delay {"rd_data_beat_delay", 0}
	the latency between between END(_PARTIAL)_RESP and BEGIN(_PARTIAL)_RESP (RREADY to RVALID)
sc_core::sc_attribute< unsigned >	rd_resp_delay {"rd_resp_delay", 0}
	the latency between request and response phase. Will be overwritten by the return of the callback function (if registered)
sc_core::sc_attribute< unsigned >	wr_resp_delay {"wr_resp_delay", 0}
	the latency between request and response phase. Will be overwritten by the return of the callback function (if registered)

Protected Member Functions
	ahb_target_b (const sc_core::sc_module_name &nm, sc_core::sc_port_b< tlm::tlm_bw_transport_if< tlm::tlm_base_protocol_types > > &port, size_t transfer_width)
	ahb_target_b (ahb_target_b const &)=delete
	ahb_target_b (ahb_target_b &&)=delete
ahb_target_b &	operator= (ahb_target_b const &)=delete
ahb_target_b &	operator= (ahb_target_b &&)=delete
void	send_resp_thread ()
void	end_of_elaboration () override

Protected Attributes
sc_core::sc_port_b< tlm::tlm_bw_transport_if< tlm::tlm_base_protocol_types > > &	socket_bw
sc_core::sc_semaphore	sn_sem {1}
sc_core::sc_mutex	wr
sc_core::sc_mutex	rd
sc_core::sc_mutex	sn
bool	fast_resp {false}
bool	fast_req {false}
std::function< unsigned(payload_type &trans)>	operation_cb
scc::ordered_semaphore	rd_resp {1}
scc::ordered_semaphore	wr_resp {1}
sc_core::sc_clock *	clk_if {nullptr}

Detailed Description

the target protocol engine base class

Definition at line 37 of file ahb_target.h.

Member Typedef Documentation

◆ payload_type

using ahb::pe::ahb_target_b::payload_type = tlm::tlm_base_protocol_types::tlm_payload_type

Definition at line 42 of file ahb_target.h.

◆ phase_type

using ahb::pe::ahb_target_b::phase_type = tlm::tlm_base_protocol_types::tlm_phase_type

Definition at line 43 of file ahb_target.h.

Constructor & Destructor Documentation

◆ ahb_target_b()

ahb::pe::ahb_target_b::ahb_target_b	(	const sc_core::sc_module_name &	nm,
		sc_core::sc_port_b< tlm::tlm_bw_transport_if< tlm::tlm_base_protocol_types > > &	port,
		size_t	transfer_width )

explicitprotected

the constructor. Protected as it should only be called by derived classes

Parameters

nm	the module name
port
transfer_width

Member Function Documentation

◆ b_transport()

void ahb_target_b::b_transport	(	payload_type &	trans,
		sc_core::sc_time &	t )

override

Definition at line 47 of file ahb_target.cpp.

◆ end_of_elaboration()

void ahb_target_b::end_of_elaboration ( )

overrideprotected

Definition at line 45 of file ahb_target.cpp.

◆ get_direct_mem_ptr()

bool ahb_target_b::get_direct_mem_ptr	(	payload_type &	trans,
		tlm::tlm_dmi &	dmi_data )

override

Definition at line 62 of file ahb_target.cpp.

◆ nb_transport_fw()

tlm_sync_enum ahb_target_b::nb_transport_fw	(	payload_type &	trans,
		phase_type &	phase,
		sc_core::sc_time &	t )

override

Definition at line 57 of file ahb_target.cpp.

◆ operation_resp()

void ahb_target_b::operation_resp	(	payload_type &	trans,
		bool	sync = false )

Parameters

trans
sync

Definition at line 69 of file ahb_target.cpp.

◆ send_resp_thread()

void ahb_target_b::send_resp_thread ( )

protected

Definition at line 73 of file ahb_target.cpp.

◆ set_operation_cb()

void ahb::pe::ahb_target_b::set_operation_cb ( std::function< unsigned(payload_type &trans)> cb )

inline

Set the operation callback function.

This callback is invoked once a transaction arrives. This function is not allowed to block and returns the latency of the operation i.e. the duration until the reponse phase starts

Todo: refine API

Parameters

cb	the callback function

Definition at line 87 of file ahb_target.h.

◆ transport_dbg()

unsigned int ahb_target_b::transport_dbg ( payload_type & trans )

override

Definition at line 67 of file ahb_target.cpp.

Member Data Documentation

◆ clk_i

sc_core::sc_in<bool> ahb::pe::ahb_target_b::clk_i {"clk_i"}

Definition at line 45 of file ahb_target.h.

◆ clk_if

sc_core::sc_clock* ahb::pe::ahb_target_b::clk_if {nullptr}

protected

Definition at line 125 of file ahb_target.h.

◆ fast_req

bool ahb::pe::ahb_target_b::fast_req {false}

protected

Definition at line 122 of file ahb_target.h.

◆ fast_resp

bool ahb::pe::ahb_target_b::fast_resp {false}

protected

Definition at line 121 of file ahb_target.h.

◆ operation_cb

std::function<unsigned(payload_type& trans)> ahb::pe::ahb_target_b::operation_cb

protected

Definition at line 123 of file ahb_target.h.

◆ rd

sc_core::sc_mutex ahb::pe::ahb_target_b::rd

protected

Definition at line 120 of file ahb_target.h.

◆ rd_addr_accept_delay

sc_core::sc_attribute<unsigned> ahb::pe::ahb_target_b::rd_addr_accept_delay {"rd_addr_accept_delay", 0}

the latency between between BEGIN_REQ and END_REQ (ARVALID to ARREADY)

Definition at line 54 of file ahb_target.h.

◆ rd_data_beat_delay

sc_core::sc_attribute<unsigned> ahb::pe::ahb_target_b::rd_data_beat_delay {"rd_data_beat_delay", 0}

the latency between between END(_PARTIAL)_RESP and BEGIN(_PARTIAL)_RESP (RREADY to RVALID)

Definition at line 58 of file ahb_target.h.

◆ rd_resp

scc::ordered_semaphore ahb::pe::ahb_target_b::rd_resp {1}

protected

Definition at line 124 of file ahb_target.h.

◆ rd_resp_delay

sc_core::sc_attribute<unsigned> ahb::pe::ahb_target_b::rd_resp_delay {"rd_resp_delay", 0}

the latency between request and response phase. Will be overwritten by the return of the callback function (if registered)

Definition at line 63 of file ahb_target.h.

◆ sn

sc_core::sc_mutex ahb::pe::ahb_target_b::sn

protected

Definition at line 120 of file ahb_target.h.

◆ sn_sem

sc_core::sc_semaphore ahb::pe::ahb_target_b::sn_sem {1}

protected

Definition at line 119 of file ahb_target.h.

◆ socket_bw

sc_core::sc_port_b<tlm::tlm_bw_transport_if<tlm::tlm_base_protocol_types> >& ahb::pe::ahb_target_b::socket_bw

protected

Definition at line 118 of file ahb_target.h.

◆ wr

sc_core::sc_mutex ahb::pe::ahb_target_b::wr

protected

Definition at line 120 of file ahb_target.h.

◆ wr_data_accept_delay

sc_core::sc_attribute<unsigned> ahb::pe::ahb_target_b::wr_data_accept_delay {"wr_data_accept_delay", 0}

the latency between between BEGIN(_PARTIAL)_REQ and END(_PARTIAL)_REQ (AWVALID to AWREADY and WVALID to WREADY)

Definition at line 50 of file ahb_target.h.

◆ wr_resp

scc::ordered_semaphore ahb::pe::ahb_target_b::wr_resp {1}

protected

Definition at line 124 of file ahb_target.h.

◆ wr_resp_delay

sc_core::sc_attribute<unsigned> ahb::pe::ahb_target_b::wr_resp_delay {"wr_resp_delay", 0}

the latency between request and response phase. Will be overwritten by the return of the callback function (if registered)

Definition at line 68 of file ahb_target.h.

The documentation for this class was generated from the following files:

/home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/ahb/pe/ahb_target.h
/home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/ahb/pe/ahb_target.cpp
