ahb::pe::ahb3_initiator< BUSWIDTH, TYPES, N, POL > Class Template Reference
#include <ahb_initiator.h>

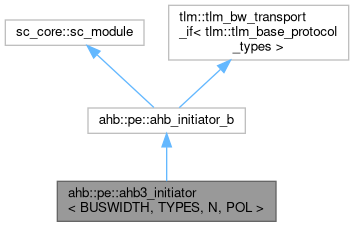

Inheritance diagram for ahb::pe::ahb3_initiator< BUSWIDTH, TYPES, N, POL >:

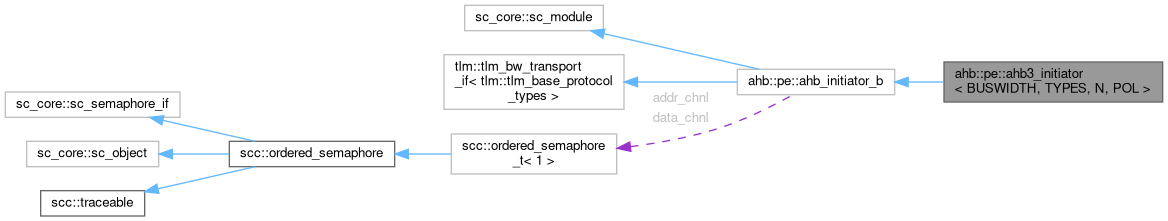

Collaboration diagram for ahb::pe::ahb3_initiator< BUSWIDTH, TYPES, N, POL >:
Public Types | |
| using | base = ahb_initiator_b |
| using | payload_type = base::payload_type |
| using | phase_type = base::phase_type |
| Public Types inherited from ahb::pe::ahb_initiator_b | |
| using | payload_type = tlm::tlm_generic_payload |
| using | phase_type = tlm::tlm_phase |
Public Member Functions | |
| ahb3_initiator (const sc_core::sc_module_name &nm, tlm::tlm_initiator_socket< BUSWIDTH, TYPES, N, POL > &socket) | |
| the constructor | |
| ahb3_initiator (ahb3_initiator const &)=delete | |
| ahb3_initiator (ahb3_initiator &&)=delete | |
| ahb3_initiator & | operator= (ahb3_initiator const &)=delete |
| ahb3_initiator & | operator= (ahb3_initiator &&)=delete |
| Public Member Functions inherited from ahb::pe::ahb_initiator_b | |
| SC_HAS_PROCESS (ahb_initiator_b) | |
| tlm::tlm_sync_enum | nb_transport_bw (payload_type &trans, phase_type &phase, sc_core::sc_time &t) override |
| void | invalidate_direct_mem_ptr (sc_dt::uint64 start_range, sc_dt::uint64 end_range) override |
| size_t | get_transferwith_in_bytes () const |
| void | transport (payload_type &trans, bool blocking) |
| The forward transport function. It behaves blocking and is re-entrant. | |
| ahb_initiator_b (sc_core::sc_module_name nm, sc_core::sc_port_b< tlm::tlm_fw_transport_if< tlm::tlm_base_protocol_types > > &port, size_t transfer_width, bool coherent) | |
| ahb_initiator_b (ahb_initiator_b const &)=delete | |
| ahb_initiator_b (ahb_initiator_b &&)=delete | |
| ahb_initiator_b & | operator= (ahb_initiator_b const &)=delete |
| ahb_initiator_b & | operator= (ahb_initiator_b &&)=delete |
| void | snoop_resp (payload_type &trans, bool sync=false) |
Additional Inherited Members | |
| Public Attributes inherited from ahb::pe::ahb_initiator_b | |
| sc_core::sc_in< bool > | clk_i {"clk_i"} |
| sc_core::sc_attribute< unsigned > | artv {"artv", 0} |
| Read address valid to next read address valid. | |
| sc_core::sc_attribute< unsigned > | awtv {"awtv", 0} |
| Write address valid to next write address valid. | |
| sc_core::sc_attribute< unsigned > | wbv {"wbv", 0} |
| Write data handshake to next beat valid. | |
| sc_core::sc_attribute< unsigned > | rbr {"rbr", 0} |
| Read data valid to same beat ready. | |
| sc_core::sc_attribute< unsigned > | br {"br", 0} |
| Write response valid to ready. | |
| Protected Member Functions inherited from ahb::pe::ahb_initiator_b | |
| unsigned | calculate_beats (payload_type &p) |
| Protected Attributes inherited from ahb::pe::ahb_initiator_b | |
| const size_t | transfer_width_in_bytes |
| const bool | coherent |
| sc_core::sc_port_b< tlm::tlm_fw_transport_if< tlm::tlm_base_protocol_types > > & | socket_fw |
| std::unordered_map< payload_type *, tx_state * > | tx_state_by_id |
| scc::ordered_semaphore_t< 1 > | addr_chnl |
| scc::ordered_semaphore_t< 1 > | data_chnl |
| sc_core::sc_event | any_tx_finished |
| sc_core::sc_time | clk_period {10, sc_core::SC_NS} |
Detailed Description
template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
class ahb::pe::ahb3_initiator< BUSWIDTH, TYPES, N, POL >
class ahb::pe::ahb3_initiator< BUSWIDTH, TYPES, N, POL >
the ahb initiator socket protocol engine adapted to a particular initiator socket configuration
Definition at line 129 of file ahb_initiator.h.
Member Typedef Documentation
◆ base
template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using ahb::pe::ahb3_initiator< BUSWIDTH, TYPES, N, POL >::base = ahb_initiator_b |
Definition at line 131 of file ahb_initiator.h.
◆ payload_type
template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using ahb::pe::ahb3_initiator< BUSWIDTH, TYPES, N, POL >::payload_type = base::payload_type |
Definition at line 133 of file ahb_initiator.h.
◆ phase_type
template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using ahb::pe::ahb3_initiator< BUSWIDTH, TYPES, N, POL >::phase_type = base::phase_type |
Definition at line 134 of file ahb_initiator.h.
Constructor & Destructor Documentation
◆ ahb3_initiator()
template<unsigned int BUSWIDTH = 32, typename TYPES = tlm::tlm_base_protocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
|
inline |
the constructor
- Parameters
-
nm the module name socket reference to the initiator socket used to send and receive transactions
Definition at line 141 of file ahb_initiator.h.
The documentation for this class was generated from the following file:
- /home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/ahb/pe/ahb_initiator.h
