tlm::scc::tlm_signal2sc_signal< TYPE > Struct Template Reference

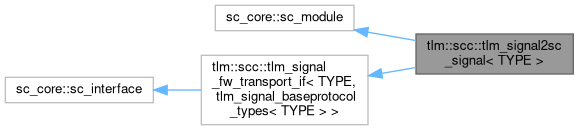

Inheritance diagram for tlm::scc::tlm_signal2sc_signal< TYPE >:

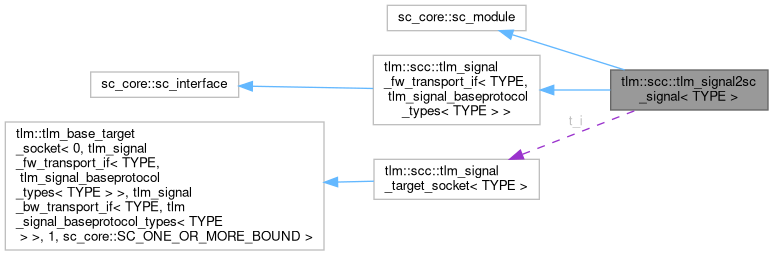

Collaboration diagram for tlm::scc::tlm_signal2sc_signal< TYPE >:

Public Types
using	protocol_types = tlm_signal_baseprotocol_types<TYPE>
using	payload_type = typename protocol_types::tlm_payload_type
using	phase_type = typename protocol_types::tlm_phase_type
Public Types inherited from tlm::scc::tlm_signal_fw_transport_if< TYPE, tlm_signal_baseprotocol_types< TYPE > >
typedef tlm_signal_baseprotocol_types< TYPE >	protocol_types

Public Member Functions
	SC_HAS_PROCESS (tlm_signal2sc_signal)
	tlm_signal2sc_signal (sc_core::sc_module_name nm)
Public Member Functions inherited from tlm::scc::tlm_signal_fw_transport_if< TYPE, tlm_signal_baseprotocol_types< TYPE > >
virtual::tlm::tlm_sync_enum	nb_transport_fw (typename tlm_signal_baseprotocol_types< TYPE >::tlm_payload_type &, ::tlm::tlm_phase &, sc_core::sc_time &)=0

Public Attributes
tlm_signal_target_socket< TYPE >	t_i {"t_i"}
sc_core::sc_out< TYPE >	s_o {"s_o"}

Detailed Description

template<typename TYPE>
struct tlm::scc::tlm_signal2sc_signal< TYPE >

Definition at line 31 of file tlm_signal_conv.h.

Member Typedef Documentation

payload_type

template<typename TYPE>

using tlm::scc::tlm_signal2sc_signal< TYPE >::payload_type = typename protocol_types::tlm_payload_type

Definition at line 34 of file tlm_signal_conv.h.

phase_type

template<typename TYPE>

using tlm::scc::tlm_signal2sc_signal< TYPE >::phase_type = typename protocol_types::tlm_phase_type

Definition at line 35 of file tlm_signal_conv.h.

protocol_types

template<typename TYPE>

using tlm::scc::tlm_signal2sc_signal< TYPE >::protocol_types = tlm_signal_baseprotocol_types<TYPE>

Definition at line 33 of file tlm_signal_conv.h.

Constructor & Destructor Documentation

tlm_signal2sc_signal()

template<typename TYPE>

tlm::scc::tlm_signal2sc_signal< TYPE >::tlm_signal2sc_signal ( sc_core::sc_module_name nm )

inline

Definition at line 43 of file tlm_signal_conv.h.

Member Data Documentation

s_o

template<typename TYPE>

sc_core::sc_out<TYPE> tlm::scc::tlm_signal2sc_signal< TYPE >::s_o {"s_o"}

Definition at line 41 of file tlm_signal_conv.h.

t_i

template<typename TYPE>

tlm_signal_target_socket<TYPE> tlm::scc::tlm_signal2sc_signal< TYPE >::t_i {"t_i"}

Definition at line 39 of file tlm_signal_conv.h.

---

The documentation for this struct was generated from the following file:

• /home/eyck/Projects/MINRES/SystemC-Components/src/sysc/tlm/scc/tlm_signal_conv.h
