tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL > Struct Template Reference
Definition of the tlm_network_initiator_socket class. More...
#include <tlm_network_sockets.h>

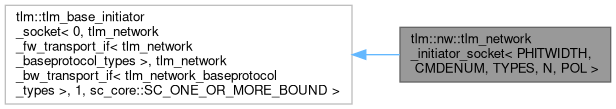

Inheritance diagram for tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL >:
Collaboration diagram for tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL >:
Public Types | |
| using | protocol_types = TYPES |
| using | transaction_type = typename TYPES::tlm_payload_type |
| using | phase_type = typename TYPES::tlm_phase_type |
| using | base_class = tlm_base_initiator_socket<0, tlm_network_fw_transport_if<TYPES>, tlm_network_bw_transport_if<TYPES>, N, POL> |
| using | fw_interface_type = tlm_network_fw_transport_if<TYPES> |
| using | bw_interface_type = tlm_network_bw_transport_if<TYPES> |
| using | port_type = sc_core::sc_port<fw_interface_type, N, POL> |
| using | export_type = sc_core::sc_export<bw_interface_type> |
Public Member Functions | |
| tlm_network_initiator_socket () | |
| Constructor with default name. | |
| tlm_network_initiator_socket (const char *name) | |
| Constructor with specified name. | |
| virtual | ~tlm_network_initiator_socket ()=default |
| virtual const char * | kind () const |
| virtual type_index | get_protocol_types () const |
Detailed Description
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
struct tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL >
struct tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL >
Definition of the tlm_network_initiator_socket class.
This socket is used to initiate transactions to a target.
Definition at line 87 of file tlm_network_sockets.h.
Member Typedef Documentation
◆ base_class
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL >::base_class = tlm_base_initiator_socket<0, tlm_network_fw_transport_if<TYPES>, tlm_network_bw_transport_if<TYPES>, N, POL> |
Definition at line 94 of file tlm_network_sockets.h.
◆ bw_interface_type
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL >::bw_interface_type = tlm_network_bw_transport_if<TYPES> |
Definition at line 97 of file tlm_network_sockets.h.
◆ export_type
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL >::export_type = sc_core::sc_export<bw_interface_type> |
Definition at line 100 of file tlm_network_sockets.h.
◆ fw_interface_type
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL >::fw_interface_type = tlm_network_fw_transport_if<TYPES> |
Definition at line 96 of file tlm_network_sockets.h.
◆ phase_type
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL >::phase_type = typename TYPES::tlm_phase_type |
Definition at line 92 of file tlm_network_sockets.h.
◆ port_type
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL >::port_type = sc_core::sc_port<fw_interface_type, N, POL> |
Definition at line 99 of file tlm_network_sockets.h.
◆ protocol_types
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL >::protocol_types = TYPES |
Definition at line 90 of file tlm_network_sockets.h.
◆ transaction_type
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
| using tlm::nw::tlm_network_initiator_socket< PHITWIDTH, CMDENUM, TYPES, N, POL >::transaction_type = typename TYPES::tlm_payload_type |
Definition at line 91 of file tlm_network_sockets.h.
Constructor & Destructor Documentation
◆ tlm_network_initiator_socket() [1/2]
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
|
inline |
Constructor with default name.
Initializes the tlm_network_initiator_socket object with a default name.
Definition at line 106 of file tlm_network_sockets.h.
◆ tlm_network_initiator_socket() [2/2]
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
|
inlineexplicit |
Constructor with specified name.
Initializes the tlm_network_initiator_socket object with a specified name.
- Parameters
-
name The name of the socket.
Definition at line 115 of file tlm_network_sockets.h.
◆ ~tlm_network_initiator_socket()
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
|
virtualdefault |
virtual destructor of the tlm_network_initiator_socket.
Member Function Documentation
◆ get_protocol_types()
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
|
inlinevirtual |
Returns the type index of the protocol types associated with this socket.
Definition at line 128 of file tlm_network_sockets.h.
◆ kind()
template<unsigned PHITWIDTH, typename CMDENUM, typename TYPES = tlm_network_baseprotocol_types, int N = 1, sc_core::sc_port_policy POL = sc_core::SC_ONE_OR_MORE_BOUND>
|
inlinevirtual |
Provides the kind() method to retrieve the socket's kind as string.
Definition at line 124 of file tlm_network_sockets.h.
The documentation for this struct was generated from the following file:
- /home/eyck/Projects/MINRES/SystemC-Components/src/sysc/tlm/nw/tlm_network_sockets.h
