tilelink::tl_ul< CFG, TYPES > Struct Template Reference

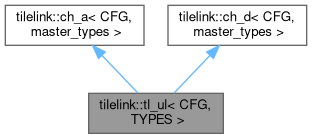

Inheritance diagram for tilelink::tl_ul< CFG, TYPES >:
Collaboration diagram for tilelink::tl_ul< CFG, TYPES >:
Public Member Functions | |
| tl_ul (const char *prefix) | |
| template<typename OTYPES> | |
| void | bind (tl_ul< CFG, OTYPES > &o) |
| Public Member Functions inherited from tilelink::ch_a< CFG, master_types > | |
| void | bind_a (ch_a< CFG, OTYPES > &o) |
| Public Member Functions inherited from tilelink::ch_d< CFG, master_types > | |
| void | bind_d (ch_d< CFG, OTYPES > &o) |
Additional Inherited Members | |
| Public Attributes inherited from tilelink::ch_a< CFG, master_types > | |
| master_types::template m2s_t< sc_dt::sc_uint< 3 > > | code |
| master_types::template m2s_t< sc_dt::sc_uint< 3 > > | param |
| master_types::template m2s_t< sc_dt::sc_uint< CFG::SZWIDTH > > | size |
| master_types::template m2s_t< sc_dt::sc_uint< CFG::MIDWIDTH > > | source |
| master_types::template m2s_t< CFG::addr_t > | address |
| master_types::template m2s_t< CFG::mask_t > | mask |
| master_types::template m2s_t< CFG::data_t > | data |
| master_types::template s2m_t< bool > | corrupt |
| master_types::template m2s_t< bool > | valid |
| master_types::template s2m_t< bool > | ready |
| Public Attributes inherited from tilelink::ch_d< CFG, master_types > | |
| master_types::template s2m_t< sc_dt::sc_uint< 3 > > | code |
| master_types::template s2m_t< sc_dt::sc_uint< 2 > > | param |
| master_types::template s2m_t< sc_dt::sc_uint< CFG::SZWIDTH > > | size |
| master_types::template s2m_t< sc_dt::sc_uint< CFG::MIDWIDTH > > | source |
| master_types::template s2m_t< sc_dt::sc_uint< CFG::SIDWIDTH > > | sink |
| master_types::template m2s_t< bool > | denied |
| master_types::template s2m_t< CFG::data_t > | data |
| master_types::template m2s_t< bool > | corrupt |
| master_types::template s2m_t< bool > | valid |
| master_types::template m2s_t< bool > | ready |
Detailed Description
template<typename CFG, typename TYPES = master_types>
struct tilelink::tl_ul< CFG, TYPES >
struct tilelink::tl_ul< CFG, TYPES >
Definition at line 272 of file signal_if.h.
Constructor & Destructor Documentation
◆ tl_ul() [1/2]
template<typename CFG, typename TYPES = master_types>
|
inline |
Definition at line 273 of file signal_if.h.
◆ tl_ul() [2/2]
template<typename CFG, typename TYPES = master_types>
|
inline |
Definition at line 276 of file signal_if.h.
Member Function Documentation
◆ bind()
template<typename CFG, typename TYPES = master_types>
template<typename OTYPES>
|
inline |
Definition at line 279 of file signal_if.h.
The documentation for this struct was generated from the following file:
- /home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/tilelink/signal_if.h
