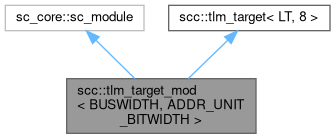

Inheritance diagram for scc::tlm_target_mod< BUSWIDTH, ADDR_UNIT_BITWIDTH >:

[legend]

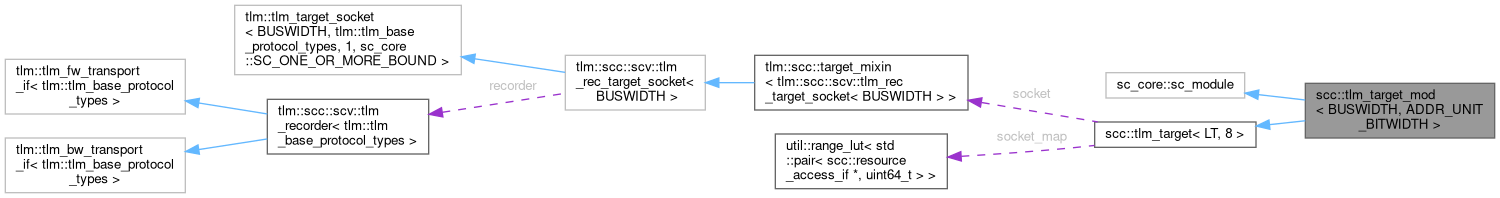

Collaboration diagram for scc::tlm_target_mod< BUSWIDTH, ADDR_UNIT_BITWIDTH >:

[legend]

Public Member Functions
	tlm_target_mod (sc_core::sc_module_name nm, sc_core::sc_time &clk_period)
Public Member Functions inherited from scc::tlm_target< LT, 8 >
	tlm_target (sc_core::sc_time &clock, const char *socket_name="socket")
	the constructor
void	b_tranport_cb (tlm::tlm_generic_payload &gp, sc_core::sc_time &d)
	the blocking transport callback
unsigned int	tranport_dbg_cb (tlm::tlm_generic_payload &gp)
	the debug transport callback
void	addResource (resource_access_if &rai, uint64_t base_addr)
	add a resource to this target at a certain address within the socket address range
size_t	get_size ()

Additional Inherited Members
Public Types inherited from scc::tlm_target< LT, 8 >
using	this_type
Public Attributes inherited from scc::tlm_target< LT, 8 >
tlm::scc::target_mixin< tlm::scc::scv::tlm_rec_target_socket< BUSWIDTH > >	socket
	the target socket
Protected Attributes inherited from scc::tlm_target< LT, 8 >
util::range_lut< std::pair< resource_access_if *, uint64_t > >	socket_map

Detailed Description

template<unsigned int BUSWIDTH = LT, unsigned int ADDR_UNIT_BITWIDTH = 8>
struct scc::tlm_target_mod< BUSWIDTH, ADDR_UNIT_BITWIDTH >

Definition at line 128 of file tlm_target.h.

Constructor & Destructor Documentation

template<unsigned int BUSWIDTH = LT, unsigned int ADDR_UNIT_BITWIDTH = 8>

scc::tlm_target_mod< BUSWIDTH, ADDR_UNIT_BITWIDTH >::tlm_target_mod	(	sc_core::sc_module_name	nm,
		sc_core::sc_time &	clk_period )

inline

Definition at line 129 of file tlm_target.h.

The documentation for this struct was generated from the following file:
