Bidirectional bridge for tunneling loosely timed TLM traffic over a TCP connection. More...

#include <tcp4tlm_bridge.h>

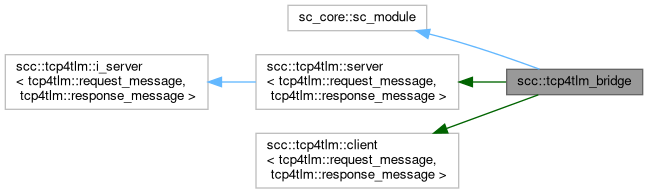

Inheritance diagram for scc::tcp4tlm_bridge:

[legend]

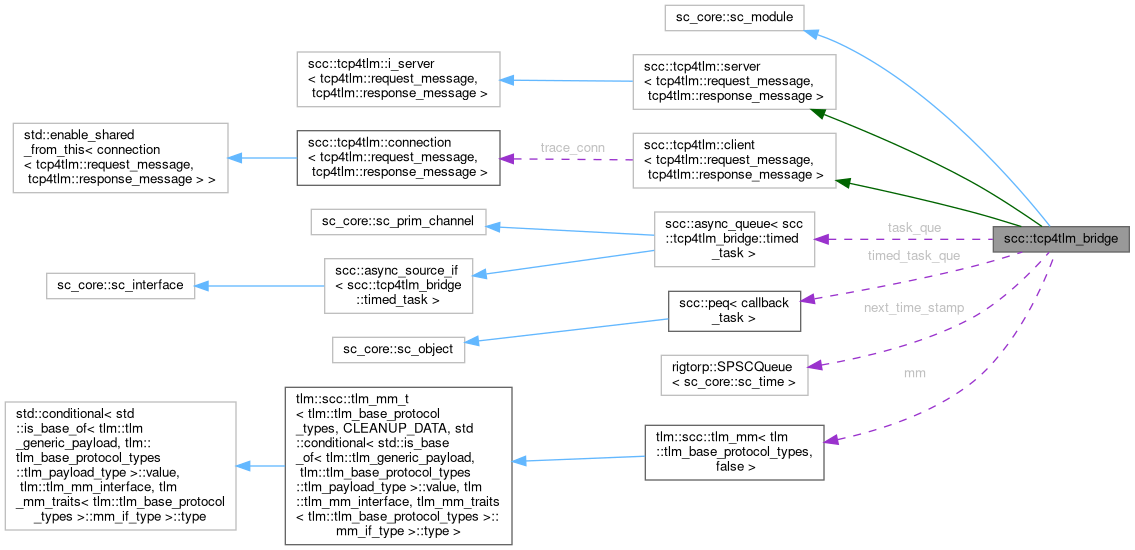

Collaboration diagram for scc::tcp4tlm_bridge:

[legend]

Classes
struct	timed_task

Public Types
typedef tcp4tlm::connection< tcp4tlm::response_message, tcp4tlm::request_message >	connection_type
typedef std::shared_ptr< connection_type >	con_ptr

Public Member Functions
	SC_HAS_PROCESS (tcp4tlm_bridge)
	tcp4tlm_bridge (sc_core::sc_module_name name, size_t no_of_ports=0)
void	server_send_completed (con_ptr &con, bool established=false) override
void	server_receive_completed (con_ptr &con, const tcp4tlm::request_message *const result) override
void	start_server ()
void	wait4connection ()
bool	is_connection_established ()
void	end_connection ()
sc_core::sc_event const &	get_shutdown_event () const

Public Attributes
cci::cci_param< bool >	is_connection_server {"is_connection_server", false}
cci::cci_param< std::string >	other_host_name {"other_host_name", ""}
cci::cci_param< unsigned >	other_host_port {"other_host_port", 0}
cci::cci_param< unsigned >	this_host_port {"this_host_port", 32000u}
cci::cci_param< bool >	wall_time_simulation_speed {"wall_time_simulation_speed", false}
cci::cci_param< bool >	write_no_response {"write_no_response", false}
cci::cci_param< bool >	no_systemc_sync {"no_systemc_sync", false}
tlm_utils::simple_target_socket< tcp4tlm_bridge, ::scc::LT >	tsckt
tlm_utils::simple_initiator_socket< tcp4tlm_bridge, ::scc::LT >	isckt
sc_core::sc_vector< sc_core::sc_out< bool > >	signals {"signals"}

Protected Types
using	callback_task = std::packaged_task<bool(void)>

Protected Member Functions
void	btransport_cb (tlm::tlm_generic_payload &, sc_core::sc_time &)
unsigned	transport_dbg_cb (tlm::tlm_generic_payload &)
virtual void	do_access (tlm::tlm_generic_payload &gp, sc_core::sc_time &delay, bool debug=false)
void	timing_thread ()
void	process_task_que ()
void	process_timed_task_que ()
void	end_of_elaboration () override
void	start_of_simulation () override
void	end_of_simulation () override
Protected Member Functions inherited from scc::tcp4tlm::server< tcp4tlm::request_message, tcp4tlm::response_message >
const connection< tcp4tlm::response_message, tcp4tlm::request_message >::acceptor_t &	get_acceptor ()
	server (std::size_t thread_pool_size=4)
long	set_acceptor_endpoint (std::shared_ptr< boost::asio::ip::tcp::acceptor > &a, unsigned short port)
void	start_server (unsigned short port, char *name=NULL)
void	request_shutdown ()
bool	is_shutdown_requested ()
void	shutdown_server ()
virtual boost::asio::io_context &	get_io_service ()
bool	is_server_running ()
void	create_new_session ()
Protected Member Functions inherited from scc::tcp4tlm::i_server< tcp4tlm::request_message, tcp4tlm::response_message >
virtual void	server_send_completed (std::shared_ptr< connection< tcp4tlm::response_message, tcp4tlm::request_message > > &con, bool established=false)=0
virtual void	server_receive_completed (std::shared_ptr< connection< tcp4tlm::response_message, tcp4tlm::request_message > > &con, const tcp4tlm::request_message *const result)=0
Protected Member Functions inherited from scc::tcp4tlm::client< tcp4tlm::request_message, tcp4tlm::response_message >
void	setup_endpoint (boost::asio::ip::tcp::endpoint &ep)
bool	is_local_socket (boost::asio::ip::tcp::socket &socket)
void	configure (std::string host, unsigned port_nr)
void	connect ()
bool	is_remote_connected ()
connection< tcp4tlm::request_message, tcp4tlm::response_message > &	client_connection (unsigned short retry_count=0)

Protected Attributes
scc::async_queue< timed_task >	task_que
scc::peq< callback_task >	timed_task_que
std::mutex	con_est_mtx
std::condition_variable	con_est_sig
std::atomic< bool >	con_est {false}
sc_core::sc_event	shutdown_evt
rigtorp::SPSCQueue< sc_core::sc_time >	next_time_stamp
unsigned long long	sync
std::shared_ptr< tcp4tlm::response_message >	resp_msg
tlm_utils::tlm_quantumkeeper	quantumkeeper
tlm::scc::tlm_mm< tlm::tlm_base_protocol_types, false >	mm
Protected Attributes inherited from scc::tcp4tlm::client< tcp4tlm::request_message, tcp4tlm::response_message >
std::string	host
unsigned short	port
unsigned short	retry_count
boost::asio::io_context	io_service
connection< tcp4tlm::request_message, tcp4tlm::response_message >::ptr	trace_conn
std::atomic< bool >	is_connected
bool	local_connection

Detailed Description

Bidirectional bridge for tunneling loosely timed TLM traffic over a TCP connection.

The bridge is both a SystemC/TLM component and a TCP endpoint. Its target socket accepts local TLM generic payloads and serializes them into tcp4tlm FlatBuffer messages which are sent to a peer bridge. Conversely, incoming BusOpMsg requests are converted back into TLM generic payloads, scheduled in SystemC time, and forwarded through the initiator socket to the local model.

Two bridge instances form a bidirectional connection. Depending on the is_connection_server parameter, an instance either waits for a peer endpoint notification or actively connects to the configured peer and sends its own listening endpoint via NotifyEndpointMsg. Once connected, the bridge exchanges BusOpMsg, BusDataMsg, response, SyncMsg, SigOpMsg, and NotifyShutdownMsg messages to carry bus accesses, read data, status responses, simulation time synchronization, signal updates, and orderly shutdown.

TLM reads wait for a BusDataMsg response and copy the returned data into the original payload. TLM writes send the payload data and either wait for a status response or complete immediately when write_no_response is enabled. Debug transport is represented as a BusOpMsg with debug access type.

The timing threads coordinate message execution with SystemC simulation time. In simulated-time mode, remote timestamps drive local advancement. In wall-time mode, the bridge can pace simulation against elapsed wall clock time. The no_systemc_sync parameter bypasses timestamp-based task scheduling.

Definition at line 69 of file tcp4tlm_bridge.h.

Member Typedef Documentation

◆ callback_task

using scc::tcp4tlm_bridge::callback_task = std::packaged_task<bool(void)>

protected

Definition at line 127 of file tcp4tlm_bridge.h.

◆ con_ptr

typedef std::shared_ptr<connection_type> scc::tcp4tlm_bridge::con_ptr

Definition at line 97 of file tcp4tlm_bridge.h.

◆ connection_type

typedef tcp4tlm::connection<tcp4tlm::response_message, tcp4tlm::request_message> scc::tcp4tlm_bridge::connection_type

Definition at line 96 of file tcp4tlm_bridge.h.

Constructor & Destructor Documentation

◆ tcp4tlm_bridge()

scc::tcp4tlm_bridge::tcp4tlm_bridge	(	sc_core::sc_module_name	name,
		size_t	no_of_ports = 0 )

Definition at line 40 of file tcp4tlm_bridge.cpp.

◆ ~tcp4tlm_bridge()

scc::tcp4tlm_bridge::~tcp4tlm_bridge ( )

virtual

Definition at line 90 of file tcp4tlm_bridge.cpp.

Member Function Documentation

◆ btransport_cb()

void scc::tcp4tlm_bridge::btransport_cb	(	tlm::tlm_generic_payload &	gp,
		sc_core::sc_time &	delay )

protected

Definition at line 175 of file tcp4tlm_bridge.cpp.

◆ do_access()

void scc::tcp4tlm_bridge::do_access	(	tlm::tlm_generic_payload &	gp,
		sc_core::sc_time &	delay,
		bool	debug = false )

protectedvirtual

Definition at line 177 of file tcp4tlm_bridge.cpp.

◆ end_connection()

void scc::tcp4tlm_bridge::end_connection ( )

inline

Definition at line 200 of file tcp4tlm_bridge.h.

◆ end_of_elaboration()

void scc::tcp4tlm_bridge::end_of_elaboration ( )

overrideprotected

Definition at line 101 of file tcp4tlm_bridge.cpp.

◆ end_of_simulation()

void scc::tcp4tlm_bridge::end_of_simulation ( )

overrideprotected

Definition at line 128 of file tcp4tlm_bridge.cpp.

◆ get_shutdown_event()

sc_core::sc_event const & scc::tcp4tlm_bridge::get_shutdown_event ( ) const

inline

Definition at line 124 of file tcp4tlm_bridge.h.

◆ is_connection_established()

bool scc::tcp4tlm_bridge::is_connection_established ( )

inline

Definition at line 120 of file tcp4tlm_bridge.h.

◆ process_task_que()

void scc::tcp4tlm_bridge::process_task_que ( )

protected

Definition at line 457 of file tcp4tlm_bridge.cpp.

◆ process_timed_task_que()

void scc::tcp4tlm_bridge::process_timed_task_que ( )

protected

Definition at line 473 of file tcp4tlm_bridge.cpp.

◆ server_receive_completed()

void scc::tcp4tlm_bridge::server_receive_completed	(	con_ptr &	con,
		const tcp4tlm::request_message *const	result )

override

Definition at line 343 of file tcp4tlm_bridge.cpp.

◆ server_send_completed()

void scc::tcp4tlm_bridge::server_send_completed	(	con_ptr &	con,
		bool	established = false )

inlineoverride

Definition at line 99 of file tcp4tlm_bridge.h.

◆ start_of_simulation()

void scc::tcp4tlm_bridge::start_of_simulation ( )

overrideprotected

Definition at line 106 of file tcp4tlm_bridge.cpp.

◆ start_server()

void scc::tcp4tlm_bridge::start_server ( )

inline

Definition at line 107 of file tcp4tlm_bridge.h.

◆ timing_thread()

void scc::tcp4tlm_bridge::timing_thread ( )

protected

Definition at line 263 of file tcp4tlm_bridge.cpp.

◆ transport_dbg_cb()

unsigned scc::tcp4tlm_bridge::transport_dbg_cb ( tlm::tlm_generic_payload & gp )

protected

Definition at line 169 of file tcp4tlm_bridge.cpp.

◆ wait4connection()

void scc::tcp4tlm_bridge::wait4connection ( )

inline

Definition at line 112 of file tcp4tlm_bridge.h.

Member Data Documentation

◆ con_est

std::atomic<bool> scc::tcp4tlm_bridge::con_est {false}

protected

Definition at line 136 of file tcp4tlm_bridge.h.

◆ con_est_mtx

std::mutex scc::tcp4tlm_bridge::con_est_mtx

protected

Definition at line 134 of file tcp4tlm_bridge.h.

◆ con_est_sig

std::condition_variable scc::tcp4tlm_bridge::con_est_sig

protected

Definition at line 135 of file tcp4tlm_bridge.h.

◆ is_connection_server

cci::cci_param<bool> scc::tcp4tlm_bridge::is_connection_server {"is_connection_server", false}

this governs the sequence of connection:

if false: it first starts the server, connects to remote and sends a NotifyEndpointMsg
if true: it starts the server, waits for a NotifyEndpointMsg and then connects the client

Definition at line 78 of file tcp4tlm_bridge.h.

◆ isckt

tlm_utils::simple_initiator_socket<tcp4tlm_bridge, ::scc::LT> scc::tcp4tlm_bridge::isckt

Definition at line 88 of file tcp4tlm_bridge.h.

◆ mm

tlm::scc::tlm_mm<tlm::tlm_base_protocol_types, false> scc::tcp4tlm_bridge::mm

protected

Definition at line 151 of file tcp4tlm_bridge.h.

◆ next_time_stamp

rigtorp::SPSCQueue<sc_core::sc_time> scc::tcp4tlm_bridge::next_time_stamp

protected

Definition at line 138 of file tcp4tlm_bridge.h.

◆ no_systemc_sync

cci::cci_param<bool> scc::tcp4tlm_bridge::no_systemc_sync {"no_systemc_sync", false}

Definition at line 84 of file tcp4tlm_bridge.h.

◆ other_host_name

cci::cci_param<std::string> scc::tcp4tlm_bridge::other_host_name {"other_host_name", ""}

Definition at line 79 of file tcp4tlm_bridge.h.

◆ other_host_port

cci::cci_param<unsigned> scc::tcp4tlm_bridge::other_host_port {"other_host_port", 0}

Definition at line 80 of file tcp4tlm_bridge.h.

◆ quantumkeeper

tlm_utils::tlm_quantumkeeper scc::tcp4tlm_bridge::quantumkeeper

protected

Definition at line 150 of file tcp4tlm_bridge.h.

◆ resp_msg

std::shared_ptr<tcp4tlm::response_message> scc::tcp4tlm_bridge::resp_msg

protected

Definition at line 149 of file tcp4tlm_bridge.h.

◆ shutdown_evt

sc_core::sc_event scc::tcp4tlm_bridge::shutdown_evt

protected

Definition at line 137 of file tcp4tlm_bridge.h.

◆ signals

sc_core::sc_vector<sc_core::sc_out<bool> > scc::tcp4tlm_bridge::signals {"signals"}

Definition at line 90 of file tcp4tlm_bridge.h.

◆ sync

unsigned long long scc::tcp4tlm_bridge::sync

protected

Definition at line 139 of file tcp4tlm_bridge.h.

◆ task_que

scc::async_queue<timed_task> scc::tcp4tlm_bridge::task_que

protected

Definition at line 132 of file tcp4tlm_bridge.h.

◆ this_host_port

cci::cci_param<unsigned> scc::tcp4tlm_bridge::this_host_port {"this_host_port", 32000u}

Definition at line 81 of file tcp4tlm_bridge.h.

◆ timed_task_que

scc::peq<callback_task> scc::tcp4tlm_bridge::timed_task_que

protected

Definition at line 133 of file tcp4tlm_bridge.h.

◆ tsckt

tlm_utils::simple_target_socket<tcp4tlm_bridge, ::scc::LT> scc::tcp4tlm_bridge::tsckt

Definition at line 86 of file tcp4tlm_bridge.h.

◆ wall_time_simulation_speed

cci::cci_param<bool> scc::tcp4tlm_bridge::wall_time_simulation_speed {"wall_time_simulation_speed", false}

Definition at line 82 of file tcp4tlm_bridge.h.

◆ write_no_response

cci::cci_param<bool> scc::tcp4tlm_bridge::write_no_response {"write_no_response", false}

Definition at line 83 of file tcp4tlm_bridge.h.

The documentation for this struct was generated from the following files:

/home/eyck/Projects/MINRES/SystemC-Components/src/components/scc/tcp4tlm_bridge.h
/home/eyck/Projects/MINRES/SystemC-Components/src/components/scc/tcp4tlm_bridge.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ callback_task

◆ con_ptr

◆ connection_type

Constructor & Destructor Documentation

◆ tcp4tlm_bridge()

◆ ~tcp4tlm_bridge()

Member Function Documentation

◆ btransport_cb()

◆ do_access()

◆ end_connection()

◆ end_of_elaboration()

◆ end_of_simulation()

◆ get_shutdown_event()

◆ is_connection_established()

◆ process_task_que()

◆ process_timed_task_que()

◆ server_receive_completed()

◆ server_send_completed()

◆ start_of_simulation()

◆ start_server()

◆ timing_thread()

◆ transport_dbg_cb()

◆ wait4connection()

Member Data Documentation

◆ con_est

◆ con_est_mtx

◆ con_est_sig

◆ is_connection_server

◆ isckt

◆ mm

◆ next_time_stamp

◆ no_systemc_sync

◆ other_host_name

◆ other_host_port

◆ quantumkeeper

◆ resp_msg

◆ shutdown_evt

◆ signals

◆ sync

◆ task_que

◆ this_host_port

◆ timed_task_que

◆ tsckt

◆ wall_time_simulation_speed

◆ write_no_response
