a TLM2.0 router for loosly-timed (LT) models More...

#include <router.h>

Inheritance diagram for scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >:

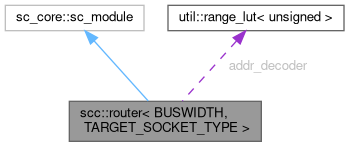

Collaboration diagram for scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >:

[legend]

Classes
struct	range_entry

Public Types
using	intor_sckt = tlm::scc::initiator_mixin<tlm::tlm_initiator_socket<BUSWIDTH>>
using	target_sckt = tlm::scc::target_mixin<TARGET_SOCKET_TYPE>

Public Member Functions
	router (const sc_core::sc_module_name &nm, size_t slave_cnt=1, size_t master_cnt=1, bool check_overlap_on_add_target=false)
	constructs a router
template<typename TYPE>
void	bind_target (TYPE &socket, size_t idx, uint64_t base, uint64_t size, bool remap=true)
	bind the initiator socket of the router to some target giving a base and size
template<typename TYPE>
void	bind_target (TYPE &socket, size_t idx, std::string name)
	bind the initiator socket of the router to some target and name it
void	set_initiator_base (size_t idx, uint64_t base)
	define a base address of a socket
void	set_default_target (size_t idx)
	define the default target socket
void	set_target_name (size_t idx, std::string name)
	establish a mapping between socket name and socket index
void	add_target_range (std::string name, uint64_t base, uint64_t size, bool remap=true)
	establish a mapping between a named socket and a target address range
void	set_target_range (size_t idx, uint64_t base, uint64_t size, bool remap=true)
	establish a mapping between a socket and a target address range
void	set_warn_on_address_error (bool enable)
	enable warning message on address not found error
void	b_transport (int i, tlm::tlm_generic_payload &trans, sc_core::sc_time &delay)
	tagged blocking transport method
bool	get_direct_mem_ptr (int i, tlm::tlm_generic_payload &trans, tlm::tlm_dmi &dmi_data)
	tagged forward DMI method
unsigned	transport_dbg (int i, tlm::tlm_generic_payload &trans)
	tagged debug transaction method
void	invalidate_direct_mem_ptr (int id, ::sc_dt::uint64 start_range, ::sc_dt::uint64 end_range)
	tagged backward DMI method
void	end_of_elaboration () override
	tagged end of elaboration callback.

Public Attributes
sc_core::sc_vector< target_sckt >	target
	the array of target sockets
sc_core::sc_vector< intor_sckt >	initiator
	the array of initiator sockets

Protected Attributes
size_t	default_idx = std::numeric_limits<size_t>::max()
std::vector< uint64_t >	ibases
std::vector< range_entry >	tranges
std::vector< sc_core::sc_mutex >	mutexes
util::range_lut< unsigned >	addr_decoder
std::unordered_map< std::string, size_t >	target_name_lut
bool	check_overlap_on_add_target
bool	warn_on_address_error {false}

Detailed Description

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>
class scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >

a TLM2.0 router for loosly-timed (LT) models

It uses the tlm::scc::scv::tlm_rec_initiator_socket so that incoming and outgoing accesses can be traced using SCV

Template Parameters

BUSWIDTH the width of the bus

Definition at line 41 of file router.h.

Member Typedef Documentation

◆ intor_sckt

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

using scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::intor_sckt = tlm::scc::initiator_mixin<tlm::tlm_initiator_socket<BUSWIDTH>>

Definition at line 42 of file router.h.

◆ target_sckt

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

using scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::target_sckt = tlm::scc::target_mixin<TARGET_SOCKET_TYPE>

Definition at line 43 of file router.h.

Constructor & Destructor Documentation

◆ router()

template<unsigned BUSWIDTH, typename TARGET_SOCKET_TYPE>

scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::router	(	const sc_core::sc_module_name &	nm,
		size_t	slave_cnt = 1,
		size_t	master_cnt = 1,
		bool	check_overlap_on_add_target = false )

constructs a router

Parameters

nm	the component name
slave_cnt	number of slaves to be connected
master_cnt	number of masters to be connected
check_overlap_on_add_target	if true this enables validation of overlaps when adding or setting the target range.

Definition at line 202 of file router.h.

Member Function Documentation

◆ add_target_range()

template<unsigned BUSWIDTH, typename TARGET_SOCKET_TYPE>

void scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::add_target_range	(	std::string	name,
		uint64_t	base,
		uint64_t	size,
		bool	remap = true )

establish a mapping between a named socket and a target address range

Parameters

name
base	base address of the target
size	size of the address range occupied by the target
remap	if true address will be rewritten in accesses to be 0-based at the target

Definition at line 242 of file router.h.

◆ b_transport()

template<unsigned BUSWIDTH, typename TARGET_SOCKET_TYPE>

void scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::b_transport	(	int	i,
		tlm::tlm_generic_payload &	trans,
		sc_core::sc_time &	delay )

tagged blocking transport method

Parameters

i	the tag
trans	the incoming transaction
delay	the annotated delay

Definition at line 265 of file router.h.

◆ bind_target() [1/2]

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

template<typename TYPE>

void scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::bind_target	(	TYPE &	socket,
		size_t	idx,
		std::string	name )

inline

bind the initiator socket of the router to some target and name it

Template Parameters

TYPE	the socket type to bind

Parameters

socket	the target socket to bind
idx	number of the target
name	of the binding

Definition at line 84 of file router.h.

◆ bind_target() [2/2]

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

template<typename TYPE>

void scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::bind_target	(	TYPE &	socket,
		size_t	idx,
		uint64_t	base,
		uint64_t	size,
		bool	remap = true )

inline

bind the initiator socket of the router to some target giving a base and size

Template Parameters

TYPE	the socket type to bind

Parameters

socket	the target socket to bind
idx	number of the target
base	base address of the target
size	size of the address range occupied by the target
remap	if true address will be rewritten in accesses to be 0-based at the target

Definition at line 71 of file router.h.

◆ end_of_elaboration()

template<unsigned BUSWIDTH, typename TARGET_SOCKET_TYPE>

void scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::end_of_elaboration ( )

override

tagged end of elaboration callback.

Definition at line 361 of file router.h.

◆ get_direct_mem_ptr()

template<unsigned BUSWIDTH, typename TARGET_SOCKET_TYPE>

bool scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::get_direct_mem_ptr	(	int	i,
		tlm::tlm_generic_payload &	trans,
		tlm::tlm_dmi &	dmi_data )

tagged forward DMI method

Parameters

i	the tag
trans	the incoming transaction
dmi_data

Returns

Definition at line 292 of file router.h.

◆ invalidate_direct_mem_ptr()

template<unsigned BUSWIDTH, typename TARGET_SOCKET_TYPE>

void scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::invalidate_direct_mem_ptr	(	int	id,
		::sc_dt::uint64	start_range,
		::sc_dt::uint64	end_range )

tagged backward DMI method

Parameters

id	the tag
start_range	address range start address
end_range	address range end address

Definition at line 349 of file router.h.

◆ set_default_target()

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

void scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::set_default_target ( size_t idx )

inline

define the default target socket

If no target address range is hit the access is routed to this socket. If this is not defined a address error response is generated

Parameters

idx	the default target

Definition at line 107 of file router.h.

◆ set_initiator_base()

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

void scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::set_initiator_base	(	size_t	idx,
		uint64_t	base )

inline

define a base address of a socket

This will be added to the address of each access coming thru this socket

Parameters

idx
base

Definition at line 97 of file router.h.

◆ set_target_name()

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

void scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::set_target_name	(	size_t	idx,
		std::string	name )

inline

establish a mapping between socket name and socket index

Parameters

idx	the index of the socket
name	the name of the connection

Definition at line 115 of file router.h.

◆ set_target_range()

template<unsigned BUSWIDTH, typename TARGET_SOCKET_TYPE>

void scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::set_target_range	(	size_t	idx,
		uint64_t	base,
		uint64_t	size,
		bool	remap = true )

establish a mapping between a socket and a target address range

Parameters

idx
base	base address of the target
size	size of the address range occupied by the target
remap	if true address will be rewritten in accesses to be 0-based at the target

Definition at line 232 of file router.h.

◆ set_warn_on_address_error()

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

void scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::set_warn_on_address_error ( bool enable )

inline

enable warning message on address not found error

Parameters

enable if true enable warning message

Definition at line 142 of file router.h.

◆ transport_dbg()

template<unsigned BUSWIDTH, typename TARGET_SOCKET_TYPE>

unsigned scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::transport_dbg	(	int	i,
		tlm::tlm_generic_payload &	trans )

tagged debug transaction method

Parameters

i	the tag
trans	the incoming transaction

Definition at line 324 of file router.h.

Member Data Documentation

◆ addr_decoder

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

util::range_lut<unsigned> scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::addr_decoder

protected

Definition at line 195 of file router.h.

◆ check_overlap_on_add_target

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

bool scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::check_overlap_on_add_target

protected

Definition at line 197 of file router.h.

◆ default_idx

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

size_t scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::default_idx = std::numeric_limits<size_t>::max()

protected

Definition at line 191 of file router.h.

◆ ibases

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

std::vector<uint64_t> scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::ibases

protected

Definition at line 192 of file router.h.

◆ initiator

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

sc_core::sc_vector<intor_sckt> scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::initiator

the array of initiator sockets

Definition at line 47 of file router.h.

◆ mutexes

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

std::vector<sc_core::sc_mutex> scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::mutexes

protected

Definition at line 194 of file router.h.

◆ target

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

sc_core::sc_vector<target_sckt> scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::target

the array of target sockets

Definition at line 45 of file router.h.

◆ target_name_lut

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

std::unordered_map<std::string, size_t> scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::target_name_lut

protected

Definition at line 196 of file router.h.

◆ tranges

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

std::vector<range_entry> scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::tranges

protected

Definition at line 193 of file router.h.

◆ warn_on_address_error

template<unsigned BUSWIDTH = LT, typename TARGET_SOCKET_TYPE = tlm::tlm_target_socket<BUSWIDTH>>

bool scc::router< BUSWIDTH, TARGET_SOCKET_TYPE >::warn_on_address_error {false}

protected

Definition at line 198 of file router.h.

The documentation for this class was generated from the following file:

/home/eyck/Projects/MINRES/SystemC-Components/src/components/scc/router.h

Classes

Public Types

Public Member Functions

Public Attributes

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ intor_sckt

◆ target_sckt

Constructor & Destructor Documentation

◆ router()

Member Function Documentation

◆ add_target_range()

◆ b_transport()

◆ bind_target() [1/2]

◆ bind_target() [2/2]

◆ end_of_elaboration()

◆ get_direct_mem_ptr()

◆ invalidate_direct_mem_ptr()

◆ set_default_target()

◆ set_initiator_base()

◆ set_target_name()

◆ set_target_range()

◆ set_warn_on_address_error()

◆ transport_dbg()

Member Data Documentation

◆ addr_decoder

◆ check_overlap_on_add_target

◆ default_idx

◆ ibases

◆ initiator

◆ mutexes

◆ target

◆ target_name_lut

◆ tranges

◆ warn_on_address_error
