ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH > Struct Template Reference

Inheritance diagram for ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >:

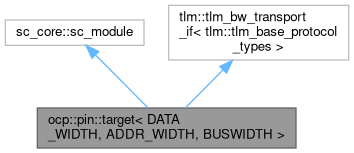

Collaboration diagram for ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >:

Public Types
using	payload_type = tlm::tlm_base_protocol_types::tlm_payload_type
using	phase_type = tlm::tlm_base_protocol_types::tlm_phase_type

Public Member Functions
	SC_HAS_PROCESS (target)
	target (sc_core::sc_module_name const &nm)

Public Attributes
sc_core::sc_in< bool >	clk_i {"clk_i"}
sc_core::sc_in< bool >	reset {""}
sc_core::sc_in< sc_uint< 3 > >	MCmd {"MCmd"}
sc_core::sc_in< sc_uint< ADDR_WIDTH > >	MAddr {"MAddr"}
sc_core::sc_in< sc_uint< DATA_WIDTH > >	MData {"MData"}
sc_core::sc_in< sc_uint< DATA_WIDTH/8 > >	MByteEn {"MByteEn"}
sc_core::sc_out< bool >	SCmdAccept {"SCmdAccept"}
sc_core::sc_out< sc_uint< 2 > >	SResp {"SResp"}
sc_core::sc_out< sc_uint< DATA_WIDTH > >	SData {"SData"}
sc_core::sc_in< bool >	MRespAccept {"MRespAccept"}
tlm::tlm_initiator_socket< BUSWIDTH >	isckt {"isckt"}

Detailed Description

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>
struct ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >

Definition at line 37 of file target.h.

Member Typedef Documentation

payload_type

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

using ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::payload_type = tlm::tlm_base_protocol_types::tlm_payload_type

Definition at line 40 of file target.h.

phase_type

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

using ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::phase_type = tlm::tlm_base_protocol_types::tlm_phase_type

Definition at line 41 of file target.h.

Constructor & Destructor Documentation

target()

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::target ( sc_core::sc_module_name const & nm )

inline

Definition at line 58 of file target.h.

Member Data Documentation

clk_i

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

sc_core::sc_in<bool> ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::clk_i {"clk_i"}

Definition at line 43 of file target.h.

isckt

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

tlm::tlm_initiator_socket<BUSWIDTH> ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::isckt {"isckt"}

Definition at line 56 of file target.h.

MAddr

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

sc_core::sc_in<sc_uint<ADDR_WIDTH> > ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::MAddr {"MAddr"}

Definition at line 47 of file target.h.

MByteEn

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

sc_core::sc_in<sc_uint<DATA_WIDTH / 8> > ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::MByteEn {"MByteEn"}

Definition at line 49 of file target.h.

MCmd

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

sc_core::sc_in<sc_uint<3> > ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::MCmd {"MCmd"}

Definition at line 46 of file target.h.

MData

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

sc_core::sc_in<sc_uint<DATA_WIDTH> > ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::MData {"MData"}

Definition at line 48 of file target.h.

MRespAccept

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

sc_core::sc_in<bool> ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::MRespAccept {"MRespAccept"}

Definition at line 54 of file target.h.

reset

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

sc_core::sc_in<bool> ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::reset {""}

Definition at line 44 of file target.h.

SCmdAccept

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

sc_core::sc_out<bool> ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::SCmdAccept {"SCmdAccept"}

Definition at line 50 of file target.h.

SData

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

sc_core::sc_out<sc_uint<DATA_WIDTH> > ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::SData {"SData"}

Definition at line 53 of file target.h.

SResp

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH, unsigned BUSWIDTH = DATA_WIDTH>

sc_core::sc_out<sc_uint<2> > ocp::pin::target< DATA_WIDTH, ADDR_WIDTH, BUSWIDTH >::SResp {"SResp"}

Definition at line 52 of file target.h.

---

The documentation for this struct was generated from the following file:

• /home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/ocp/pin/target.h
