tlm::scc::tlm_mm_t< TYPES, CLEANUP_DATA, BASE > Class Template Reference

a tlm payload memory manager More...

#include <tlm_mm.h>

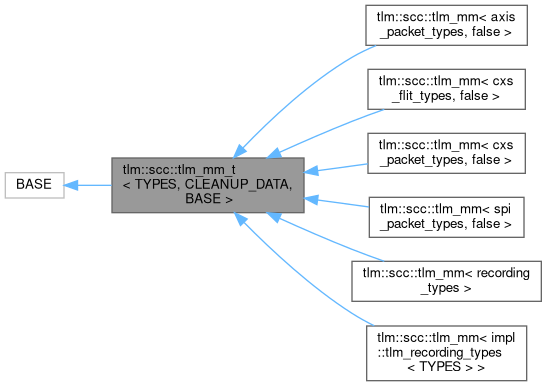

Inheritance diagram for tlm::scc::tlm_mm_t< TYPES, CLEANUP_DATA, BASE >:

Collaboration diagram for tlm::scc::tlm_mm_t< TYPES, CLEANUP_DATA, BASE >:

Public Member Functions
	tlm_mm_t (const tlm_mm_t &)=delete
	tlm_mm_t (tlm_mm_t &&)=delete
tlm_mm_t &	operator= (const tlm_mm_t &other)=delete
tlm_mm_t &	operator= (tlm_mm_t &&other)=delete
payload_type *	allocate ()
	get a plain tlm_payload_type without extensions
template<typename PEXT>
payload_type *	allocate ()
	get a tlm_payload_type with registered extension
void	free (payload_base *trans)
	return the extension into the memory pool (removing the extensions)

Detailed Description

template<typename TYPES, bool CLEANUP_DATA, typename BASE>
class tlm::scc::tlm_mm_t< TYPES, CLEANUP_DATA, BASE >

a tlm payload memory manager

This memory manager can be used as singleton or as local memory manager. It uses the pool_allocator as singleton to maximize reuse

Definition at line 196 of file tlm_mm.h.

Constructor & Destructor Documentation

tlm_mm_t()

template<typename TYPES, bool CLEANUP_DATA, typename BASE>

tlm::scc::tlm_mm_t< TYPES, CLEANUP_DATA, BASE >::tlm_mm_t ( )

inline

Definition at line 202 of file tlm_mm.h.

Member Function Documentation

allocate() [1/2]

template<typename TYPES, bool CLEANUP_DATA, typename BASE>

template<typename PEXT>

payload_type * tlm::scc::tlm_mm_t< TYPES, CLEANUP_DATA, BASE >::allocate ( )

inline

get a tlm_payload_type with registered extension

Returns

the tlm_payload_type

Definition at line 226 of file tlm_mm.h.

allocate() [2/2]

template<typename TYPES, bool CLEANUP_DATA, typename BASE>

payload_type * tlm::scc::tlm_mm_t< TYPES, CLEANUP_DATA, BASE >::allocate ( )

inline

get a plain tlm_payload_type without extensions

Returns

the tlm_payload_type

Definition at line 218 of file tlm_mm.h.

free()

template<typename TYPES, bool CLEANUP_DATA, typename BASE>

void tlm::scc::tlm_mm_t< TYPES, CLEANUP_DATA, BASE >::free ( payload_base * trans )

inline

return the extension into the memory pool (removing the extensions)

Parameters

trans

the returning transaction

Definition at line 235 of file tlm_mm.h.

---

The documentation for this class was generated from the following file:

• /home/eyck/Projects/MINRES/SystemC-Components/src/sysc/tlm/scc/tlm_mm.h
