a simple register implementation More...

#include <register.h>

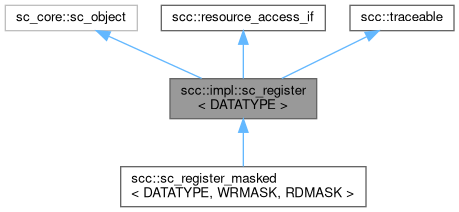

Inheritance diagram for scc::impl::sc_register< DATATYPE >:

[legend]

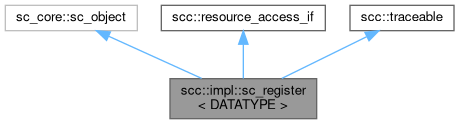

Collaboration diagram for scc::impl::sc_register< DATATYPE >:

[legend]

Public Types
using	this_type = sc_register<DATATYPE>

Public Member Functions
	sc_register (sc_core::sc_module_name nm, DATATYPE &storage, const DATATYPE reset_val, resetable &owner, DATATYPE rdmask=get_max_uval< DATATYPE >(), DATATYPE wrmask=get_max_uval< DATATYPE >())
	the constructor
	~sc_register ()=default
	desctructor
bool	is_trace_enabled () const override
	returns of this component shall be traced
size_t	size () const override
	get the size of this register in bytes
void	reset () override
	reset the register
bool	write (const uint8_t *data, size_t length, uint64_t offset, sc_core::sc_time &d) override
	write function from resource_access_if
bool	read (uint8_t *data, size_t length, uint64_t offset, sc_core::sc_time &d) const override
	read function from resource_access_if
bool	write_dbg (const uint8_t *data, size_t length, uint64_t offset=0) override
	debug write function from resource_access_if
bool	read_dbg (uint8_t *data, size_t length, uint64_t offset=0) const override
	debug read function from resource_access_if
	operator DATATYPE () const
	cast operator to get underlying storage
DATATYPE	get () const
	get the underlying storage
void	put (DATATYPE data) const
	write to the underlying storage
this_type &	operator= (DATATYPE other)
	assignment operator
this_type &	operator\|= (DATATYPE other)
	unary or
this_type &	operator&= (DATATYPE other)
	unary and
void	set_read_cb (std::function< bool(const this_type &, DATATYPE &)> read_cb)
	set the read callback
void	set_read_cb (std::function< bool(const this_type &, DATATYPE &, sc_core::sc_time &)> read_cb)
	set the read callback
void	set_write_cb (std::function< bool(this_type &, const DATATYPE &)> write_cb)
	set the write callback
void	set_write_cb (std::function< bool(this_type &, const DATATYPE &, sc_core::sc_time &)> write_cb)
	set the write callback triggered upon a write request
void	trace (sc_core::sc_trace_file *trf) const override
	trace the register value to the given trace file
Public Member Functions inherited from scc::resource_access_if
virtual bool	write (const uint8_t *data, std::size_t length, uint64_t offset, sc_core::sc_time &d)=0
bool	write (const uint8_t *data, std::size_t length, uint64_t offset=0)
virtual bool	read (uint8_t *data, std::size_t length, uint64_t offset, sc_core::sc_time &d) const =0
bool	read (uint8_t *data, std::size_t length, uint64_t offset=0) const
virtual bool	write_dbg (const uint8_t *data, std::size_t length, uint64_t offset=0)=0
	debug write to the resource
virtual bool	read_dbg (uint8_t *data, std::size_t length, uint64_t offset=0) const =0
	debug read the data from the resource

Public Attributes
cci::cci_param< bool >	enable_tracing
const DATATYPE	res_val
	the reset value
const DATATYPE	rdmask
	the SW read mask
const DATATYPE	wrmask
	the SW write mask

Detailed Description

template<typename DATATYPE>
class scc::impl::sc_register< DATATYPE >

a simple register implementation

A simple register implementation taking a certain data type. The sc_register does not hold the value itself, the data storage needs to be provided. It only provides some resource access interface and handled callbacks for read and write accesses

Template Parameters

DATATYPE

Definition at line 77 of file register.h.

Member Typedef Documentation

◆ this_type

template<typename DATATYPE>

using scc::impl::sc_register< DATATYPE >::this_type = sc_register<DATATYPE>

Definition at line 79 of file register.h.

Constructor & Destructor Documentation

◆ sc_register()

template<typename DATATYPE>

scc::impl::sc_register< DATATYPE >::sc_register	(	sc_core::sc_module_name	nm,
		DATATYPE &	storage,
		const DATATYPE	reset_val,
		resetable &	owner,
		DATATYPE	rdmask = get_max_uval<DATATYPE>(),
		DATATYPE	wrmask = get_max_uval<DATATYPE>() )

inline

the constructor

Parameters

nm	the instance name
storage	the storage data structure
reset_val	the reset value
owner	the owning object which needs to implement the resettable interface
rdmask	the SW read mask
wrmask	the SW write mask

Definition at line 94 of file register.h.

Member Function Documentation

◆ get()

template<typename DATATYPE>

DATATYPE scc::impl::sc_register< DATATYPE >::get ( ) const

inline

get the underlying storage

Returns

Definition at line 230 of file register.h.

◆ is_trace_enabled()

template<typename DATATYPE>

bool scc::impl::sc_register< DATATYPE >::is_trace_enabled ( ) const

inlineoverridevirtual

returns of this component shall be traced

Returns: true if this component shall be traced

Reimplemented from scc::traceable.

Definition at line 117 of file register.h.

◆ operator DATATYPE()

template<typename DATATYPE>

scc::impl::sc_register< DATATYPE >::operator DATATYPE ( ) const

inline

cast operator to get underlying storage

Definition at line 223 of file register.h.

◆ operator&=()

template<typename DATATYPE>

this_type & scc::impl::sc_register< DATATYPE >::operator&= ( DATATYPE other )

inline

unary and

Parameters

other the other value

Returns: reference to this

Definition at line 265 of file register.h.

◆ operator=()

template<typename DATATYPE>

this_type & scc::impl::sc_register< DATATYPE >::operator= ( DATATYPE other )

inline

assignment operator

Parameters

other the new value

Returns: reference to this

Definition at line 245 of file register.h.

◆ operator|=()

template<typename DATATYPE>

this_type & scc::impl::sc_register< DATATYPE >::operator|= ( DATATYPE other )

inline

unary or

Parameters

other the other value

Returns: reference to this

Definition at line 255 of file register.h.

◆ put()

template<typename DATATYPE>

void scc::impl::sc_register< DATATYPE >::put ( DATATYPE data ) const

inline

write to the underlying storage

Parameters

data	the new value

Definition at line 237 of file register.h.

◆ read()

template<typename DATATYPE>

bool scc::impl::sc_register< DATATYPE >::read	(	uint8_t *	data,
		size_t	length,
		uint64_t	offset,
		sc_core::sc_time &	d ) const

inlineoverride

read function from resource_access_if

Parameters

data	to be read
length	of data to be written in bytes
offset	of the write to the baseaddress of the register
d	offset of the time in a time domain wrt. the SystemC simulator time (e.g. when using loosly-timed modeling)

Returns: true if access is successful

Definition at line 170 of file register.h.

◆ read_dbg()

template<typename DATATYPE>

bool scc::impl::sc_register< DATATYPE >::read_dbg	(	uint8_t *	data,
		size_t	length,
		uint64_t	offset = 0 ) const

inlineoverride

debug read function from resource_access_if

This access should not cause any side effect!

Parameters

data	to be read
length	of data to be written in bytes
offset	of the write to the baseaddress of the register

Returns: true if access is successful

Definition at line 211 of file register.h.

◆ reset()

template<typename DATATYPE>

void scc::impl::sc_register< DATATYPE >::reset ( )

inlineoverridevirtual

reset the register

Implements scc::resource_access_if.

Definition at line 130 of file register.h.

◆ set_read_cb() [1/2]

template<typename DATATYPE>

void scc::impl::sc_register< DATATYPE >::set_read_cb ( std::function< bool(const this_type &, DATATYPE &)> read_cb )

inline

set the read callback

The read callback is triggered upon a read request without forwarding the annotated time this is primary for backward compatibility

Parameters

read_cb the callback functor

Definition at line 277 of file register.h.

◆ set_read_cb() [2/2]

template<typename DATATYPE>

void scc::impl::sc_register< DATATYPE >::set_read_cb ( std::function< bool(const this_type &, DATATYPE &, sc_core::sc_time &)> read_cb )

inline

set the read callback

The read callback functor triggered upon a read request.

Parameters

read_cb the callback functor

Definition at line 287 of file register.h.

◆ set_write_cb() [1/2]

template<typename DATATYPE>

void scc::impl::sc_register< DATATYPE >::set_write_cb ( std::function< bool(this_type &, const DATATYPE &)> write_cb )

inline

set the write callback

The write callback functor is triggered upon a write request without forwarding the annotated time this is primary for backward compatibility

Parameters

write_cb the callback functor

Definition at line 296 of file register.h.

◆ set_write_cb() [2/2]

template<typename DATATYPE>

void scc::impl::sc_register< DATATYPE >::set_write_cb ( std::function< bool(this_type &, const DATATYPE &, sc_core::sc_time &)> write_cb )

inline

set the write callback triggered upon a write request

The write callback functor is triggered upon a write request.

Parameters

write_cb the callback functor

Definition at line 306 of file register.h.

◆ size()

template<typename DATATYPE>

size_t scc::impl::sc_register< DATATYPE >::size ( ) const

inlineoverridevirtual

get the size of this register in bytes

Returns

Implements scc::resource_access_if.

Definition at line 124 of file register.h.

◆ trace()

template<typename DATATYPE>

void scc::impl::sc_register< DATATYPE >::trace ( sc_core::sc_trace_file * trf ) const

inlineoverride

trace the register value to the given trace file

Parameters

trf	the trace file

Definition at line 313 of file register.h.

◆ write()

template<typename DATATYPE>

bool scc::impl::sc_register< DATATYPE >::write	(	const uint8_t *	data,
		size_t	length,
		uint64_t	offset,
		sc_core::sc_time &	d )

inlineoverride

write function from resource_access_if

Parameters

data	to be written
length	of data to be written in bytes
offset	of the write to the baseaddress of the register
d	offset of the time in a time domain wrt. the SystemC simulator time (e.g. when using loosly-timed modeling)

Returns: true if access is successful

Definition at line 149 of file register.h.

◆ write_dbg()

template<typename DATATYPE>

bool scc::impl::sc_register< DATATYPE >::write_dbg	(	const uint8_t *	data,
		size_t	length,
		uint64_t	offset = 0 )

inlineoverride

debug write function from resource_access_if

This access should not cause any side effect!

Parameters

data	to be written
length	of data to be written in bytes
offset	of the write to the baseaddress of the register

Returns: true if access is successful

Definition at line 193 of file register.h.

Member Data Documentation

◆ enable_tracing

template<typename DATATYPE>

cci::cci_param<bool> scc::impl::sc_register< DATATYPE >::enable_tracing

Definition at line 81 of file register.h.

◆ rdmask

template<typename DATATYPE>

const DATATYPE scc::impl::sc_register< DATATYPE >::rdmask

the SW read mask

Definition at line 317 of file register.h.

◆ res_val

template<typename DATATYPE>

const DATATYPE scc::impl::sc_register< DATATYPE >::res_val

the reset value

Definition at line 315 of file register.h.

◆ wrmask

template<typename DATATYPE>

const DATATYPE scc::impl::sc_register< DATATYPE >::wrmask

the SW write mask

Definition at line 319 of file register.h.
