Register that can contain bitfields. More...

#include <tlm_target_bfs_register_base.h>

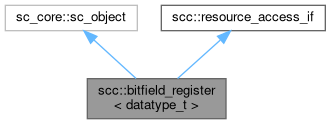

Inheritance diagram for scc::bitfield_register< datatype_t >:

[legend]

Collaboration diagram for scc::bitfield_register< datatype_t >:

[legend]

Public Member Functions
	bitfield_register (sc_core::sc_module_name name, size_t offset, datatype_t resetValue=0, datatype_t writeMask=-1, datatype_t readMask=-1)
constexpr size_t	size () const noexcept override
void	reset () override
	reset the resource
bool	write (const uint8_t *data, std::size_t length, uint64_t offset, sc_core::sc_time &d) override
bool	read (uint8_t *data, std::size_t length, uint64_t offset, sc_core::sc_time &d) const override
bool	write_dbg (const uint8_t *data, std::size_t length, uint64_t offset=0) override
	debug write to the resource
bool	read_dbg (uint8_t *data, std::size_t length, uint64_t offset=0) const override
	debug read the data from the resource
constexpr datatype_t	get () const
void	put (datatype_t value)
void	registerBitfield (abstract_bitfield< datatype_t > &bitfield)
constexpr	operator datatype_t () const
bitfield_register< datatype_t > &	operator= (datatype_t other)
void	setWriteCallback (std::function< void(bitfield_register< datatype_t > &, datatype_t &valueToWrite)> callback)
void	setReadCallback (std::function< void(const bitfield_register< datatype_t > &, datatype_t &result)> callback)
Public Member Functions inherited from scc::resource_access_if
bool	write (const uint8_t *data, std::size_t length, uint64_t offset=0)
bool	read (uint8_t *data, std::size_t length, uint64_t offset=0) const

Public Attributes
const size_t	offset

Protected Attributes
const datatype_t	resetValue
const datatype_t	writeMask
const datatype_t	readMask
datatype_t	storage
std::function< void(bitfield_register< datatype_t > &, datatype_t &)>	writeCallback
std::function< void(const bitfield_register< datatype_t > &, datatype_t &)>	readCallback
std::vector< std::reference_wrapper< abstract_bitfield< datatype_t > > >	bitfields

Detailed Description

template<typename datatype_t>
class scc::bitfield_register< datatype_t >

Register that can contain bitfields.

Template Parameters

datatype_t Datatype of the register value

Definition at line 86 of file tlm_target_bfs_register_base.h.

Constructor & Destructor Documentation

◆ bitfield_register()

template<typename datatype_t>

scc::bitfield_register< datatype_t >::bitfield_register	(	sc_core::sc_module_name	name,
		size_t	offset,
		datatype_t	resetValue = 0,
		datatype_t	writeMask = -1,
		datatype_t	readMask = -1 )

inline

Parameters

name	The name of this register
offset	Offset of the peripheral base address this register is mapped
resetValue	This value gets written to the register on a reset condition
writeMask	Only bits that are set get overwritten on a write access. Cleared bits are left unchanged. This field has priority over the individual bitfields or the write callback.
readMask	Bits that are cleared in this field always read as 0. Can be overridden in bitfields or the read callback.

Definition at line 99 of file tlm_target_bfs_register_base.h.

Member Function Documentation

◆ get()

template<typename datatype_t>

datatype_t scc::bitfield_register< datatype_t >::get ( ) const

inlineconstexpr

Returns: the data stored in this register

Definition at line 170 of file tlm_target_bfs_register_base.h.

◆ operator datatype_t()

template<typename datatype_t>

scc::bitfield_register< datatype_t >::operator datatype_t ( ) const

inlineconstexpr

Convenience function to access the stored data

Definition at line 181 of file tlm_target_bfs_register_base.h.

◆ operator=()

template<typename datatype_t>

bitfield_register< datatype_t > & scc::bitfield_register< datatype_t >::operator= ( datatype_t other )

inline

Convenience function to update the stored data

Definition at line 185 of file tlm_target_bfs_register_base.h.

◆ put()

template<typename datatype_t>

void scc::bitfield_register< datatype_t >::put ( datatype_t value )

inline

Updates the stored data with value

Definition at line 174 of file tlm_target_bfs_register_base.h.

◆ read()

template<typename datatype_t>

bool scc::bitfield_register< datatype_t >::read	(	uint8_t *	data,
		std::size_t	length,
		uint64_t	offset,
		sc_core::sc_time &	d ) const

inlineoverridevirtual

Implements scc::resource_access_if.

Definition at line 132 of file tlm_target_bfs_register_base.h.

◆ read_dbg()

template<typename datatype_t>

bool scc::bitfield_register< datatype_t >::read_dbg	(	uint8_t *	data,
		std::size_t	length,
		uint64_t	offset = 0 ) const

inlineoverridevirtual

debug read the data from the resource

Parameters

data	buffer to read the data into
length	length of data to read
offset	offset of the data to read

Returns: true it the access is successful

Implements scc::resource_access_if.

Definition at line 158 of file tlm_target_bfs_register_base.h.

◆ registerBitfield()

template<typename datatype_t>

void scc::bitfield_register< datatype_t >::registerBitfield ( abstract_bitfield< datatype_t > & bitfield )

inline

Definition at line 176 of file tlm_target_bfs_register_base.h.

◆ reset()

template<typename datatype_t>

void scc::bitfield_register< datatype_t >::reset ( )

inlineoverridevirtual

reset the resource

Implements scc::resource_access_if.

Definition at line 112 of file tlm_target_bfs_register_base.h.

◆ setReadCallback()

template<typename datatype_t>

void scc::bitfield_register< datatype_t >::setReadCallback ( std::function< void(const bitfield_register< datatype_t > &, datatype_t &result)> callback )

inline

Register a callback that gets called on read. Overwrites previously stored callbacks. Signature: void onRead(const bitfield_register<datatype_t>& reg, datatype_t& result)

Callback is called after the individual bitfields.

Definition at line 211 of file tlm_target_bfs_register_base.h.

◆ setWriteCallback()

template<typename datatype_t>

void scc::bitfield_register< datatype_t >::setWriteCallback ( std::function< void(bitfield_register< datatype_t > &, datatype_t &valueToWrite)> callback )

inline

Register a callback that is called on write. Overwrites previously stored callbacks. Signature: void onWrite(bitfield_register<datatype_t>& reg, datatype_t& valueToWrite)

Callback is called after the individual bitfields.

If you want to change the value that gets written to the register change the value of the parameter valueToWrite. Direct writes to the register do not work.

Definition at line 201 of file tlm_target_bfs_register_base.h.
