apb::pe::apb_target_b Class Reference

#include <apb_target.h>

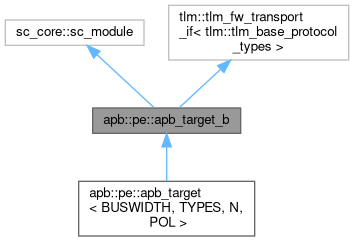

Inheritance diagram for apb::pe::apb_target_b:

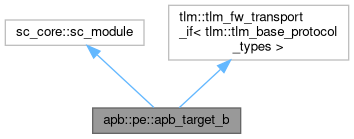

Collaboration diagram for apb::pe::apb_target_b:

Public Types
using	payload_type = tlm::tlm_base_protocol_types::tlm_payload_type
using	phase_type = tlm::tlm_base_protocol_types::tlm_phase_type

Public Member Functions
	SC_HAS_PROCESS (apb_target_b)
void	b_transport (payload_type &trans, sc_core::sc_time &t) override
tlm::tlm_sync_enum	nb_transport_fw (payload_type &trans, phase_type &phase, sc_core::sc_time &t) override
bool	get_direct_mem_ptr (payload_type &trans, tlm::tlm_dmi &dmi_data) override
unsigned int	transport_dbg (payload_type &trans) override
void	set_operation_cb (std::function< unsigned(payload_type &trans)> cb)
	Set the operation callback function.

Public Attributes
sc_core::sc_in< bool >	clk_i {"clk_i"}

Protected Member Functions
	apb_target_b (const sc_core::sc_module_name &nm, sc_core::sc_port_b< tlm::tlm_bw_transport_if< tlm::tlm_base_protocol_types > > &port, size_t transfer_width)
	apb_target_b (apb_target_b const &)=delete
	apb_target_b (apb_target_b &&)=delete
apb_target_b &	operator= (apb_target_b const &)=delete
apb_target_b &	operator= (apb_target_b &&)=delete
void	response ()
void	end_of_elaboration () override

Protected Attributes
tlm::tlm_generic_payload *	active_tx {nullptr}
sc_core::sc_port_b< tlm::tlm_bw_transport_if< tlm::tlm_base_protocol_types > > &	socket_bw
std::function< unsigned(payload_type &trans)>	operation_cb
sc_core::sc_clock *	clk_if {nullptr}
sc_core::sc_process_handle	mhndl

Detailed Description

the target protocol engine base class

Definition at line 31 of file apb_target.h.

Member Typedef Documentation

payload_type

using apb::pe::apb_target_b::payload_type = tlm::tlm_base_protocol_types::tlm_payload_type

Definition at line 36 of file apb_target.h.

phase_type

using apb::pe::apb_target_b::phase_type = tlm::tlm_base_protocol_types::tlm_phase_type

Definition at line 37 of file apb_target.h.

Constructor & Destructor Documentation

apb_target_b()

apb::pe::apb_target_b::apb_target_b ( const sc_core::sc_module_name & nm, sc_core::sc_port_b< tlm::tlm_bw_transport_if< tlm::tlm_base_protocol_types > > & port, size_t transfer_width )

explicitprotected

the constructor. Protected as it should only be called by derived classes

Parameters

nm	the module name
port
transfer_width

Member Function Documentation

b_transport()

void apb_target_b::b_transport ( payload_type & trans, sc_core::sc_time & t )

override

Definition at line 42 of file apb_target.cpp.

end_of_elaboration()

void apb_target_b::end_of_elaboration ( )

overrideprotected

Definition at line 40 of file apb_target.cpp.

get_direct_mem_ptr()

bool apb_target_b::get_direct_mem_ptr ( payload_type & trans, tlm::tlm_dmi & dmi_data )

override

Definition at line 76 of file apb_target.cpp.

nb_transport_fw()

tlm_sync_enum apb_target_b::nb_transport_fw ( payload_type & trans, phase_type & phase, sc_core::sc_time & t )

override

Definition at line 53 of file apb_target.cpp.

response()

void apb_target_b::response ( )

protected

Definition at line 83 of file apb_target.cpp.

set_operation_cb()

void apb::pe::apb_target_b::set_operation_cb ( std::function< unsigned(payload_type &trans)> cb )

inline

Set the operation callback function.

This callback is invoked once a transaction arrives. This function is not allowed to block and returns the latency of the operation i.e. the duration until the reponse phase starts

Todo

refine API

Parameters

cb	the callback function

Definition at line 58 of file apb_target.h.

transport_dbg()

unsigned int apb_target_b::transport_dbg ( payload_type & trans )

override

Definition at line 81 of file apb_target.cpp.

Member Data Documentation

active_tx

tlm::tlm_generic_payload* apb::pe::apb_target_b::active_tx {nullptr}

protected

Definition at line 81 of file apb_target.h.

clk_i

sc_core::sc_in<bool> apb::pe::apb_target_b::clk_i {"clk_i"}

Definition at line 39 of file apb_target.h.

clk_if

sc_core::sc_clock* apb::pe::apb_target_b::clk_if {nullptr}

protected

Definition at line 85 of file apb_target.h.

mhndl

sc_core::sc_process_handle apb::pe::apb_target_b::mhndl

protected

Definition at line 87 of file apb_target.h.

operation_cb

std::function<unsigned(payload_type& trans)> apb::pe::apb_target_b::operation_cb

protected

Definition at line 84 of file apb_target.h.

socket_bw

sc_core::sc_port_b<tlm::tlm_bw_transport_if<tlm::tlm_base_protocol_types> >& apb::pe::apb_target_b::socket_bw

protected

Definition at line 83 of file apb_target.h.

---

The documentation for this class was generated from the following files:

• /home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/apb/pe/apb_target.h
• /home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/apb/pe/apb_target.cpp
