ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH > Class Template Reference

Inheritance diagram for ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >:

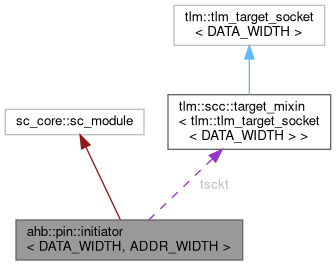

Collaboration diagram for ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >:

Public Member Functions
	initiator (const sc_core::sc_module_name &nm)

Public Attributes
sc_core::sc_in< bool >	HCLK_i {"HCLK_i"}
sc_core::sc_in< bool >	HRESETn_i {"HRESETn_i"}
sc_core::sc_out< addr_t >	HADDR_o {"HADDR_o"}
sc_core::sc_out< sc_dt::sc_uint< 3 > >	HBURST_o {"HBURST_o"}
sc_core::sc_out< bool >	HMASTLOCK_o {"HMASTLOCK_o"}
sc_core::sc_out< sc_dt::sc_uint< 4 > >	HPROT_o {"HPROT_o"}
sc_core::sc_out< sc_dt::sc_uint< 3 > >	HSIZE_o {"HSIZE_o"}
sc_core::sc_out< sc_dt::sc_uint< 2 > >	HTRANS_o {"HTRANS_o"}
sc_core::sc_out< data_t >	HWDATA_o {"HWDATA_o"}
sc_core::sc_out< bool >	HWRITE_o {"HWRITE_o"}
sc_core::sc_in< data_t >	HRDATA_i {"HRDATA_i"}
sc_core::sc_in< bool >	HREADY_i {"HREADY_i"}
sc_core::sc_in< bool >	HRESP_i {"HRESP_i"}
tlm::scc::target_mixin< tlm::tlm_target_socket< DATA_WIDTH > >	tsckt {"tsckt"}

Detailed Description

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>
class ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >

Definition at line 35 of file initiator.h.

Constructor & Destructor Documentation

initiator()

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH>

ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::initiator

(

const sc_core::sc_module_name &

nm

)

Definition at line 77 of file initiator.h.

Member Data Documentation

HADDR_o

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_out<addr_t> ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HADDR_o {"HADDR_o"}

Definition at line 43 of file initiator.h.

HBURST_o

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_out<sc_dt::sc_uint<3> > ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HBURST_o {"HBURST_o"}

Definition at line 44 of file initiator.h.

HCLK_i

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_in<bool> ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HCLK_i {"HCLK_i"}

Definition at line 41 of file initiator.h.

HMASTLOCK_o

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_out<bool> ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HMASTLOCK_o {"HMASTLOCK_o"}

Definition at line 45 of file initiator.h.

HPROT_o

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_out<sc_dt::sc_uint<4> > ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HPROT_o {"HPROT_o"}

Definition at line 46 of file initiator.h.

HRDATA_i

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_in<data_t> ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HRDATA_i {"HRDATA_i"}

Definition at line 51 of file initiator.h.

HREADY_i

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_in<bool> ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HREADY_i {"HREADY_i"}

Definition at line 52 of file initiator.h.

HRESETn_i

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_in<bool> ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HRESETn_i {"HRESETn_i"}

Definition at line 42 of file initiator.h.

HRESP_i

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_in<bool> ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HRESP_i {"HRESP_i"}

Definition at line 53 of file initiator.h.

HSIZE_o

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_out<sc_dt::sc_uint<3> > ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HSIZE_o {"HSIZE_o"}

Definition at line 47 of file initiator.h.

HTRANS_o

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_out<sc_dt::sc_uint<2> > ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HTRANS_o {"HTRANS_o"}

Definition at line 48 of file initiator.h.

HWDATA_o

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_out<data_t> ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HWDATA_o {"HWDATA_o"}

Definition at line 49 of file initiator.h.

HWRITE_o

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

sc_core::sc_out<bool> ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::HWRITE_o {"HWRITE_o"}

Definition at line 50 of file initiator.h.

tsckt

template<unsigned DATA_WIDTH, unsigned ADDR_WIDTH = 32>

tlm::scc::target_mixin<tlm::tlm_target_socket<DATA_WIDTH> > ahb::pin::initiator< DATA_WIDTH, ADDR_WIDTH >::tsckt {"tsckt"}

Definition at line 55 of file initiator.h.

---

The documentation for this class was generated from the following file:

• /home/eyck/Projects/MINRES/SystemC-Components/src/interfaces/ahb/pin/initiator.h
